Check Accelerator Pedal Sensor Area (Method With Circuit Tester)

Measure the voltage between ECM connector terminals.

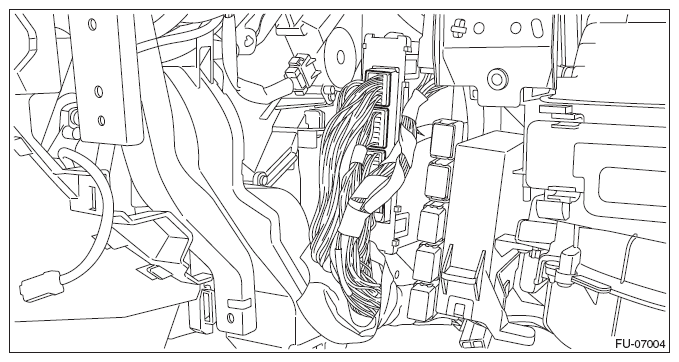

Fig 1: Identifying ECM Harness Connectors

Courtesy of SUBARU OF AMERICA, INC.

Main sensor side

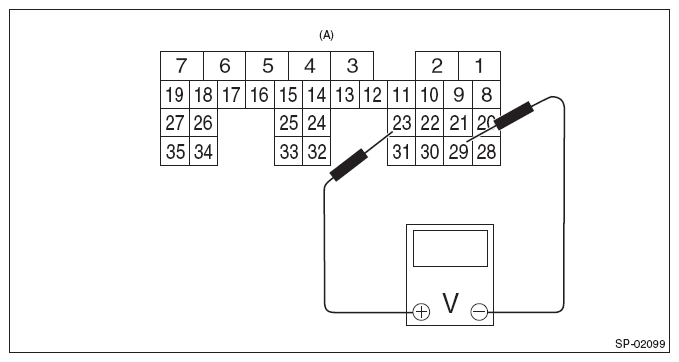

Fig 2: Measuring Voltage Between ECM Connector Terminals (Main Sensor Side)

Courtesy of SUBARU OF AMERICA, INC.

Sub sensor side

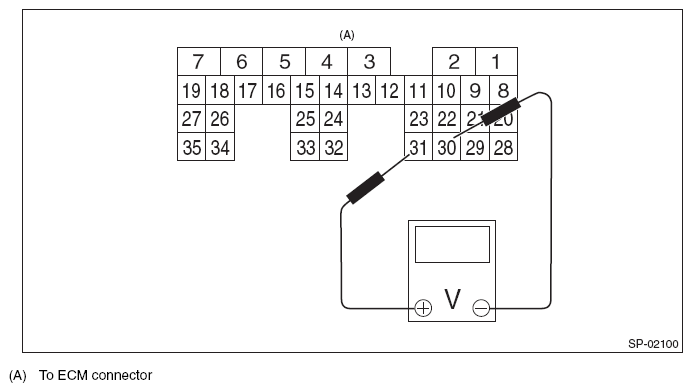

Fig 3: Measuring Voltage Between ECM Connector Terminals (Sub Sensor Side)

Courtesy of SUBARU OF AMERICA, INC.

Accelerator pedal sensor	Accelerator pedal	Terminal No.	Standard
Main	Not depressed (Full closed)	23 (+) and 29 (-)	0.4 - 1.0 V
Main	Depressed (Full opened)	23 (+) and 29 (-)	2.4 - 3.7 V
Sub	Not depressed (Full closed)	31 (+) and 30 (-)	0.3 - 1.1 V
Sub	Depressed (Full opened)	31 (+) and 30 (-)	2.3 - 3.8 V

After inspection, install the related parts in the reverse order of removal.
Tightening torque:

7.5 N.m (0.8 kgf-m, 5.5 ft-lb)
