Diagnostic procedure

  1. Drive according to the drive pattern described below.

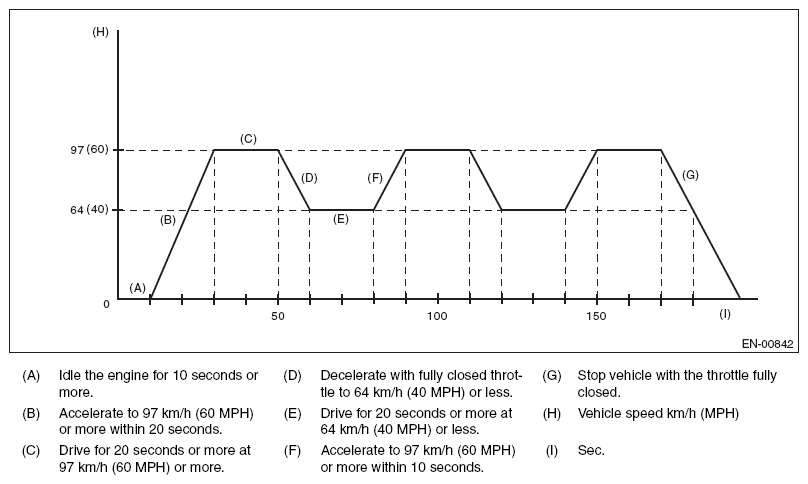

    Fig 1: Driving Pattern
    G08580653Courtesy of SUBARU OF AMERICA, INC.
  2. Read the temporary code using the Subaru Select Monitor or general scan tool. Refer to OPERATION .
