Engine Controls (Diagnostics) (H4DO): Electrical Component Location: Location: Sensor

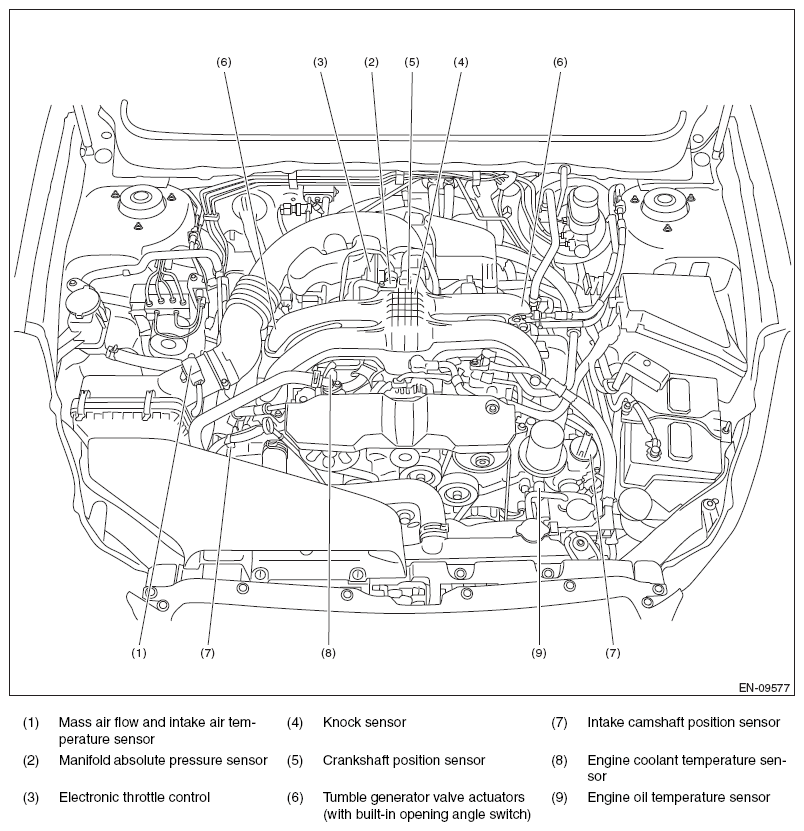

Fig 1: Identifying Sensors (1 Of 2)

Courtesy of SUBARU OF AMERICA, INC.

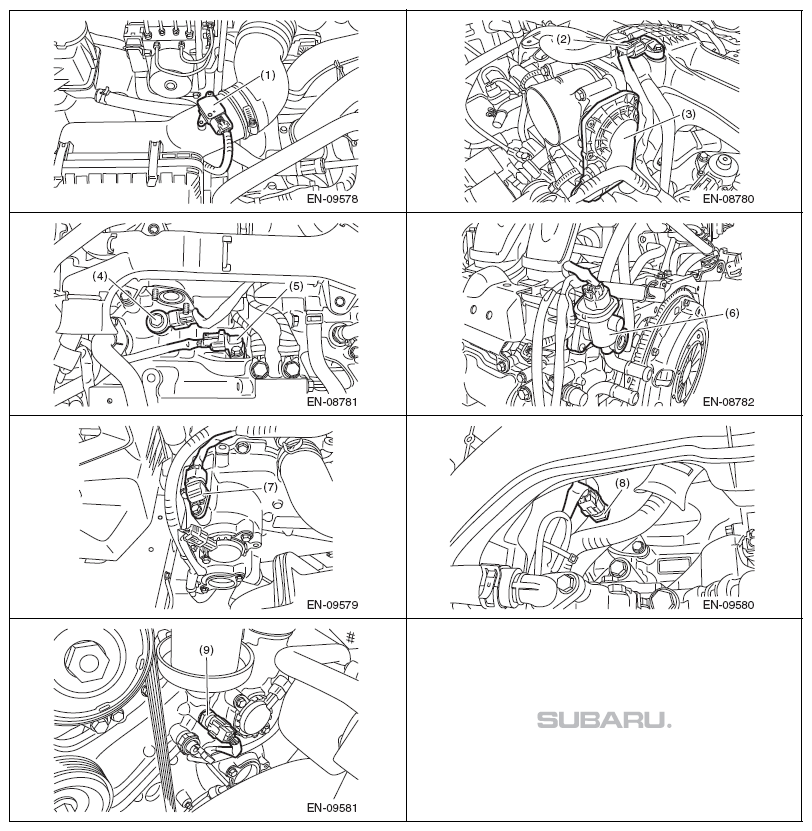

Fig 2: Identifying Sensors (2 Of 2)

Courtesy of SUBARU OF AMERICA, INC.

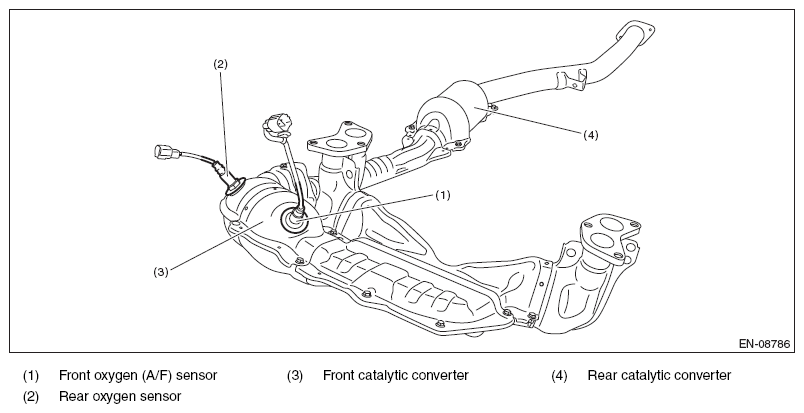

Fig 3: Identifying Front And Rear Oxygen Sensor, Front And Rear Catalytic Converter

Courtesy of SUBARU OF AMERICA, INC.

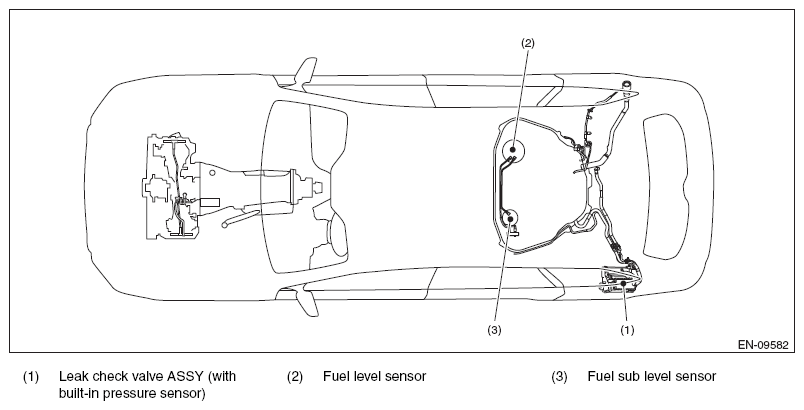

Fig 4: Identifying Fuel Level And Sub Level Sensor

Courtesy of SUBARU OF AMERICA, INC.

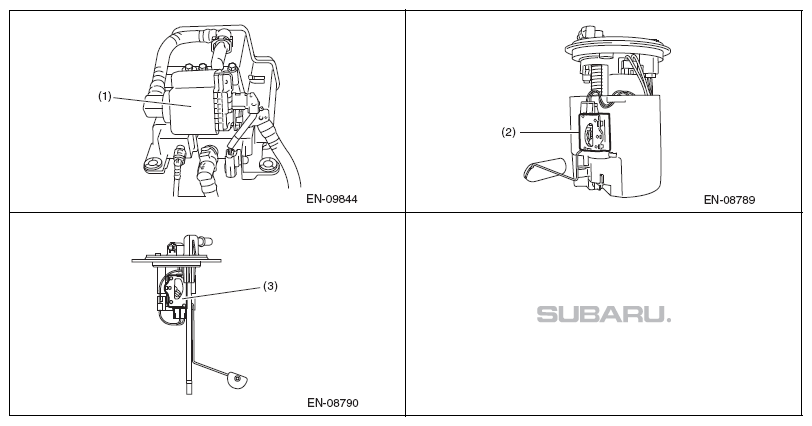

Fig 5: Identifying Leak Check Valve Assembly (With Built-In Pressure Sensor)

Courtesy of SUBARU OF AMERICA, INC.
