Measuring condition

After warming-up
At idling

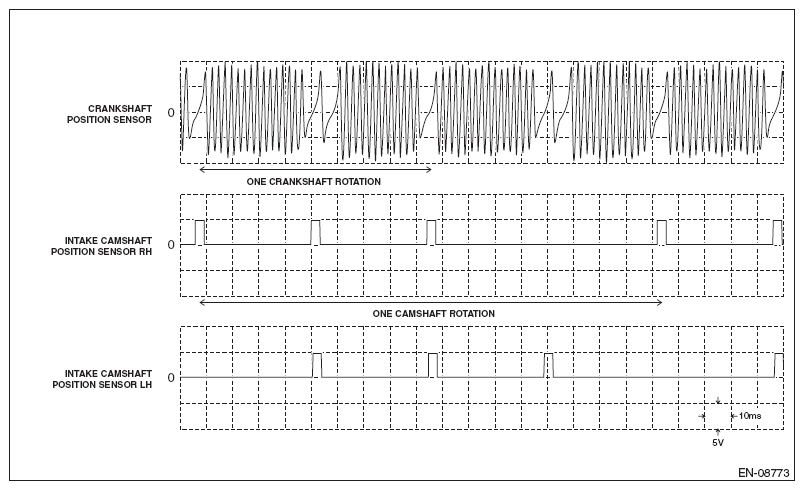

Fig 1: Crankshaft Position Sensor, Intake Camshaft Position Sensor (RH And LH) Waveform
Courtesy of SUBARU OF AMERICA, INC.

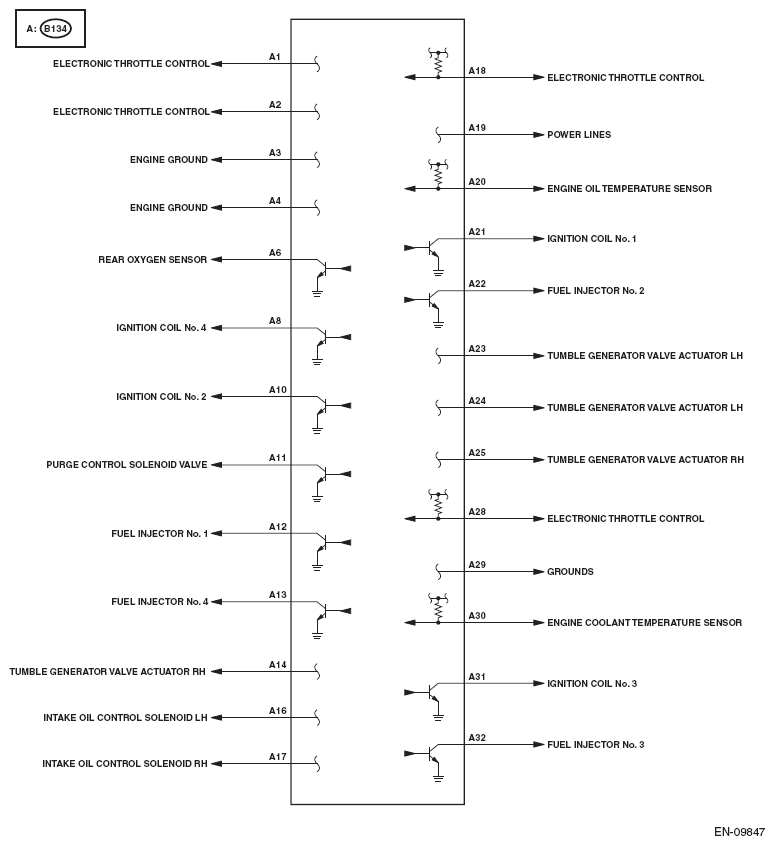

Fig 2: ECM I/O Signal - Wiring Diagram (B134)

Courtesy of SUBARU OF AMERICA, INC.

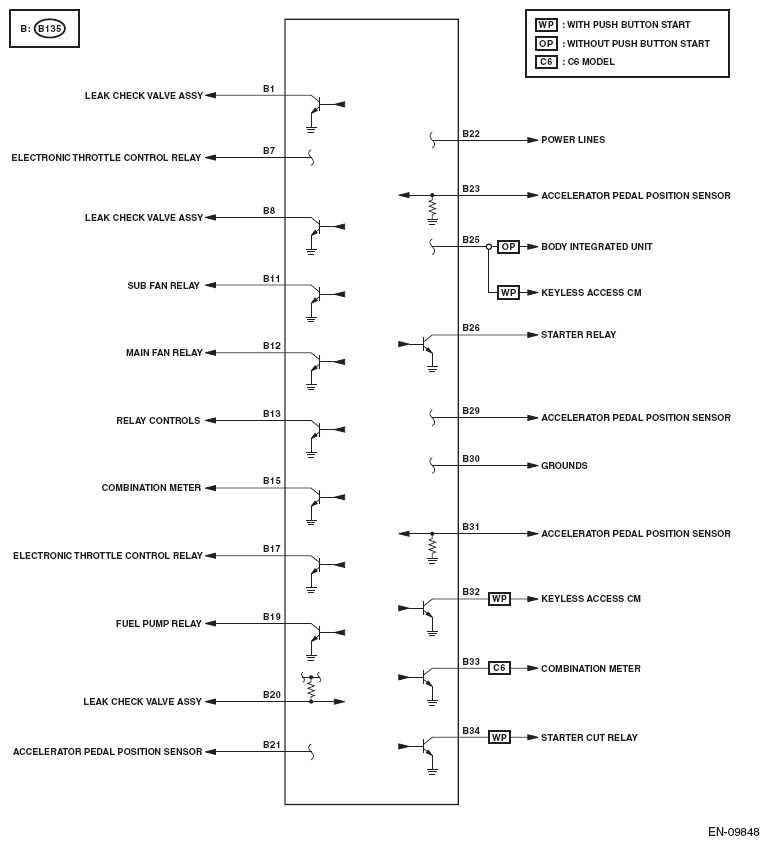

Fig 3: ECM I/O Signal - Wiring Diagram (B135)

Courtesy of SUBARU OF AMERICA, INC.

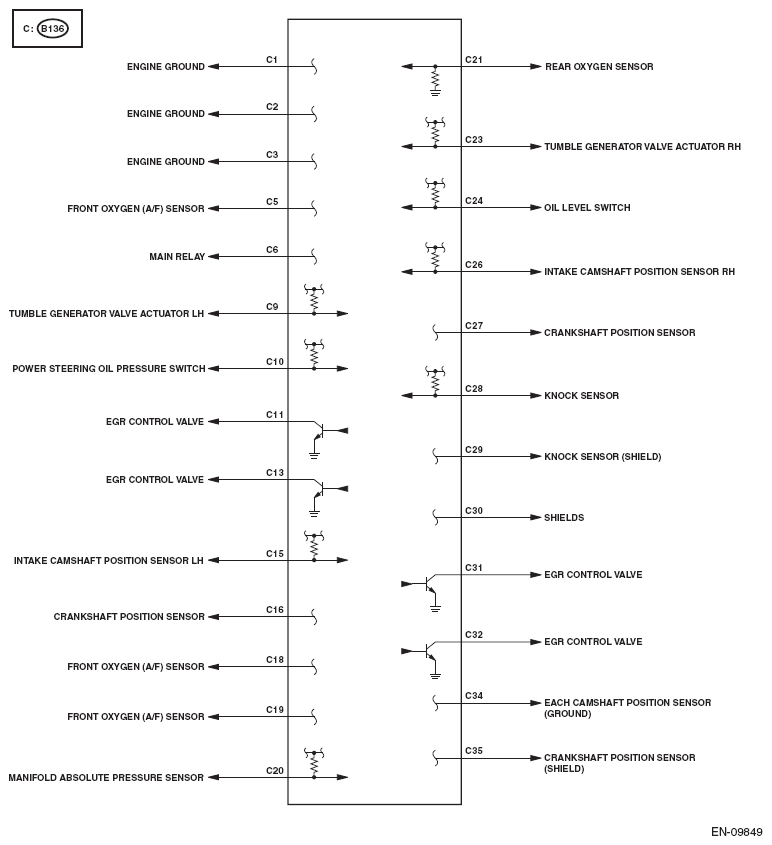

Fig 4: ECM I/O Signal - Wiring Diagram (B136)

Courtesy of SUBARU OF AMERICA, INC.

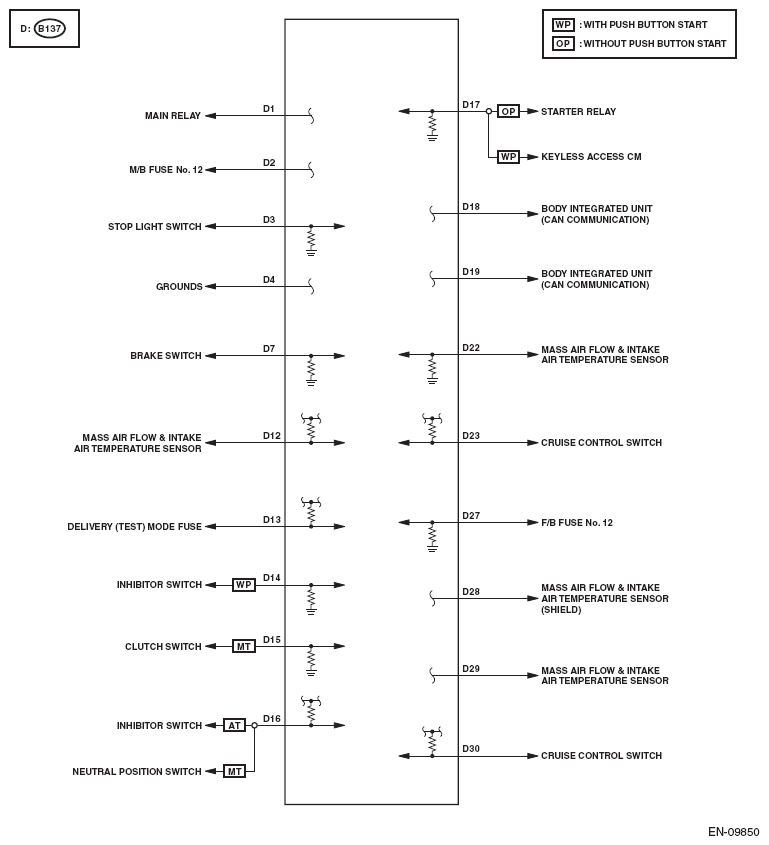

Fig 5: ECM I/O Signal - Wiring Diagram (B137)

Courtesy of SUBARU OF AMERICA, INC.
