Display Of Engine Freeze Frame Data

NOTE:
  • ECM captures the freeze frame data every 0.5 seconds and always keeps the latest three cords. Time-series freeze frame data includes the latest three freeze frame data and the freeze frame data when the DTC is detected.
  • In the time-series freeze frame data, the following freeze frame data are displayed: «Detect», «History1», «History2», and «History3».
  • Time lag between the freeze frame data of «Detect» and the freeze frame data of «History1» changes within the range of 0 - 0.5 seconds. This is because the freeze frame data of «Detect» is recorded when the DTC is actually detected, while the freeze frame data of «History1» is updated every 0.5 seconds.

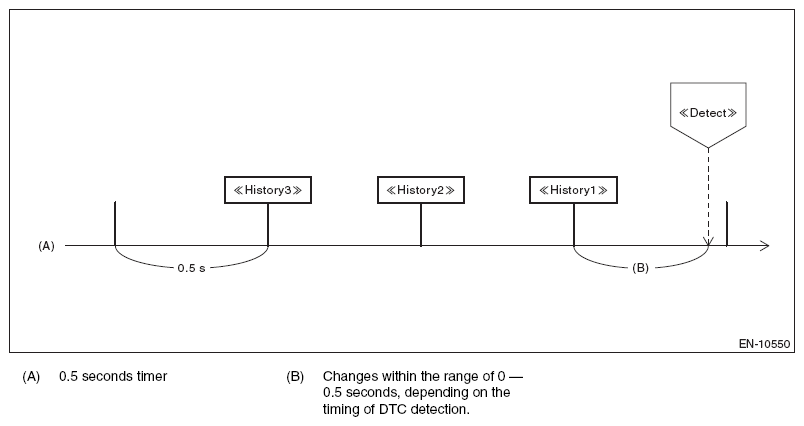

    Fig 1: Display Of Engine Freeze Frame Data
    G08580652Courtesy of SUBARU OF AMERICA, INC.
  • When more than one DTCs are recorded, the time-series freeze frame data is recorded only for the first-detected DTC, and for the next DTC, just the freeze frame data of «Detect» is recorded. And for the subsequent DTCs, no freeze frame data is recorded.
  • When performing diagnosis, you can utilize the time-series freeze frame data to guess the vehicle status when the DTC was detected.
  • For detailed operation procedures, refer to "PC application help for Subaru Select Monitor".
  • A list of the support data is shown in the following table.
Contents Display Unit of measure
Total number of ignition switch ON IGN Counter times
Count Count -
Elapsed time after ignition switch ON IG-ON Elapsed Time ms
Air fuel ratio control system for bank 1 Fuel system for Bank 1 -
Oxygen sensor (Bank 1 Sensor 2) Oxygen sensor #12 V
A/F correction (Bank 1 Sensor 2) Short term fuel trim #12 %
Front oxygen (A/F) sensor (Bank 1 Sensor 1) Oxygen sensor #11 -
Oxygen sensor (Bank 1 Sensor 2) Oxygen sensor #12 -
Neutral condition AT drive status -
Engine load data Calculated load value %
Engine coolant temperature signal Coolant Temp. °C or °F
Short term fuel trim by front oxygen (A/F) sensor (Bank 1) Short term fuel trim B1 %
Long term fuel trim by front oxygen (A/F) sensor (Bank 1) Long term fuel trim B1 %
Intake manifold absolute pressure signal Mani. Absolute Pressure kPa, mmHg, inHg or psig
Engine speed signal Engine Speed rpm
Vehicle speed signal Vehicle Speed km/h or MPH
#1 Cylinder ignition timing Ignition timing adv. #1 °
Intake air temperature signal Intake Air Temp. °C or °F
Intake air amount Mass Air Flow g/s or lb/m
Throttle position signal Throttle Opening Angle %
On-board diagnostic system OBD System -
Elapsed time after engine start Time Since Engine Start sec
Target EGR Commanded EGR %
EGR error EGR Error %
Evaporative purge Evap Purge %
Fuel level signal Fuel Level %
Atmospheric pressure signal Atmosphere Pressure kPa, mmHg, inHg or psig
ECM power supply voltage ECU ACC V
Absolute load Absolute Load Value %
A/F target lambda Target Equivalence Ratio -
Relative throttle opening angle Relative Throttle Pos. %
Ambient temperature Ambient Temperature °C or °F
Absolute throttle opening angle 2 Absolute Throttle Pos.#2 %
Absolute accelerator opening angle 1 Accelerator Pedal Pos.#1 %
Absolute accelerator opening angle 2 Accelerator Pedal Pos.#2 %
Target throttle opening angle Target Throttle Opening Angle %
Actual throttle opening angle Actual Throttle Opening Angle deg
