Keyless Access Function

CAUTION:

When performing the check, check one access key at a time, separating individual keys.
Do not leave any separated access keys in the vehicle.

NOTE: The following inspections show the initial settings. When the settings are different from the initial settings, use Subaru Select Monitor to check the details of each setting for inspections. Refer to OPERATION .

While carrying the access key, check that the room light illuminates when you move close to the front door handles of the vehicle whose doors are all locked.
While carrying the access key, check that the driver's door is unlocked and the hazard lights flash by grasping the front door knob on the driver's side (touching the touch sensor).
While carrying the access key, check that all doors and the rear gate are unlocked and the hazard lights flash by grasping the front door knob on the passenger's side (touching the touch sensor).
While carrying the access key, check that all doors and the rear gate are locked and the hazard lights blink when you press the front lock button on the door or the rear lock button on the rear gate.

NOTE:

The hazard lights flash twice when unlocking.
The hazard lights flash once when locking.

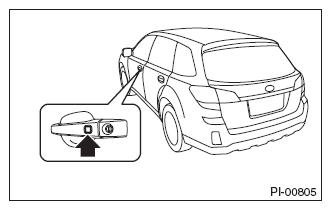

Fig 1: Pressing Front Lock Button On Door

Courtesy of SUBARU OF AMERICA, INC.

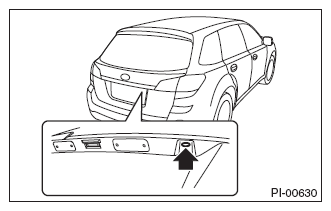

Fig 2: Pressing Rear Lock Button On Rear Gate

Courtesy of SUBARU OF AMERICA, INC.

While carrying the access key, check that the rear gate unlocks and the hazard lights flash twice when you press the rear gate opener button of the rear gate.

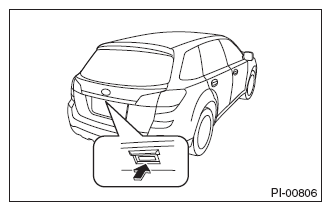

Fig 3: Pressing Rear Gate Opener Button Of Rear Gate
Courtesy of SUBARU OF AMERICA, INC.
Manually operate the access key button to check the lock/unlock of doors and rear gate, and the flashing of hazard lights.

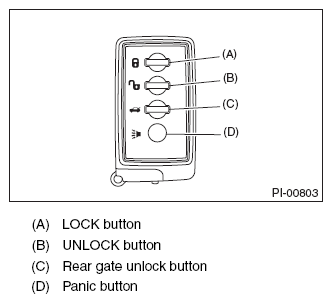

Fig 4: Identifying LOCK/UNLOCK Buttons, Rear Gate Unlock Button And Panic Button
Courtesy of SUBARU OF AMERICA, INC.
Check the mechanical key attached to the access key can be used for locking/unlocking.

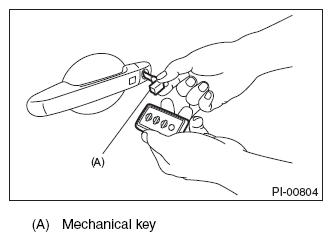

Fig 5: Checking Mechanical Key Attached To Access Key For Locking/Unlocking
Courtesy of SUBARU OF AMERICA, INC.
With the access key in the vehicle, check that warning buzzer sounds and locking does not occur when you press the front lock button or rear lock button.

CAUTION: Remove the mechanical key from the access key and hold the mechanical key.
