Steering Wheel And Column

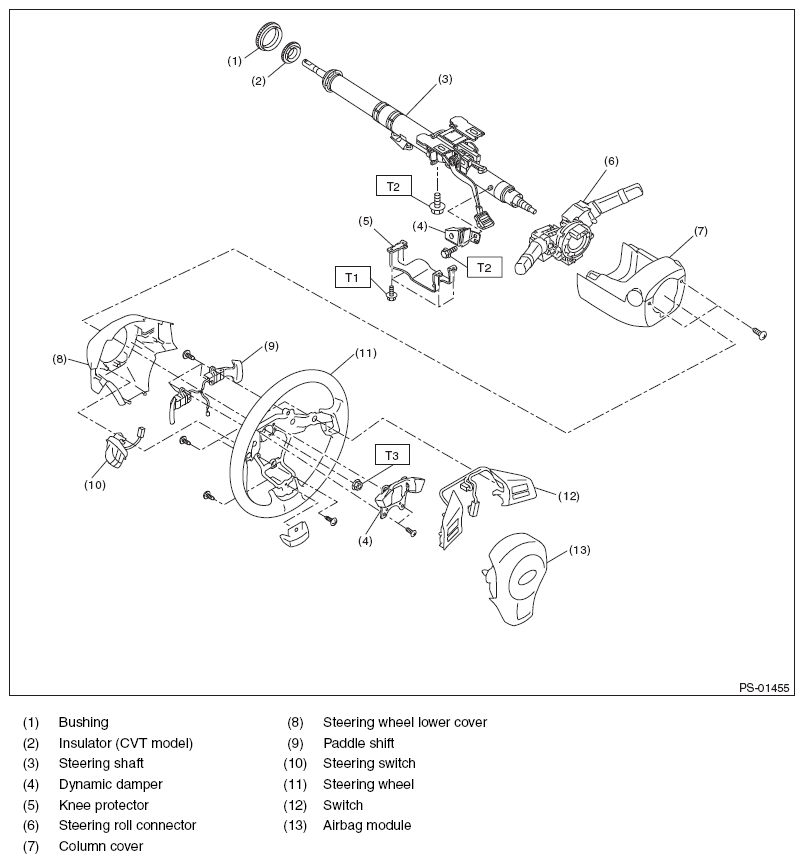

Fig 1: Exploded View Of Steering Wheel And Column Components With Torque Specifications

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 3.4 (0.35, 2.5)

T2: 20 (2.04, 14.8)

T3: 39 (3.98, 28.8)
