Universal Joint: Inspection

Check for wear, damage or any other faults.

1. Check the universal joint for excessive looseness.

   Service limit:

   Universal joint play: 0 mm (0 in)

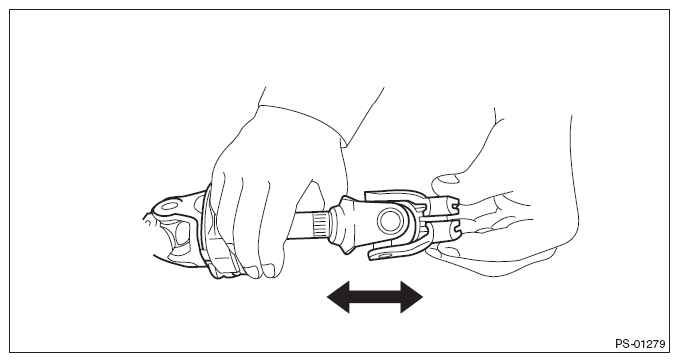

   Fig 1: Checking Universal Joint For Excessive Looseness

   Courtesy of SUBARU OF AMERICA, INC.
2. Measure the swing torque of universal joint.
   1. Place the universal joint between wooden blocks and fix it on a vise.
   2. With the yoke (a) of gearbox side facing up, measure the swing torque in two directions.
      Fig 2: Measuring Swing Torque Of Universal Joint (Yoke Of Gearbox Side Facing Up)

      Courtesy of SUBARU OF AMERICA, INC.

      Service limit:

      Maximum load: 3.8 N (0.39 kgf, 0.86 lbf) or less

   3. With the yoke (b) of steering column side facing up, measure the swing torque in two directions.
      Fig 3: Measuring Swing Torque Of Universal Joint (Yoke Steering Column Side Facing Up)

      Courtesy of SUBARU OF AMERICA, INC.

      Service limit:

      Maximum load: 7.3 N (0.74 kgf, 1.64 lbf) or less

   4. Replace as necessary, if it is found defective.
