MT Gear Select Cable: Installation

CAUTION:

Always use new MT gear select cable if the cable is removed from selector lever COMPL of transmission side.
Do not bend the MT gear select cable sharply.
Do not twist the inner cable excessively.

Remove the MT gear select cable from the select bracket.
CAUTION: Check for assembling position before removing the MT gear select cable from the select bracket.

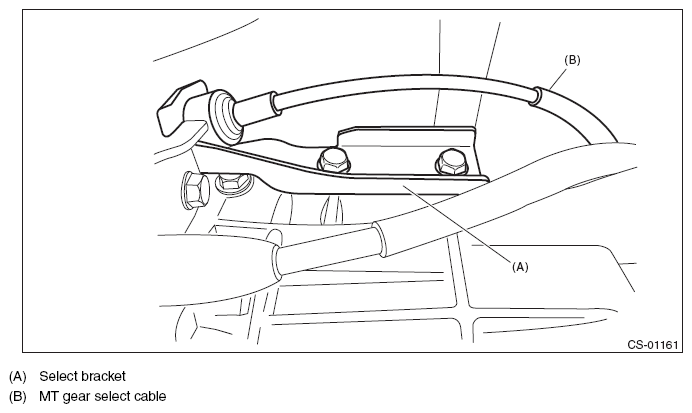

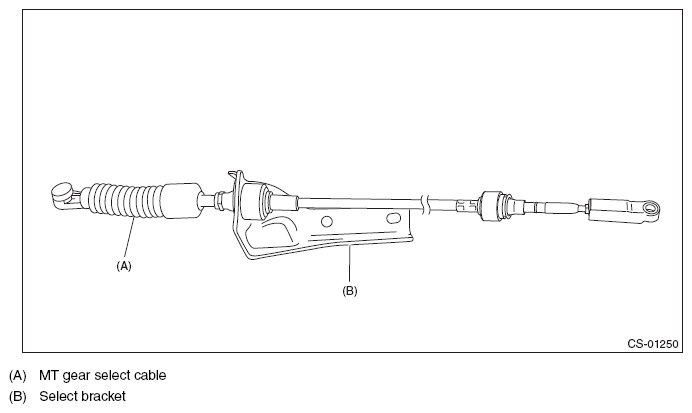

Fig 1: Identifying MT Gear Select Cable And Select Bracket
Courtesy of SUBARU OF AMERICA, INC.
Set to the new MT gear select cable to the select bracket and secure it with the clamp.
CAUTION: Be careful not to mistake the MT gear select cable installing direction.

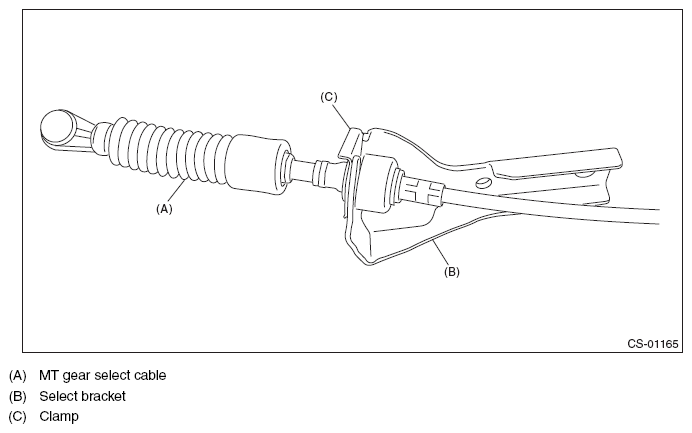

Fig 2: Identifying MT Gear Select Cable, Select Bracket And Clamp
Courtesy of SUBARU OF AMERICA, INC.
Install the MT gear select cable and select bracket as a single unit to the transmission body.
Tightening torque:

18 N.m (1.8 kgf-m, 13.3 ft-lb)

Fig 3: Identifying MT Gear Select Cable And Select Bracket
Courtesy of SUBARU OF AMERICA, INC.
Install the MT gear select cable to the select lever COMPL.

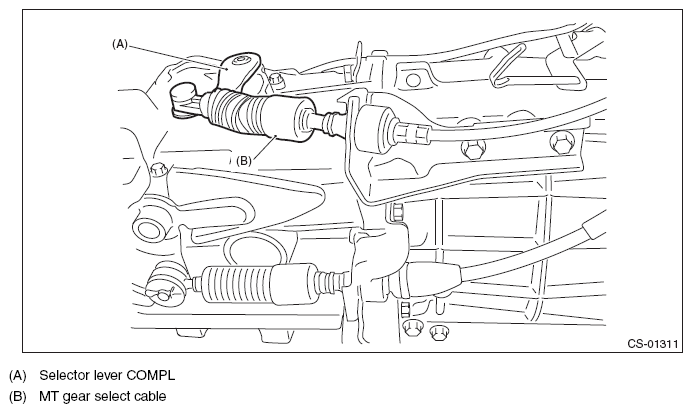

Fig 4: Identifying MT Gear Select Cable And Selector Lever COMPL
Courtesy of SUBARU OF AMERICA, INC.
Measure the exposed length (a) of MT gear select cable. If out of specification, adjust the MT gear select cable. Refer to ADJUSTMENT .
Exposed length (a) of MT gear select cable:

Specification: 11 mm (0.4 in)

Fig 5: Identifying Exposed Length Of MT Gear Select Cable
Courtesy of SUBARU OF AMERICA, INC.
Connect the MT gear select cable.
Install the plate cable assembly.
Tightening torque:

7.5 N.m (0.8 kgf-m, 5.5 ft-lb)

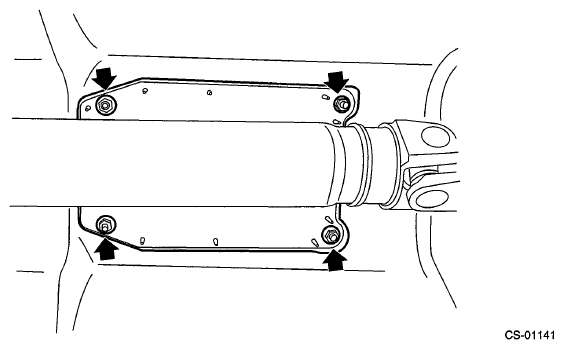

Fig 6: Locating Plate Cable Assembly Mounting Bolts
Courtesy of SUBARU OF AMERICA, INC.
Insert the MT gear select cable into clamp cable, and install to the transmission.
Tightening torque:

18 N.m (1.8 kgf-m, 13.3 ft-lb)

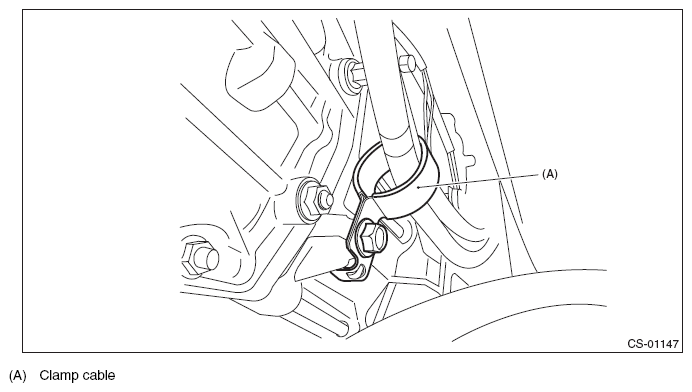

Fig 7: Identifying Clamp Cable
Courtesy of SUBARU OF AMERICA, INC.
Raise the transmission jack, install the front crossmember and rear crossmember.
Tightening torque:

T1: 75 N.m (7.6 kgf-m, 55.3 ft-lb)

T2: 140 N.m (14.3 kgf-m, 103.3 ft-lb)

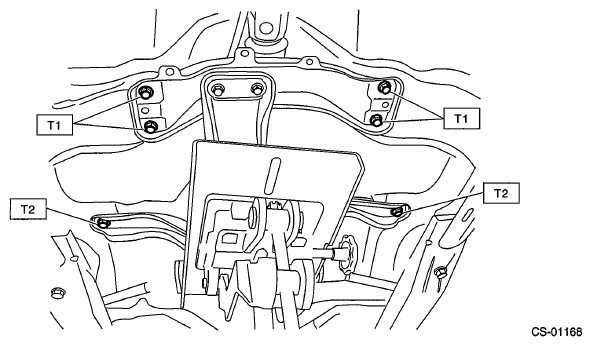

Fig 8: Front And Rear Transmission Crossmember Mounting Bolts With Torque Specifications
Courtesy of SUBARU OF AMERICA, INC.
Rotate the handle of ST (ENGINE HANGER) to apply tension to the sling chain.
Take out the transmission jack.
Install the heat shield cover.
Tightening torque:

18 N.m (1.8 kgf-m, 13.3 ft-lb)

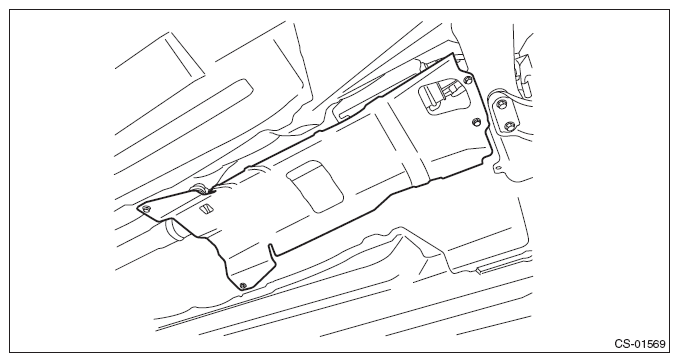

Fig 9: Identifying Heat Shield Cover
Courtesy of SUBARU OF AMERICA, INC.
Install the center exhaust pipe. Refer to INSTALLATION .
Lower the vehicle.
Rotate the handle of ST (ENGINE HANGER) to lift up the engine slightly.
Remove the bolts from ST (SPECIAL TOOL FB).

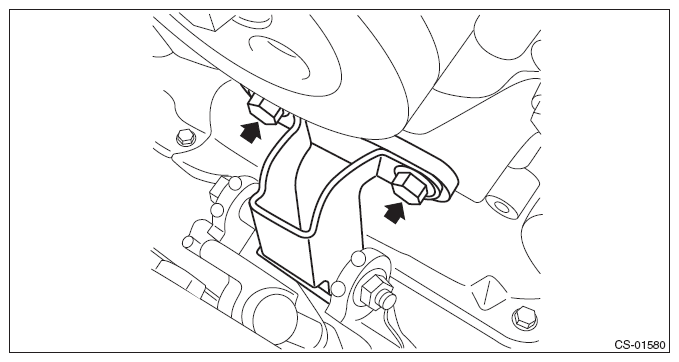

Fig 10: Locating Special Tool Mounting Bolts
Courtesy of SUBARU OF AMERICA, INC.
Remove the bolt and nut to remove ST (SPECIAL TOOL FB).

Fig 11: Locating Special Tool Mounting Bolts
Courtesy of SUBARU OF AMERICA, INC.
Temporarily attach the front engine mounting with bolts.

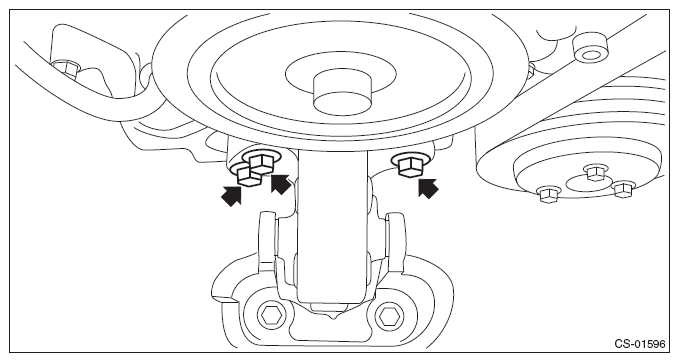

Fig 12: Locating Engine Mounting Bolts
Courtesy of SUBARU OF AMERICA, INC.
Install the bolt and nut to the front engine mounting.

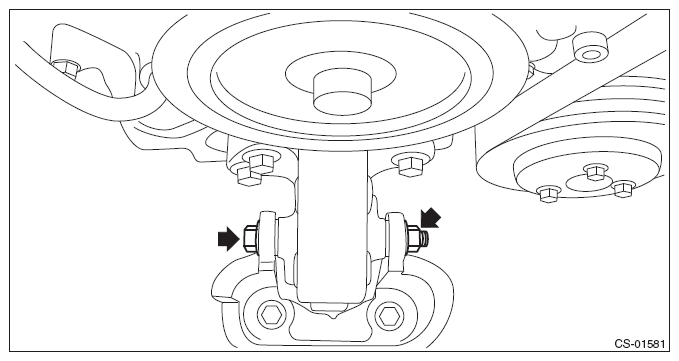

Fig 13: Locating Engine Mounting Bolt And Nut
Courtesy of SUBARU OF AMERICA, INC.
Tighten the bolts and nuts of front engine mounting.
Tightening torque:

T1: 25 N.m (2.5 kgf-m, 18.4 ft-lb)

T2: 45 N.m (4.6 kgf-m, 33.2 ft-lb)

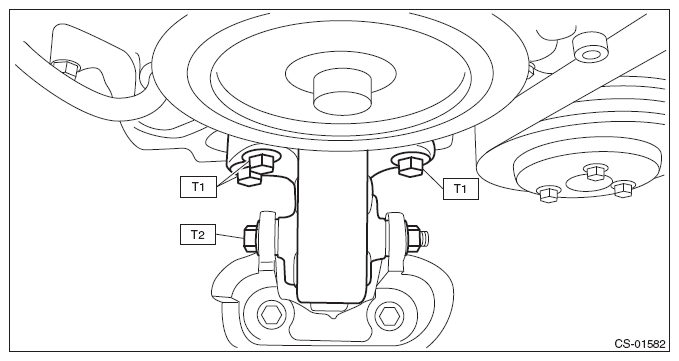

Fig 14: Front Engine Mounting Bolts And Nuts With Torque Specifications
Courtesy of SUBARU OF AMERICA, INC.
Attach the nuts to the left and right transmission mounting brackets.
Tightening torque:

45 N.m (4.6 kgf-m, 33.2 ft-lb)

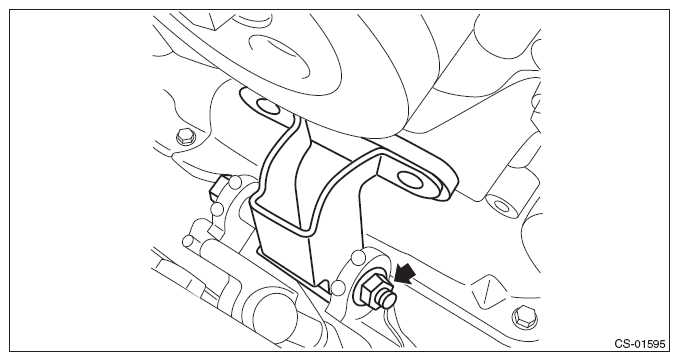

Fig 15: Locating Left And Right Transmission Mounting Bracket Nuts
Courtesy of SUBARU OF AMERICA, INC.
Connect the engine harness connectors, and install harness bracket to the engine hanger rear.
Tightening torque:

7.5 N.m (0.8 kgf-m, 5.5 ft-lb)

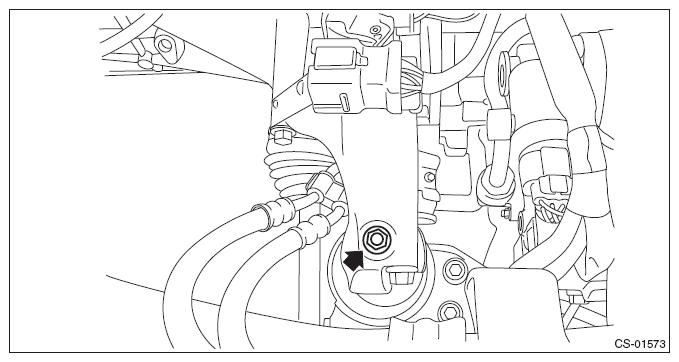

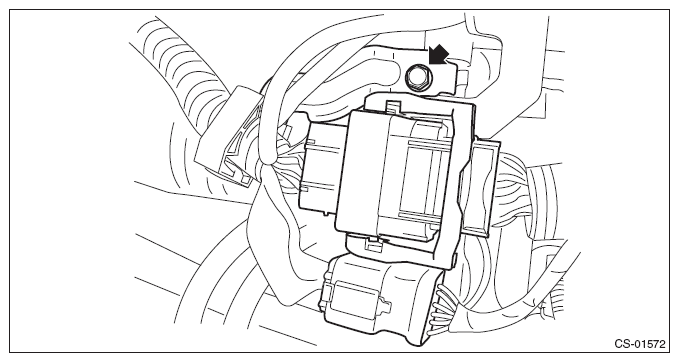

Fig 16: Locating Engine Harness Connector Mounting Bolt
Courtesy of SUBARU OF AMERICA, INC.
Install the throttle body. Refer to INSTALLATION .
Install the air intake boot assembly. Refer to INSTALLATION .
Install the radiator sub fan and fan motor. Refer to INSTALLATION .
Attach the grille bracket.

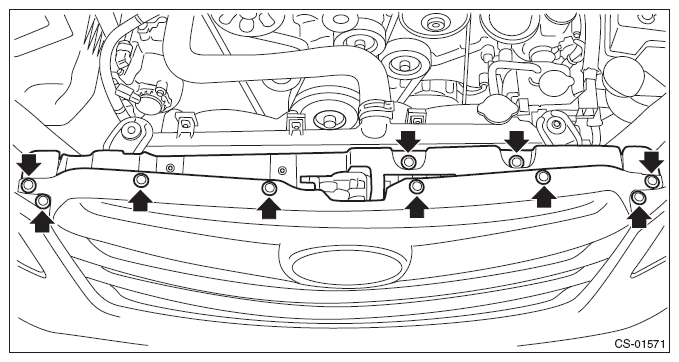

Fig 17: Locating Grille Bracket Mounting Clips
Courtesy of SUBARU OF AMERICA, INC.
Install the air intake duct. Refer to INSTALLATION .
Connect the battery ground terminal.
Adjust the detent of the MT gear shift lever. Refer to ADJUSTMENT .
Make sure the gears can be shifted accurately into each gear.
