MT Gear Shift Cable: Installation

When replacing the new MT gear shift cable, secure it to shift bracket with the clamps, be careful not to mistake the installing direction.

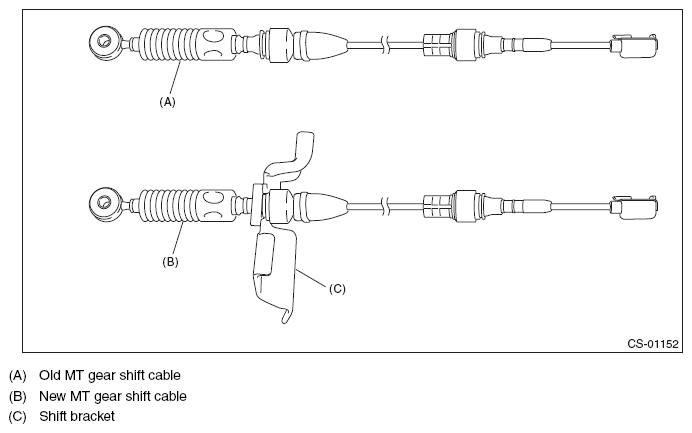

Fig 1: Identifying MT Gear Shift Cable And Shift Bracket
Courtesy of SUBARU OF AMERICA, INC.
Install the MT gear shift cable and shift bracket as a single unit onto transmission.
CAUTION:
- Do not bend MT gear shift cable at a sharp angle.
- Do not twist the cable inner excessively.
NOTE: When installing the MT gear shift cable, make sure that the mark or blue mark on the cable faces up.

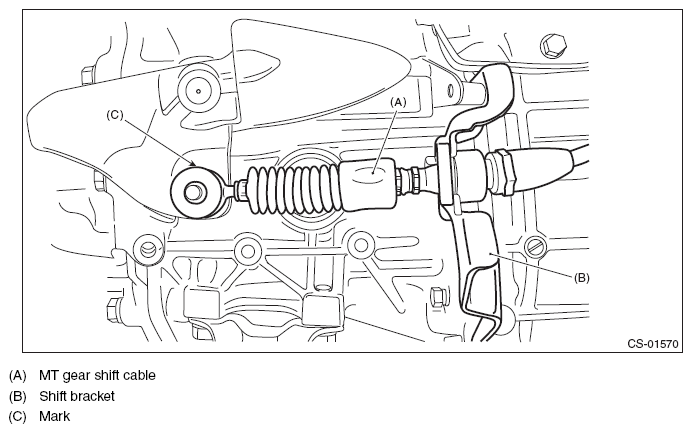

Fig 2: Identifying MT Gear Shift Cable, Shift Bracket And Alignment Mark
Courtesy of SUBARU OF AMERICA, INC.
Tighten the shift bracket with specified torque.
Tightening torque:

18 N.m (1.8 kgf-m, 13.3 ft-lb)

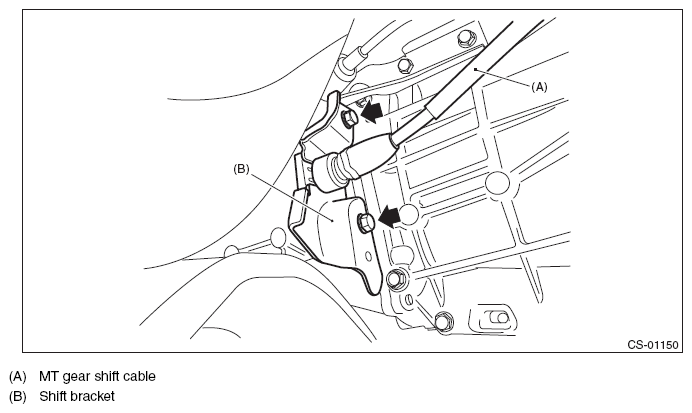

Fig 3: Locating Shift Bracket Mounting Bolts
Courtesy of SUBARU OF AMERICA, INC.
Install the snap pin.

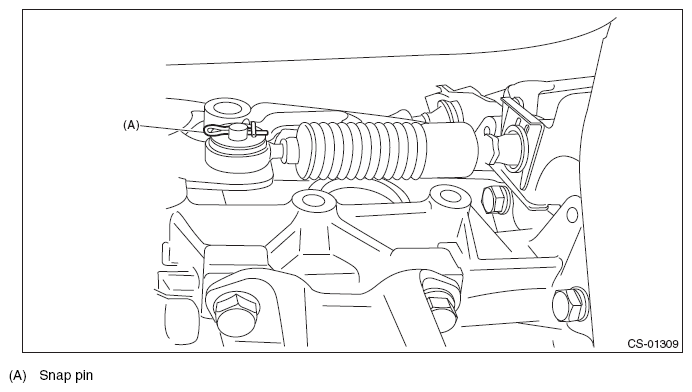

Fig 4: Identifying Snap Pin
Courtesy of SUBARU OF AMERICA, INC.
Install the dust cover to the transmission body. (OUTBACK model)
Tightening torque:

15 N.m (1.5 kgf-m, 11.1 ft-lb)

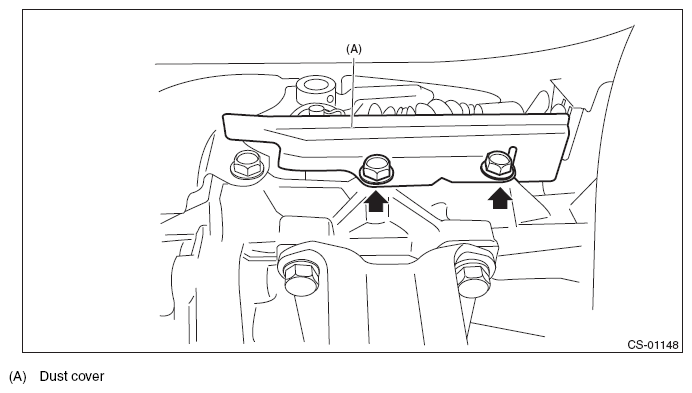

Fig 5: Locating Dust Cover To Transmission Body Mounting Bolts (Outback Model)
Courtesy of SUBARU OF AMERICA, INC.
Insert the MT gear shift cable into the cover cable assembly, and secure it with the clamp.

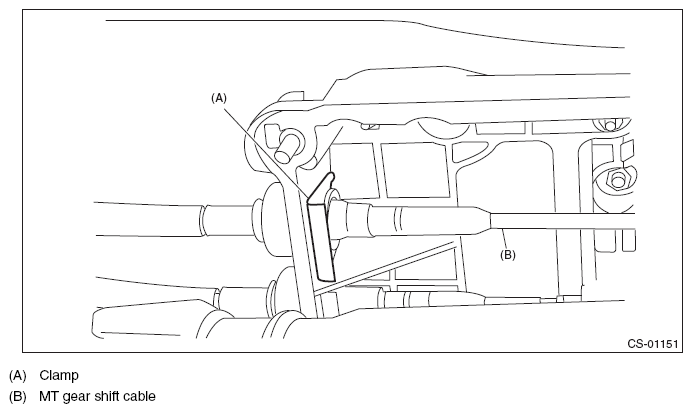

Fig 6: Inserting MT Gear Shift Cable Into Cover Cable Assembly
Courtesy of SUBARU OF AMERICA, INC.
Connect the MT gear shift cable.
Install the plate cable assembly.
Tightening torque:

7.5 N.m (0.8 kgf-m, 5.5 ft-lb)

Fig 7: Locating Plate Cable Assembly Mounting Bolts
Courtesy of SUBARU OF AMERICA, INC.
Insert the MT gear shift cable into clamp cable, and install to the transmission.
Tightening torque:

18 N.m (1.8 kgf-m, 13.3 ft-lb)

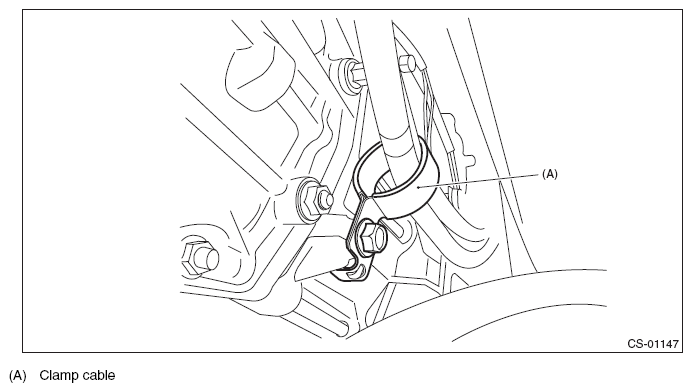

Fig 8: Identifying Clamp Cable
Courtesy of SUBARU OF AMERICA, INC.
Install the heat shield cover.
Tightening torque:

18 N.m (1.8 kgf-m, 13.3 ft-lb)

Fig 9: Identifying Heat Shield Cover
Courtesy of SUBARU OF AMERICA, INC.
Install the center exhaust pipe. Refer to INSTALLATION .
Lower the vehicle.
Make sure the gears can be shifted accurately into each gear.
