MT Gear Shift Cable: Removal

Disconnect the ground cable from battery.
Lift up the vehicle.
Remove the center exhaust pipe. Refer to REMOVAL .
Remove the heat shield cover.

Fig 1: Identifying Heat Shield Cover
Courtesy of SUBARU OF AMERICA, INC.

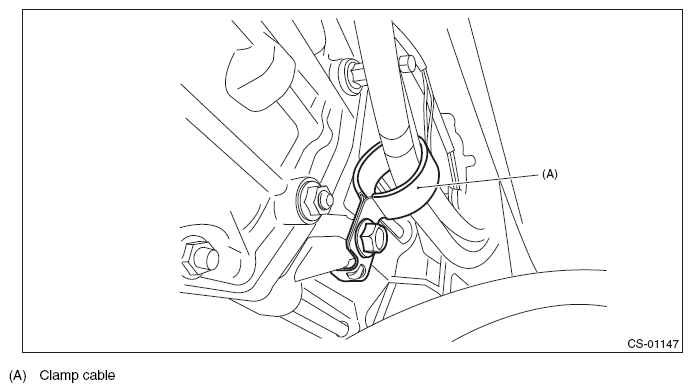

Remove the clamp cable and take out the MT gear shift cable from the clamp.

Fig 2: Identifying Clamp Cable
Courtesy of SUBARU OF AMERICA, INC.

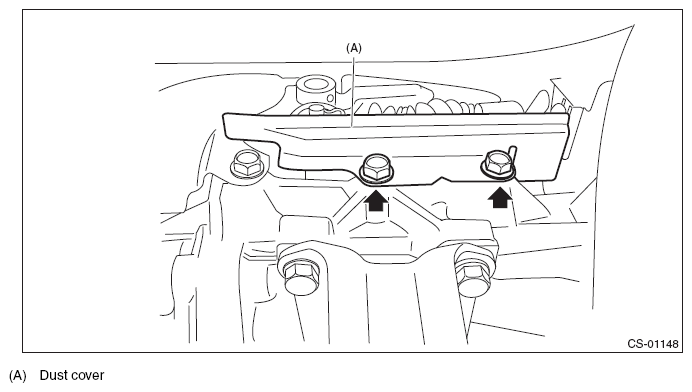

Remove the dust cover from transmission body. (OUTBACK model)

Fig 3: Removing Dust Cover From Transmission Body (Outback Model)
Courtesy of SUBARU OF AMERICA, INC.
Apply a mark on the top end of the MT gear shift cable.

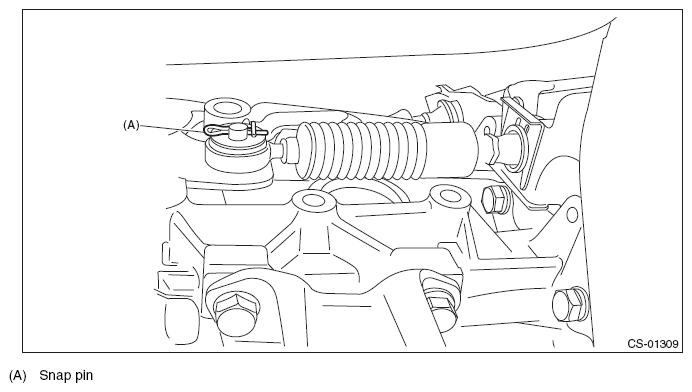

Remove the snap pin from the shift lever COMPL.

Fig 4: Identifying Shift Lever COMPL Snap Pin
Courtesy of SUBARU OF AMERICA, INC.

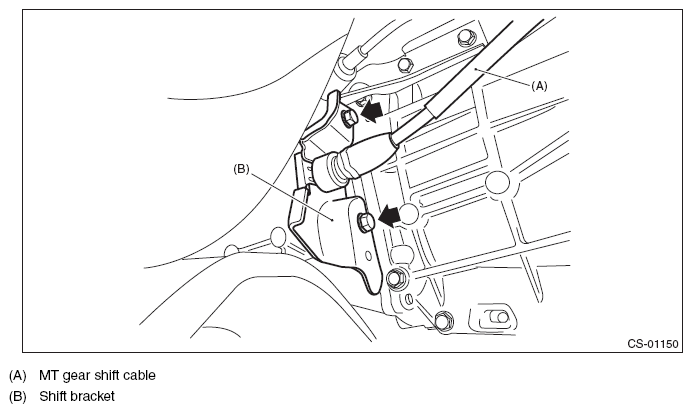

Remove the shift bracket and MT gear shift cable as a single unit from the transmission body.

Fig 5: Locating MT Gear Shift Cable Mounting Bolts
Courtesy of SUBARU OF AMERICA, INC.
Remove the plate cable assembly.

Fig 6: Locating Plate Cable Assembly Mounting Bolts
Courtesy of SUBARU OF AMERICA, INC.

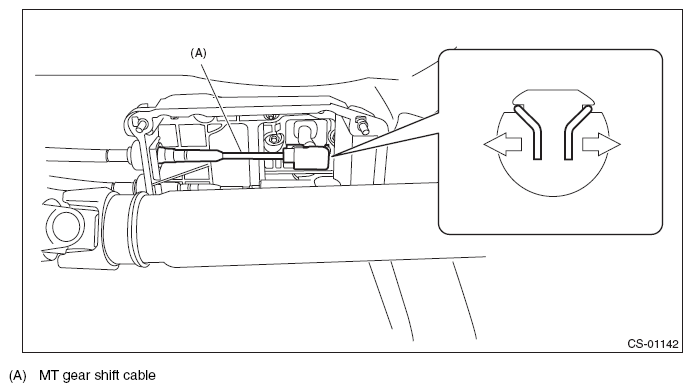

Remove the spring at the MT gear shift cable by expanding it and pulling down, and remove the MT gear shift cable from the gear shift lever assembly.
CAUTION: Be careful not to deform the cable inner.

Fig 7: Removing Spring At MT Gear Shift Cable
Courtesy of SUBARU OF AMERICA, INC.

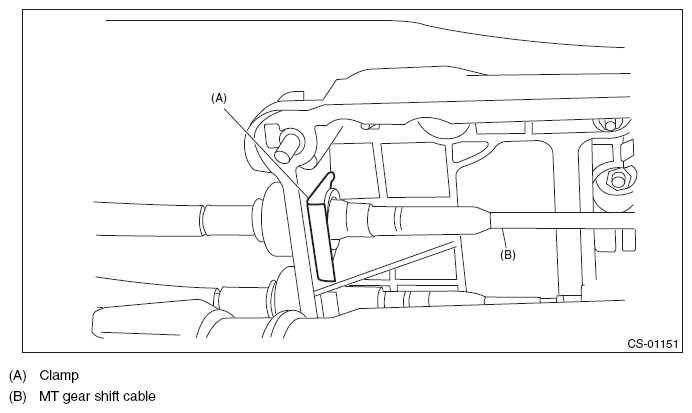

Remove the clamp which holds the MT gear shift cable.

Fig 8: Identifying MT Gear Shift Cable And Clamp
Courtesy of SUBARU OF AMERICA, INC.
Pull out the MT gear shift cable from cover cable assembly.
