MT Gear Shift Lever: Removal

Disconnect the ground cable from battery.
Lift up the vehicle.
Remove the center exhaust pipe. Refer to REMOVAL .
Remove the heat shield cover.

Fig 1: Identifying Heat Shield Cover
Courtesy of SUBARU OF AMERICA, INC.
Remove the plate cable assembly.

Fig 2: Locating Plate Cable Assembly Mounting Bolts
Courtesy of SUBARU OF AMERICA, INC.

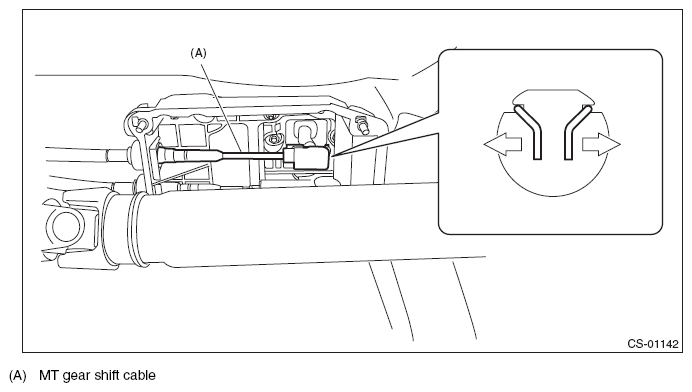

Remove the spring at the MT gear shift cable by expanding it and pulling down, and remove the MT gear shift cable from the gear shift lever assembly.
CAUTION: Be careful not to deform the cable inner.

Fig 3: Removing MT Gear Shift Cable From Gear Shift Lever Assembly
Courtesy of SUBARU OF AMERICA, INC.

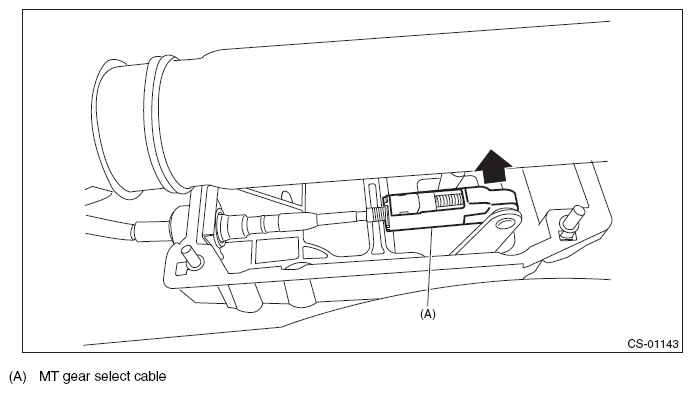

Remove the MT gear select cable from the gear shift lever assembly by pulling it in the direction of arrow in the figure.
CAUTION: Be careful not to deform the cable inner.

Fig 4: Removing MT Gear Select Cable From Gear Shift Lever Assembly
Courtesy of SUBARU OF AMERICA, INC.
Remove the cover cable assembly.

Fig 5: Locating Cover Cable Assembly Mounting Bolts
Courtesy of SUBARU OF AMERICA, INC.
Lower the vehicle.
Remove the shift knob.
Remove the console front cover assembly and console box. Refer to REMOVAL .
Remove the bolts, and then remove the gear shift lever assembly from the vehicle.
NOTE: The MT gear shift lever cannot be disassembled.

Fig 6: Locating Gear Shift Lever Assembly Mounting Bolts
Courtesy of SUBARU OF AMERICA, INC.
