Select Cable: Adjustment

Shift the select lever to "N" range.
Lift up the vehicle.
Remove the front exhaust pipe and rear exhaust pipe.
- 2.5 L model
  Refer to REMOVAL , Front Exhaust Pipe. and REMOVAL , Rear Exhaust Pipe.
- 3.6 L model
  Refer to REMOVAL , Front Exhaust Pipe. and REMOVAL , Rear Exhaust Pipe.
Remove the heat shield cover.

Fig 1: Identifying Heat Shield Cover
Courtesy of SUBARU OF AMERICA, INC.
Loosen the nuts on both sides.

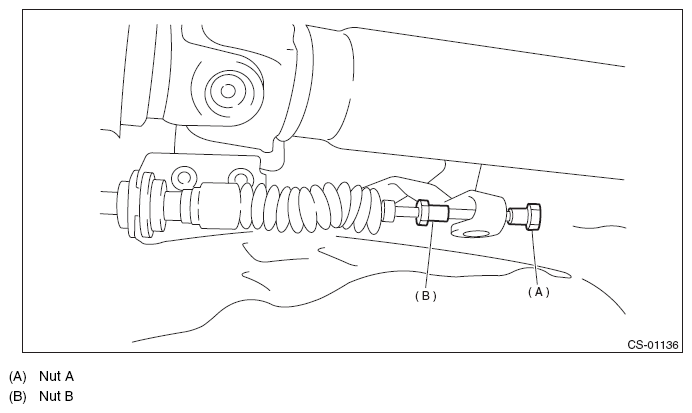

Fig 2: Identifying Select Cable Nuts
Courtesy of SUBARU OF AMERICA, INC.
Turn the nut B until it lightly touches the connector.

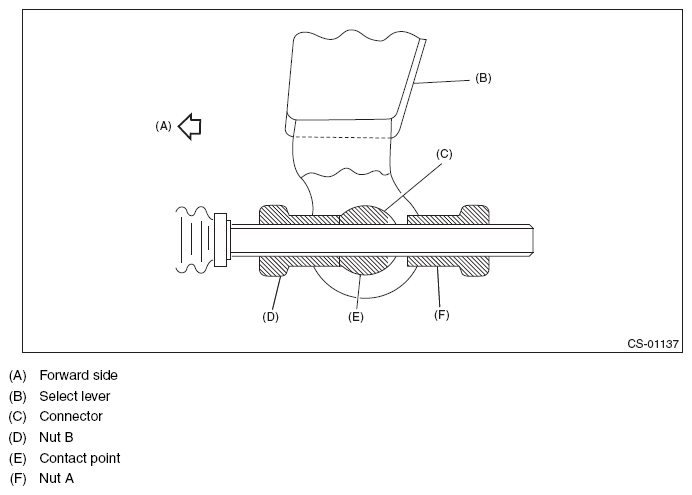

Fig 3: Turning Select Cable Nut
Courtesy of SUBARU OF AMERICA, INC.
Set a spanner wrench to the nut B so that it does not rotate, and then tighten the nut A.
Tightening torque:

7.5 N.m (0.8 kgf-m, 5.5 ft-lb)

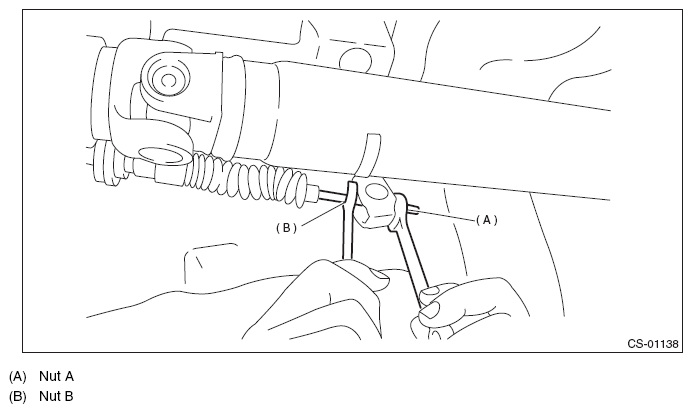

Fig 4: Restricting Nut Rotation Using Spanner Wrench
Courtesy of SUBARU OF AMERICA, INC.
After the completion of adjustment, confirm that the select lever operates normally at all ranges.
Install in the reverse order of removal.
