Select Lever: Assembly

  1. Clean all the parts before assembly.
  2. Apply Multemp D or equivalent to the sliding portion of each part.
  3. Assemble in the reverse order of disassembly.

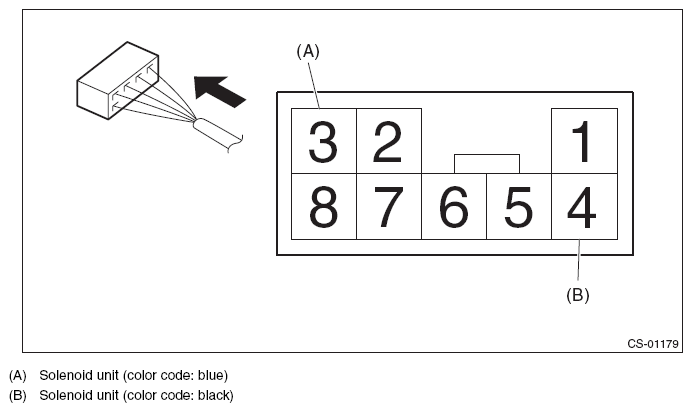

    NOTE: Insert the solenoid unit terminals to the harness connector.
    Fig 1: Inserting Solenoid Unit Terminals To Harness Connector
    G08578421Courtesy of SUBARU OF AMERICA, INC.
  4. After installation, check the following points.
    • The select indicator matches the select lever position when the select lever is changed from "P" range to "D" range.
    • The select lever position and the position mark match each other.
    • Operating force to move the select lever from "P" to "D" range.
