At Select Lever Assembly

Remove the spacer plate.

Fig 1: Identifying AT Select Lever Assembly Spacer Plate
Courtesy of SUBARU OF AMERICA, INC.
Remove the gasket.

Fig 2: Identifying AT Select Lever Assembly Gasket
Courtesy of SUBARU OF AMERICA, INC.

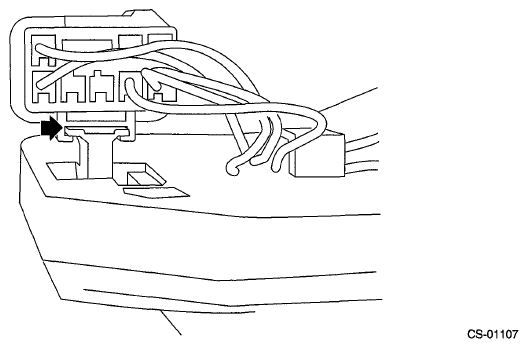

Insert a flat tip screwdriver with a thin tip under the connector and disconnect the harness connector from the plate COMPL.

Fig 3: Locating Plate COMPL Harness Connector
Courtesy of SUBARU OF AMERICA, INC.

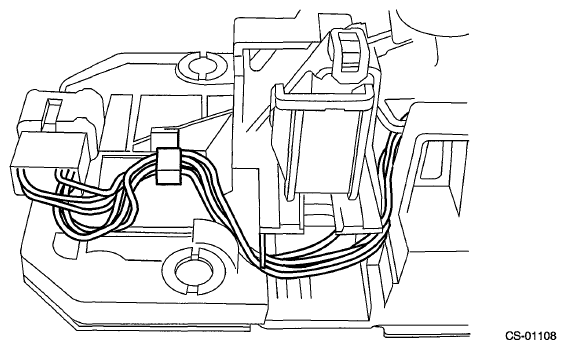

Remove the harness from the plate COMPL.

Fig 4: Identifying Plate COMPL Harness
Courtesy of SUBARU OF AMERICA, INC.

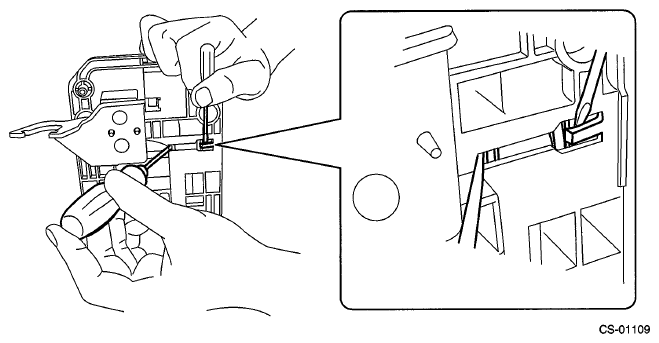

Raise the claw with a flat tip screwdriver with a thin tip and remove the solenoid unit.

Fig 5: Removing Solenoid Unit Using Flat Tip Screwdriver
Courtesy of SUBARU OF AMERICA, INC.

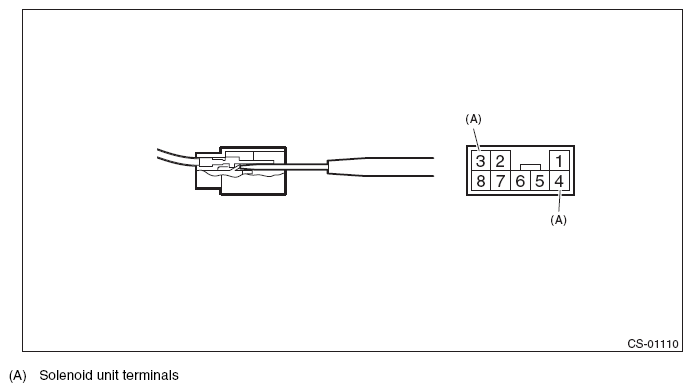

Using a flat tip screwdriver with a thin tip, remove the solenoid unit terminals from the connector.

Fig 6: Removing Solenoid Unit Terminals From Connector Using Flat Tip Screwdriver
Courtesy of SUBARU OF AMERICA, INC.

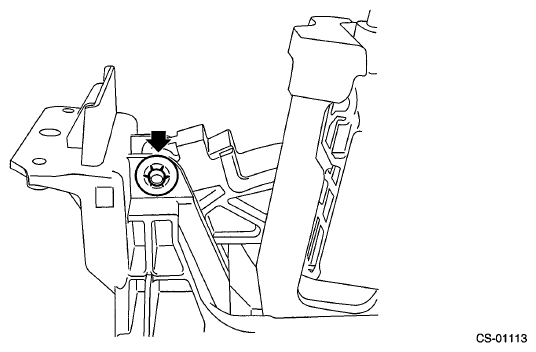

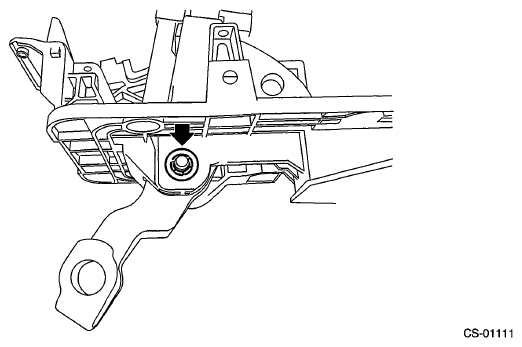

Remove the clamp push nut.
NOTE: Replace the clamp push nut with a new part.

Fig 7: Locating Select Lever Clamp Push Nut
Courtesy of SUBARU OF AMERICA, INC.

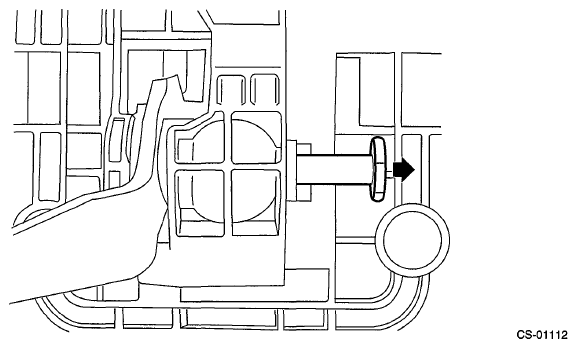

Pull out shaft control.

Fig 8: Pulling Out Shaft Control
Courtesy of SUBARU OF AMERICA, INC.

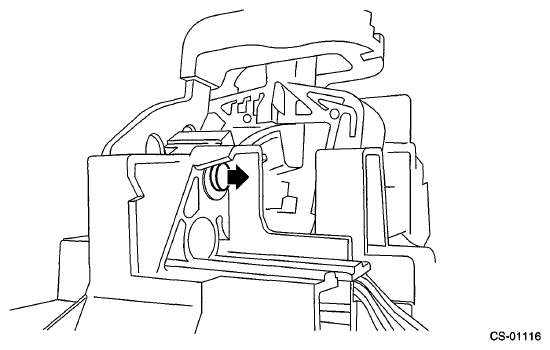

Remove the clamp push nut.
NOTE: Replace the clamp push nut with a new part.

Fig 9: Locating Select Lever Clamp Push Nut
Courtesy of SUBARU OF AMERICA, INC.
Pull out spacer pin guide.

Fig 10: Pulling Out Spacer Pin Guide
Courtesy of SUBARU OF AMERICA, INC.

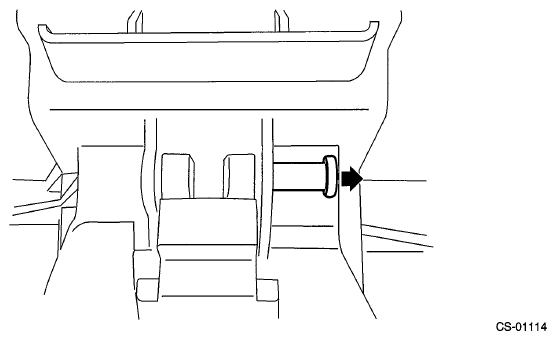

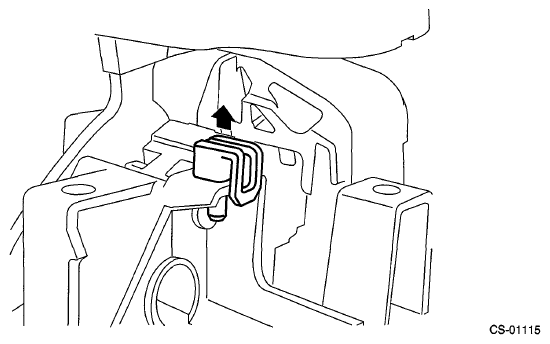

Remove the clamp pin.

Fig 11: Removing Clamp Pin
Courtesy of SUBARU OF AMERICA, INC.
Remove the spacer pin guide.

Fig 12: Removing Spacer Pin Guide
Courtesy of SUBARU OF AMERICA, INC.

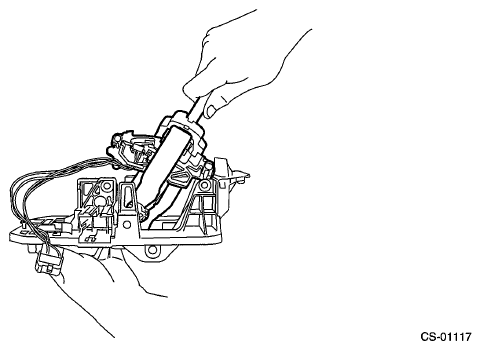

Remove the select lever COMPL from the plate COMPL.

Fig 13: Removing Select Lever COMPL From Plate COMPL
Courtesy of SUBARU OF AMERICA, INC.

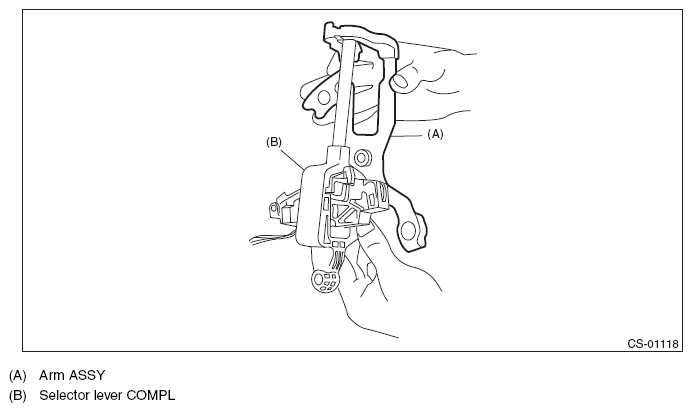

Remove the arm assembly.

Fig 14: Removing Arm Assembly
Courtesy of SUBARU OF AMERICA, INC.

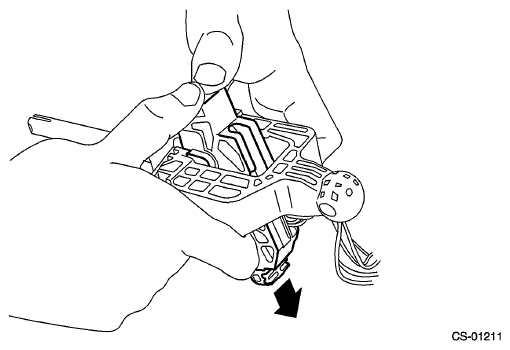

Remove the plate guide from the select lever COMPL.

Fig 15: Removing Plate Guide From Select Lever COMPL
Courtesy of SUBARU OF AMERICA, INC.

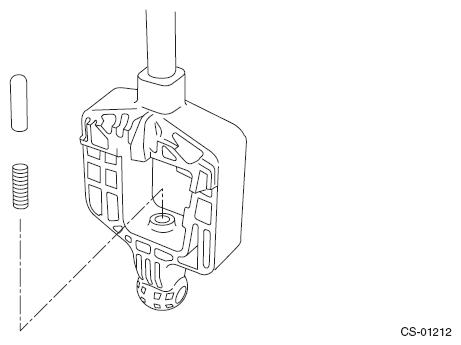

Remove the rod detent and detent spring from the select lever COMPL.

Fig 16: Identifying Rod Detent And Detent Spring
Courtesy of SUBARU OF AMERICA, INC.
