Grip ASSY

  1. Remove the cover grip AT.

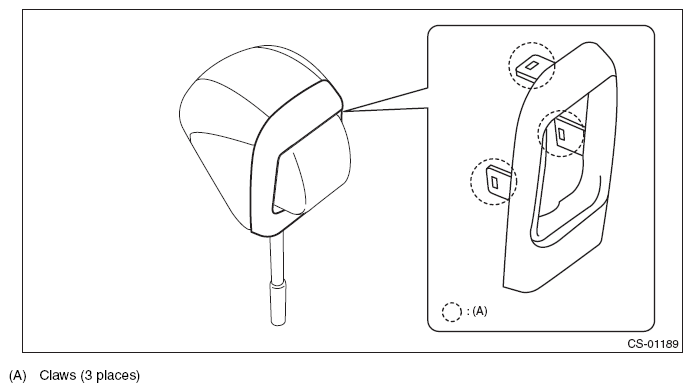

    Fig 1: Identifying Grip Assembly Claws
    G08578401Courtesy of SUBARU OF AMERICA, INC.
  2. Remove the button assembly-AT.

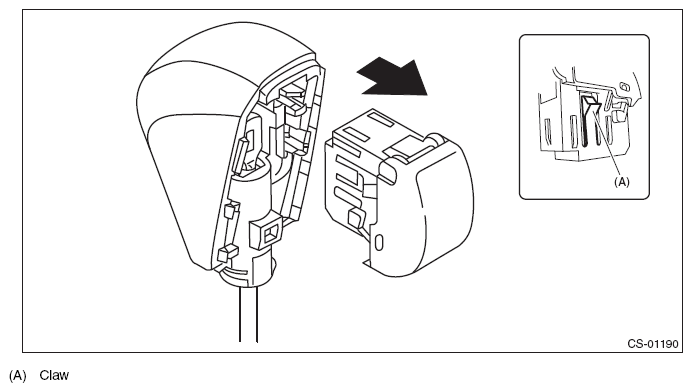

    Fig 2: Removing Button Assembly-AT
    G08578402Courtesy of SUBARU OF AMERICA, INC.
  3. Remove the rod COMPL.
