Remote Control Mirror System
REMOTE CONTROL MIRROR SYSTEMWIRING DIAGRAM

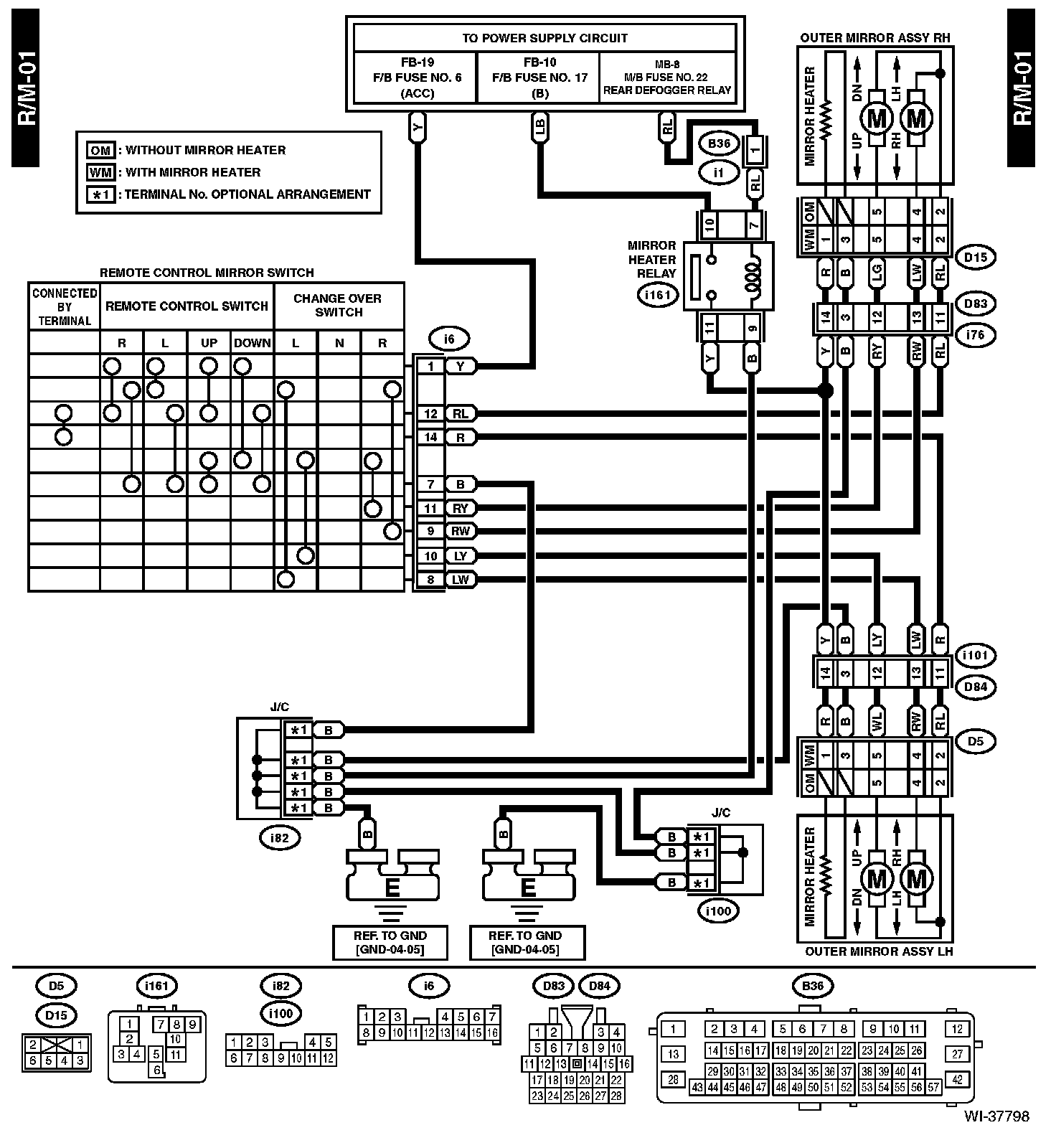

WITHOUT ELECTRIC RETRACTION SYSTEM

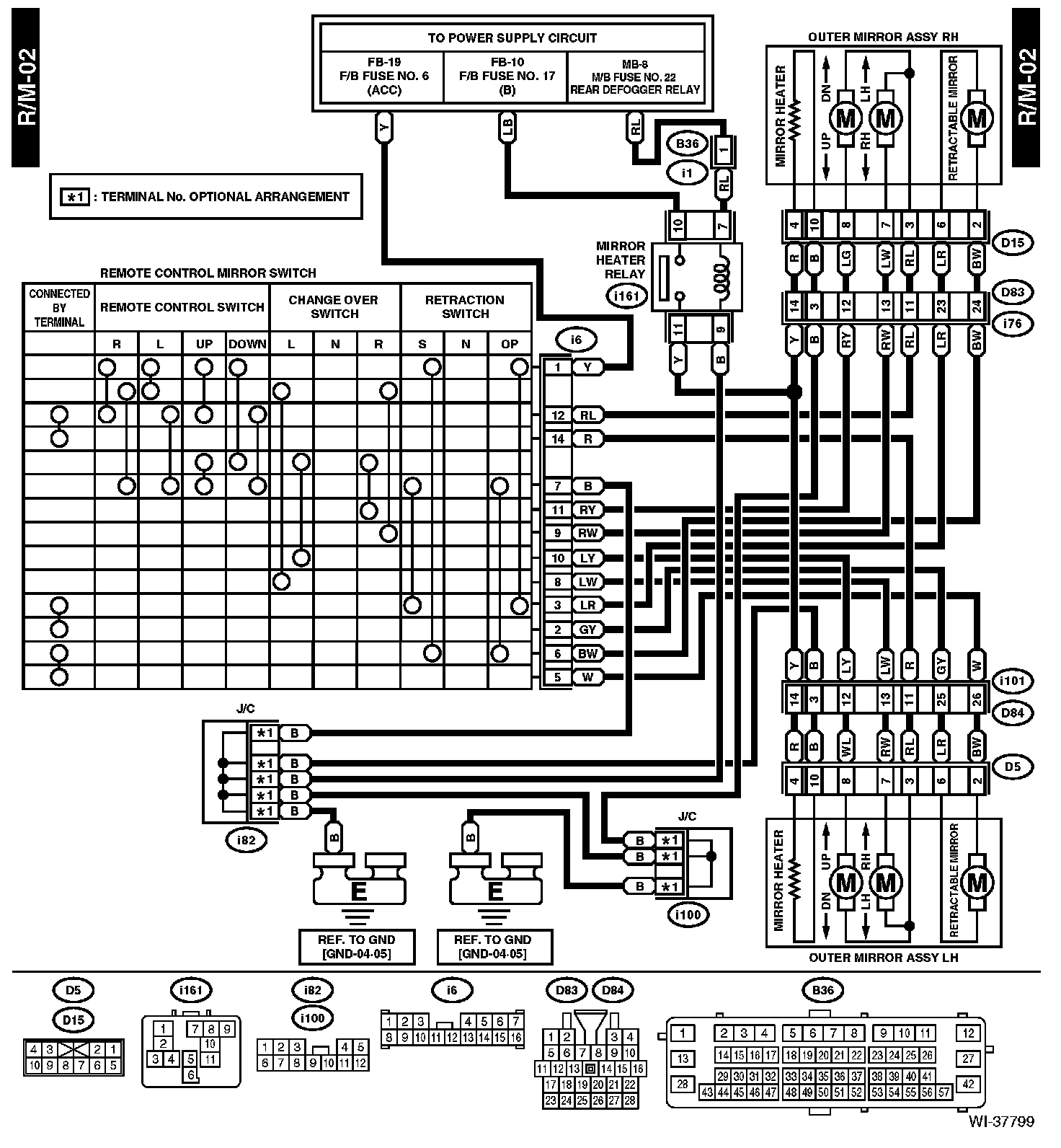

WITH ELECTRIC RETRACTION SYSTEM
Connector and Ground Locations: The locations of the Connectors or Grounds shown within these diagrams can be found via the connector or ground number at Vehicle Locations. Locations
