System Overview Schematic
ENGINE ELECTRICAL SYSTEM

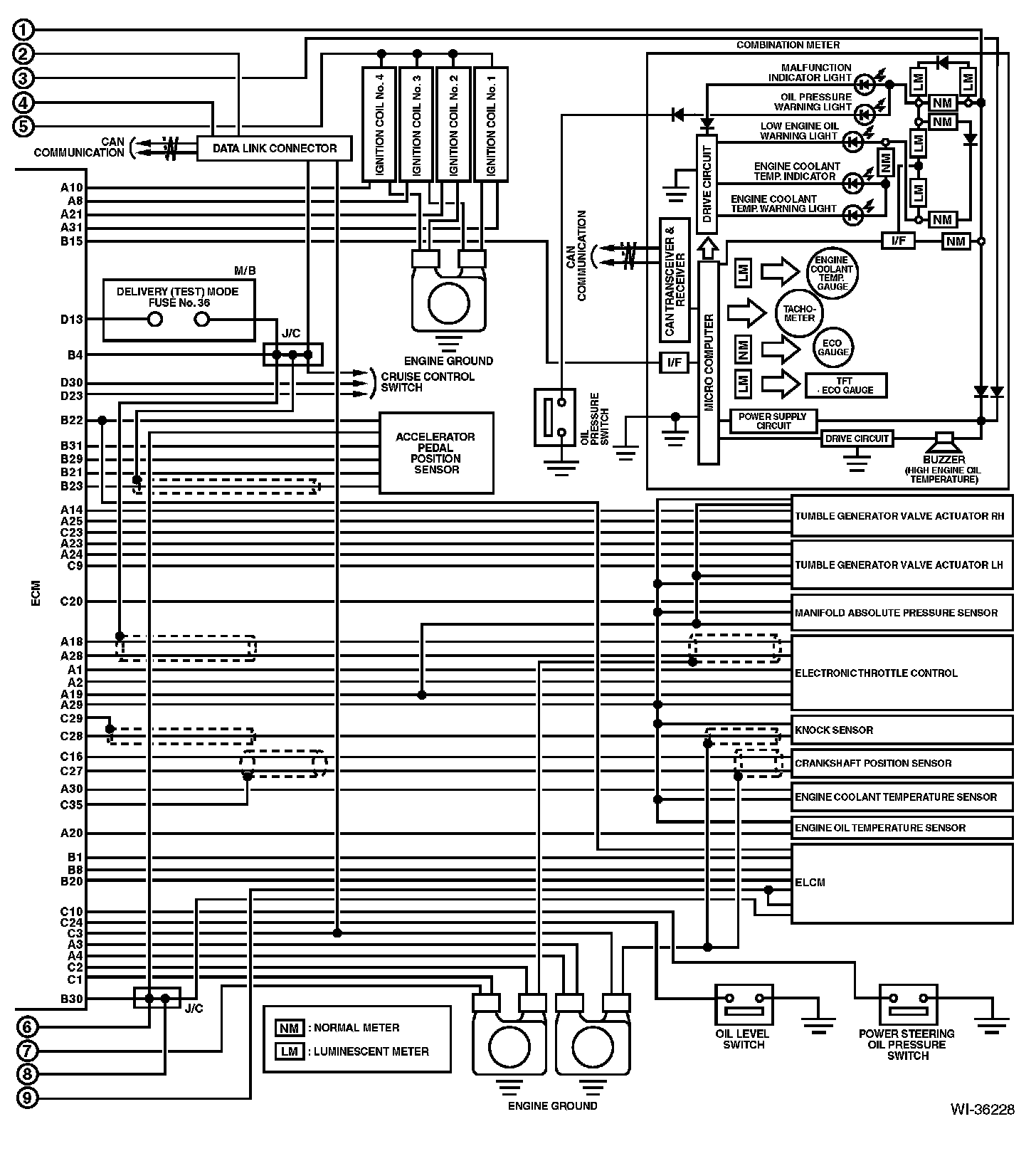

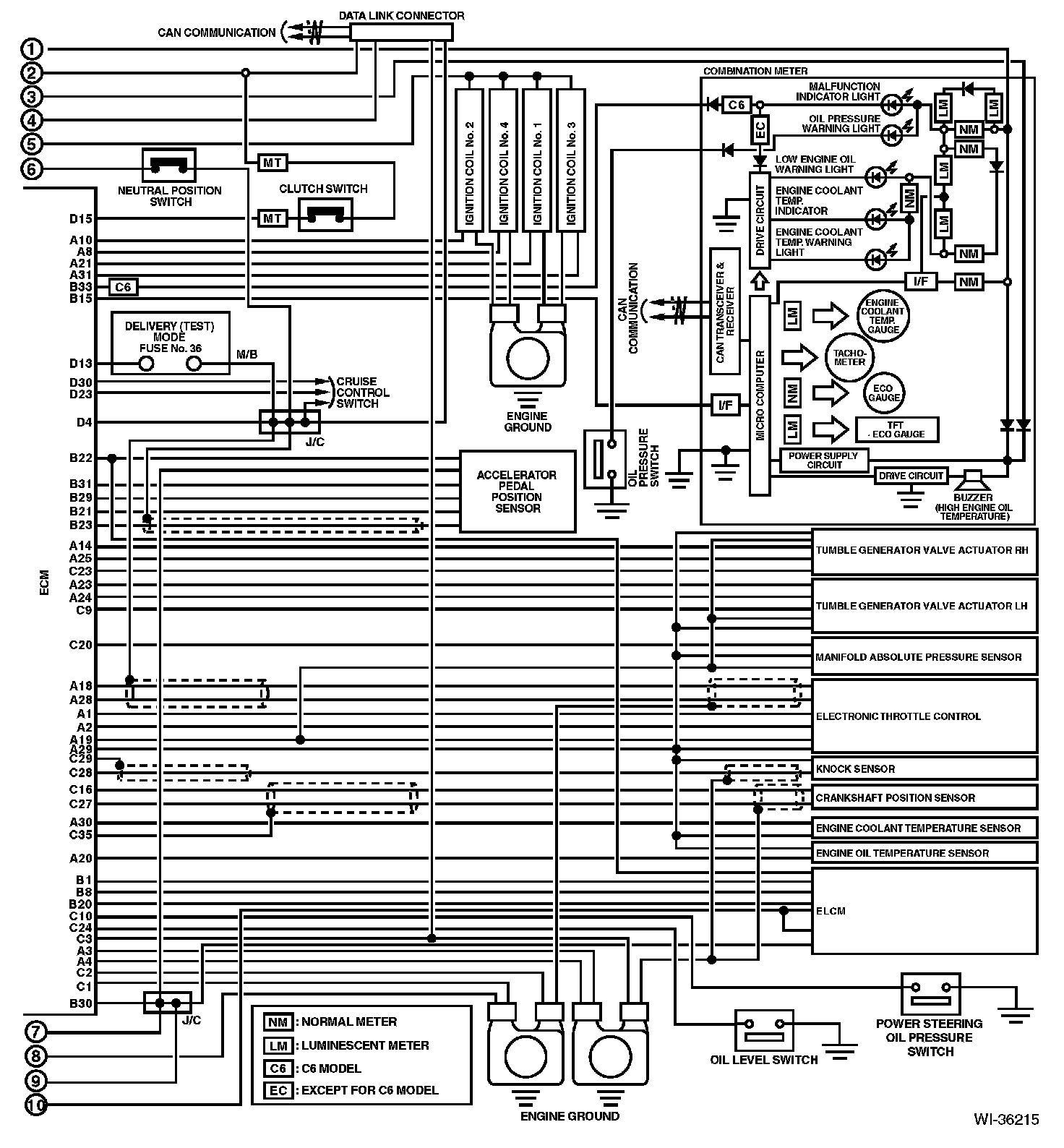

2.5 L MODEL (WITHOUT PUSH BUTTON START)

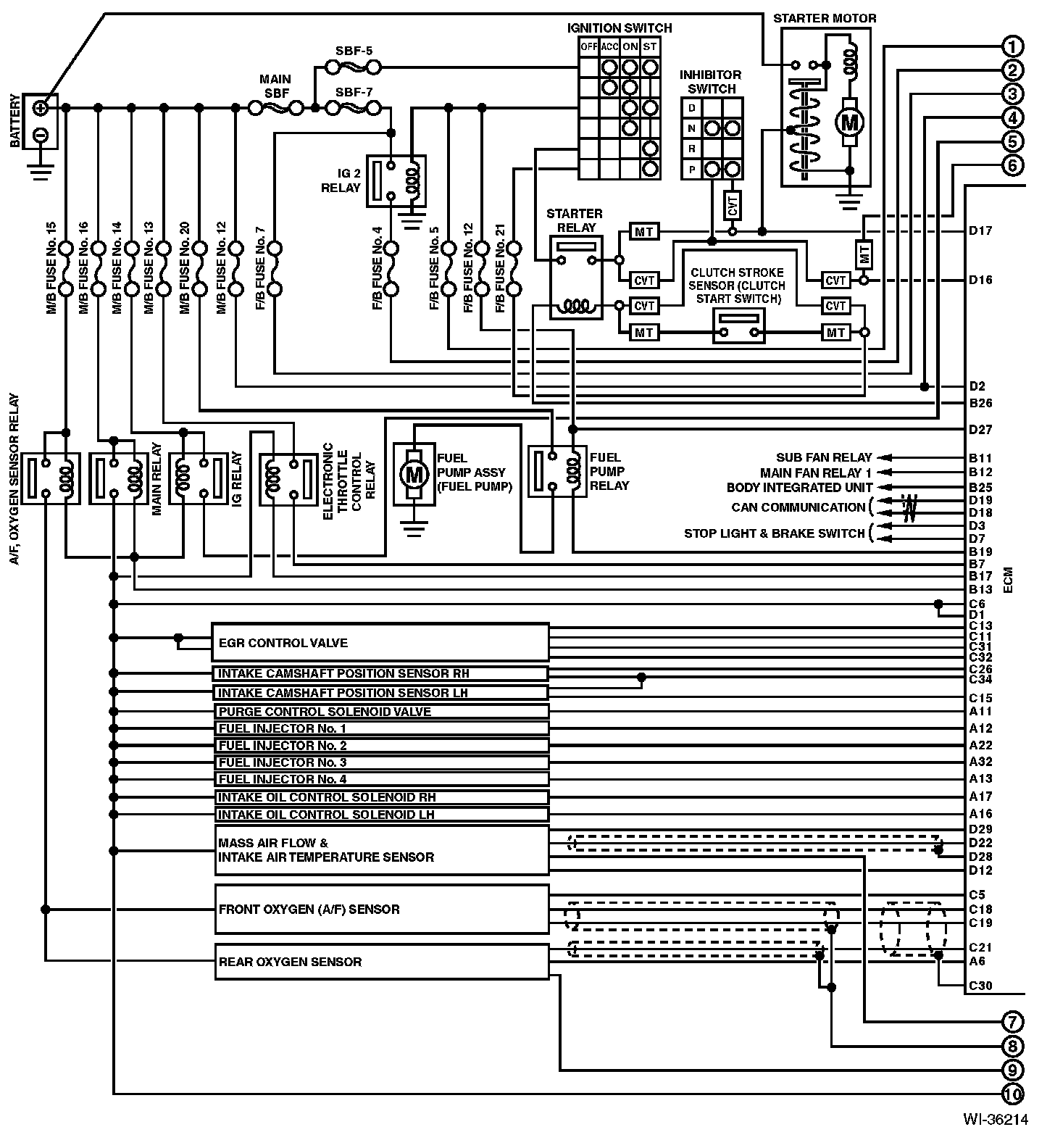

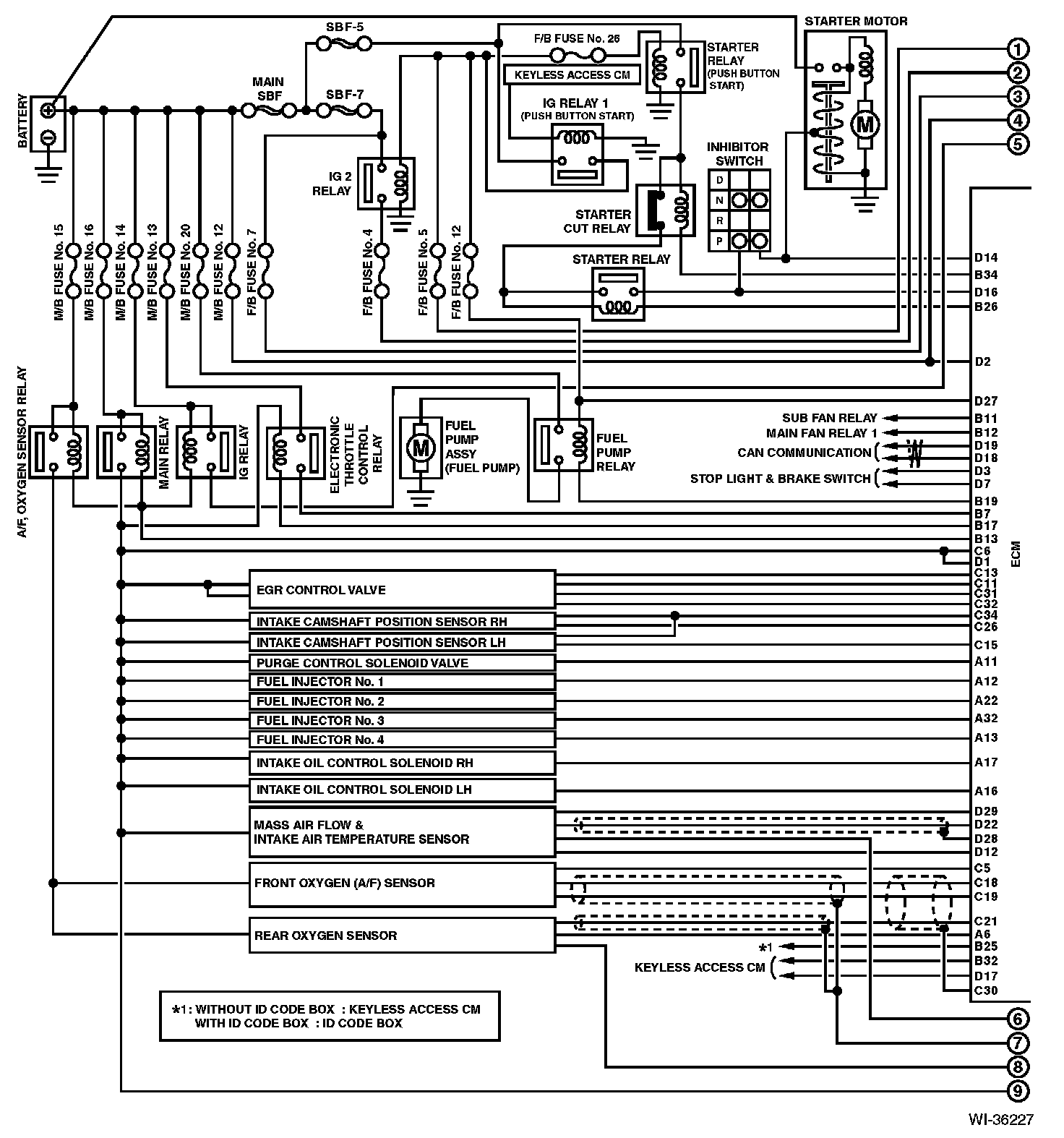

2.5 L MODEL (WITH PUSH BUTTON START)
