AT Shift Lock Control System
AT Shift Lock Control System
LOCATION

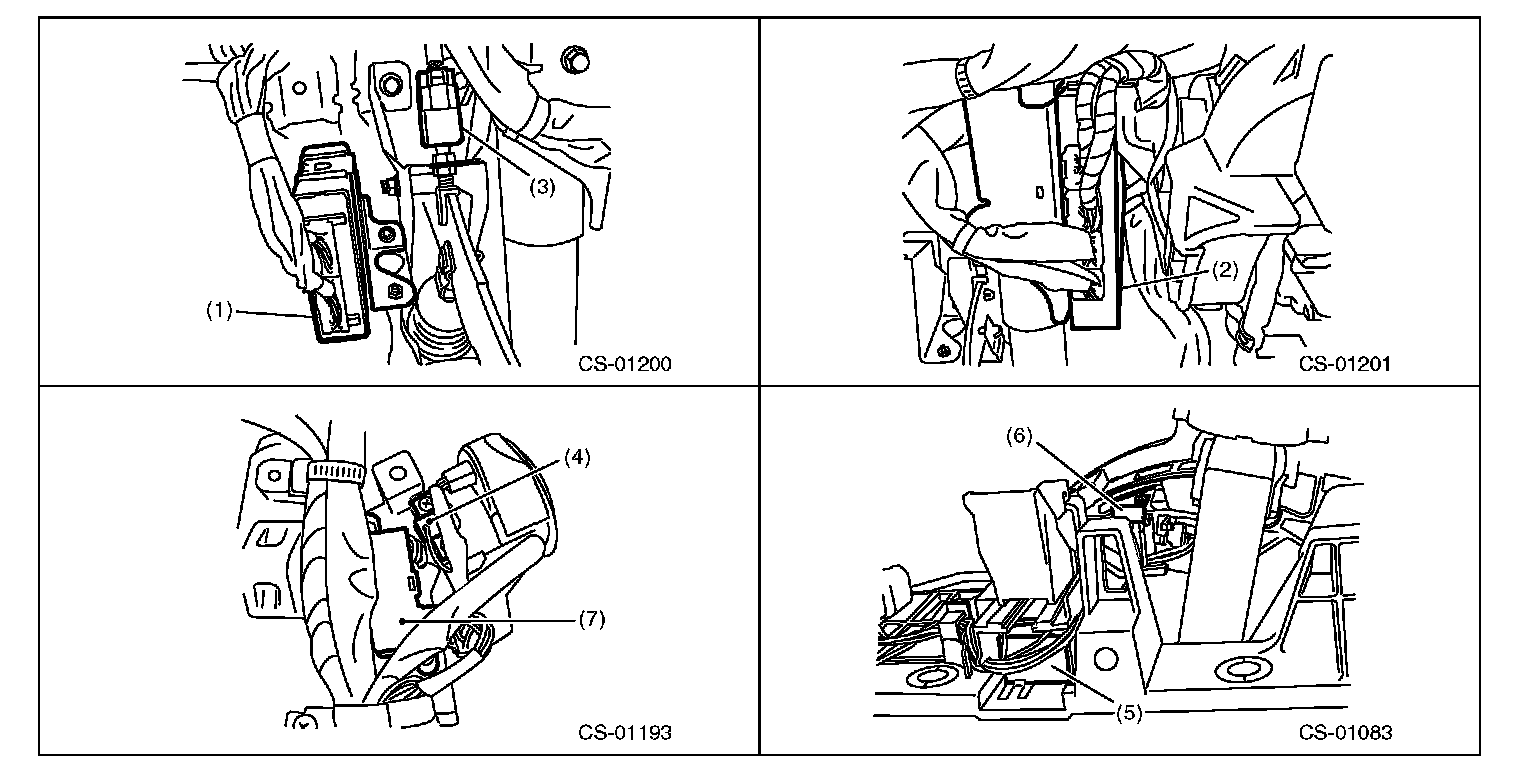

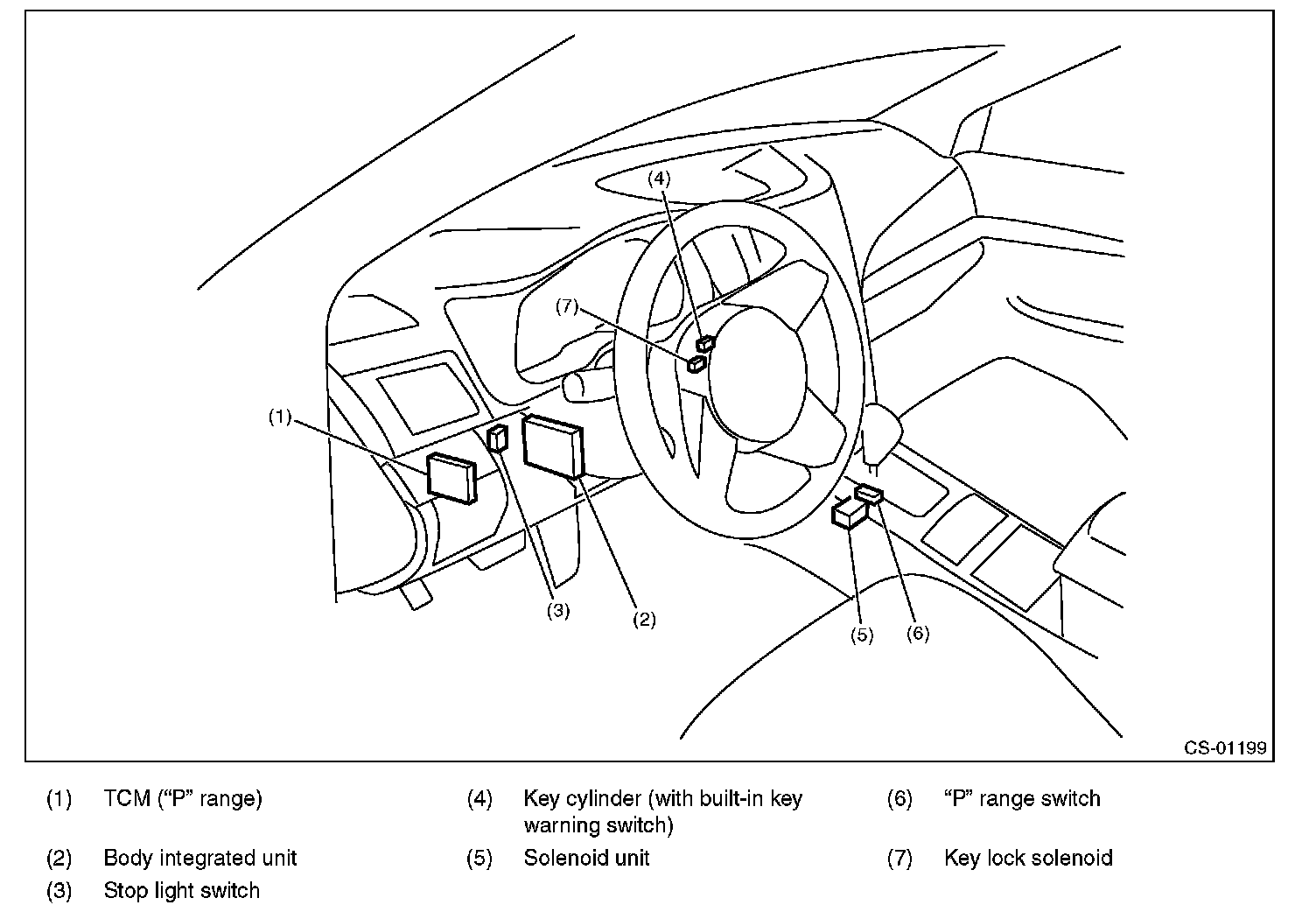

MODEL WITHOUT PUSH BUTTON IGNITION SWITCH

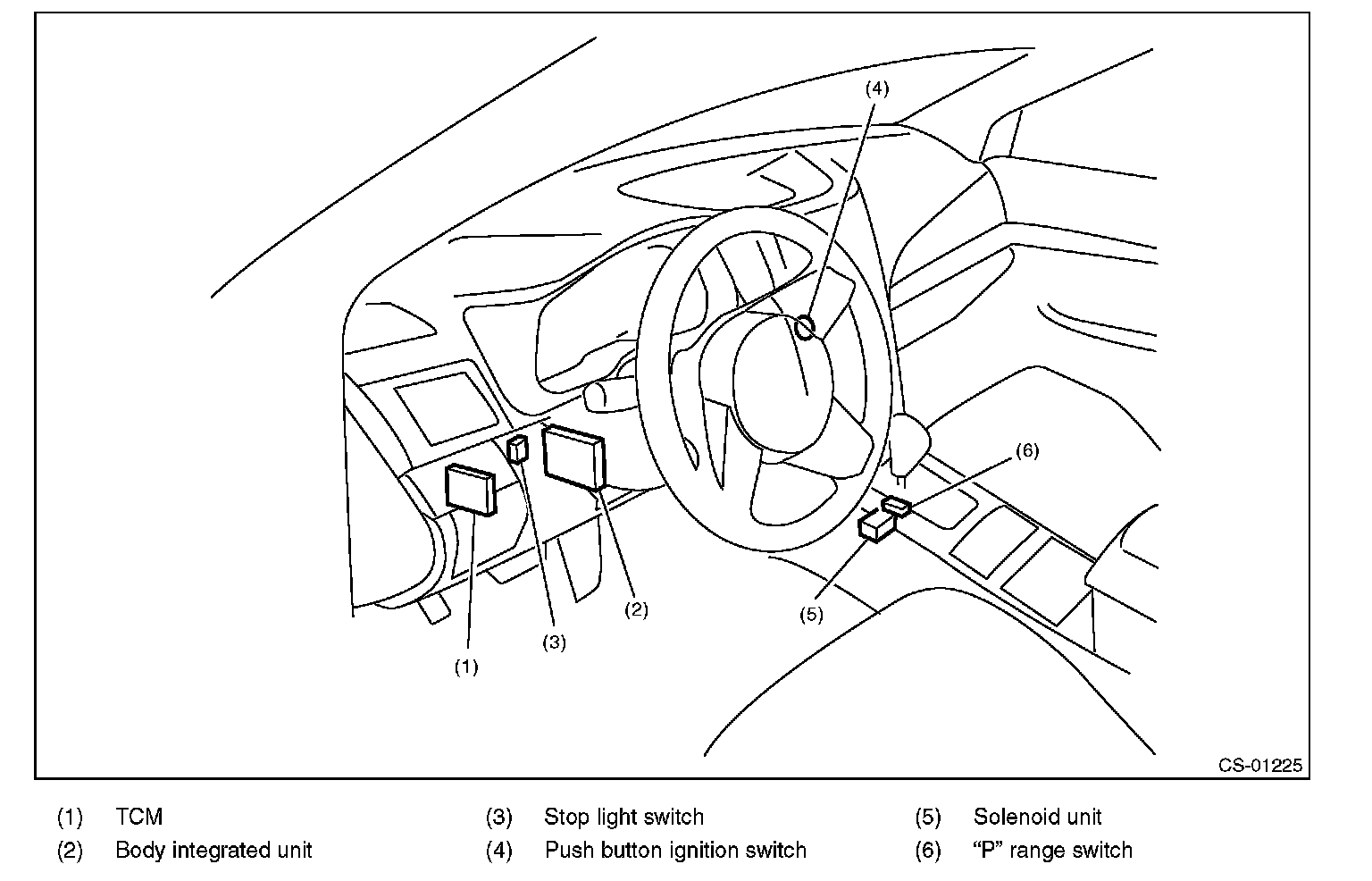

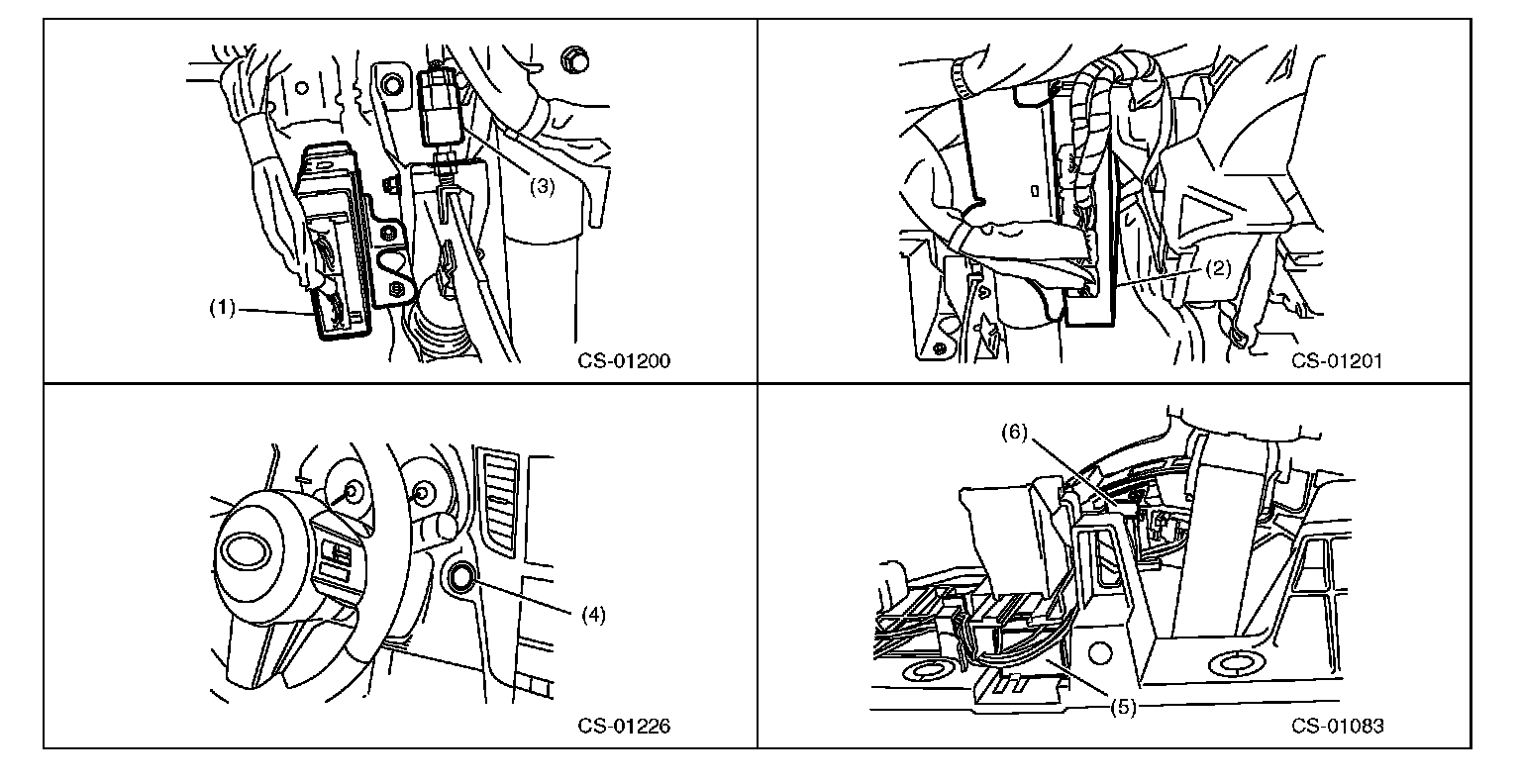

MODEL WITH PUSH BUTTON IGNITION SWITCH
