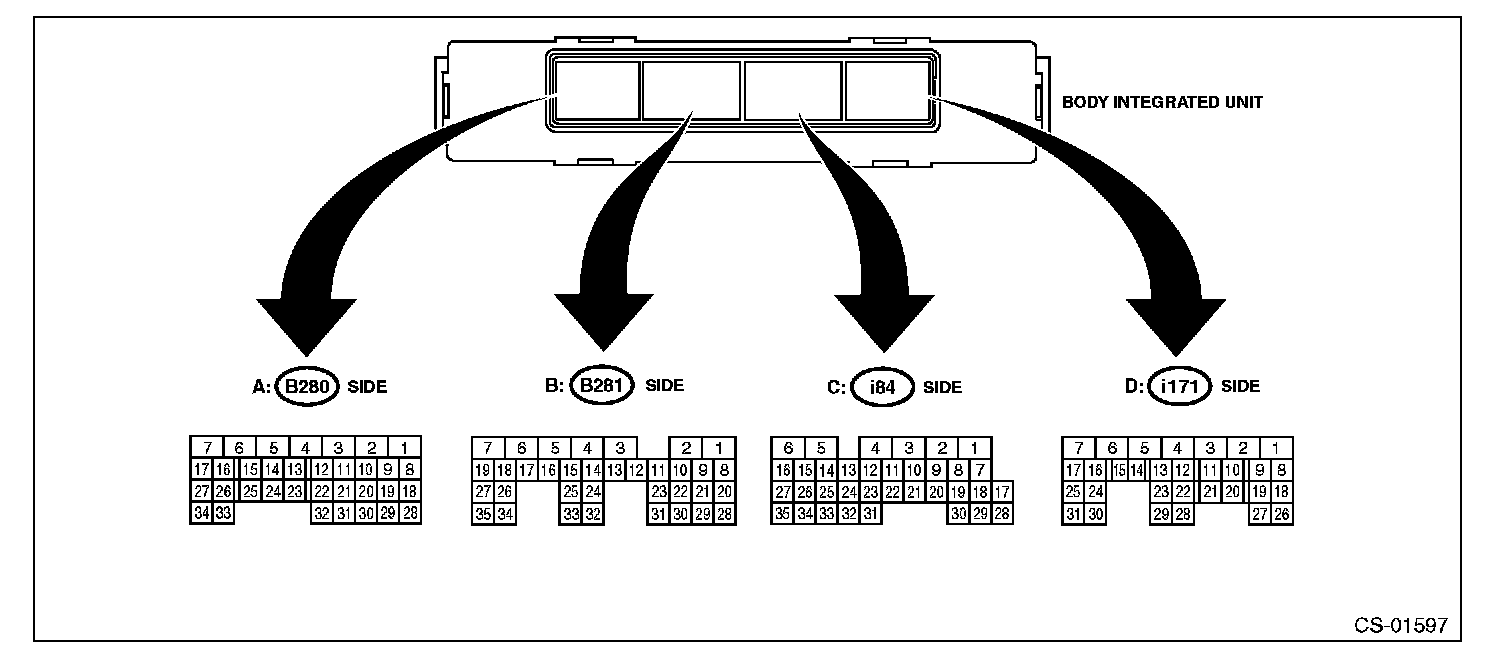

Control Module Pinout Values

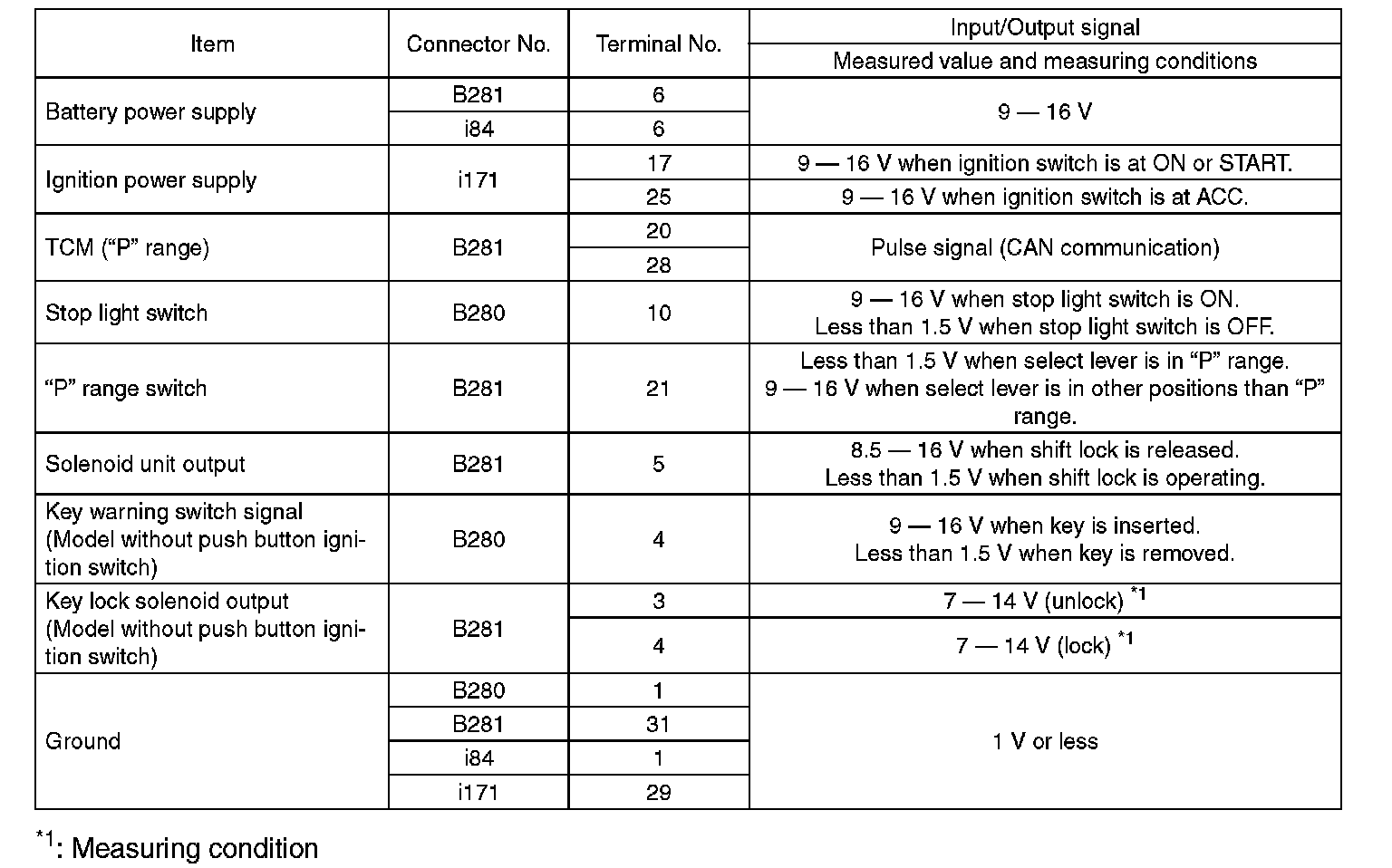

ELECTRICAL SPECIFICATION

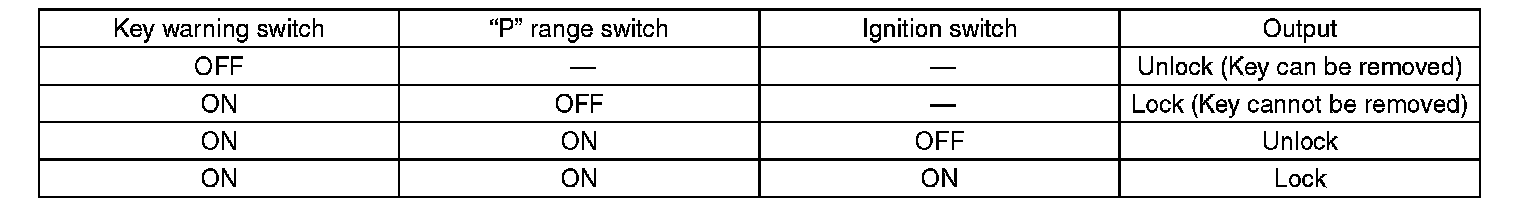

Key lock solenoid output signal

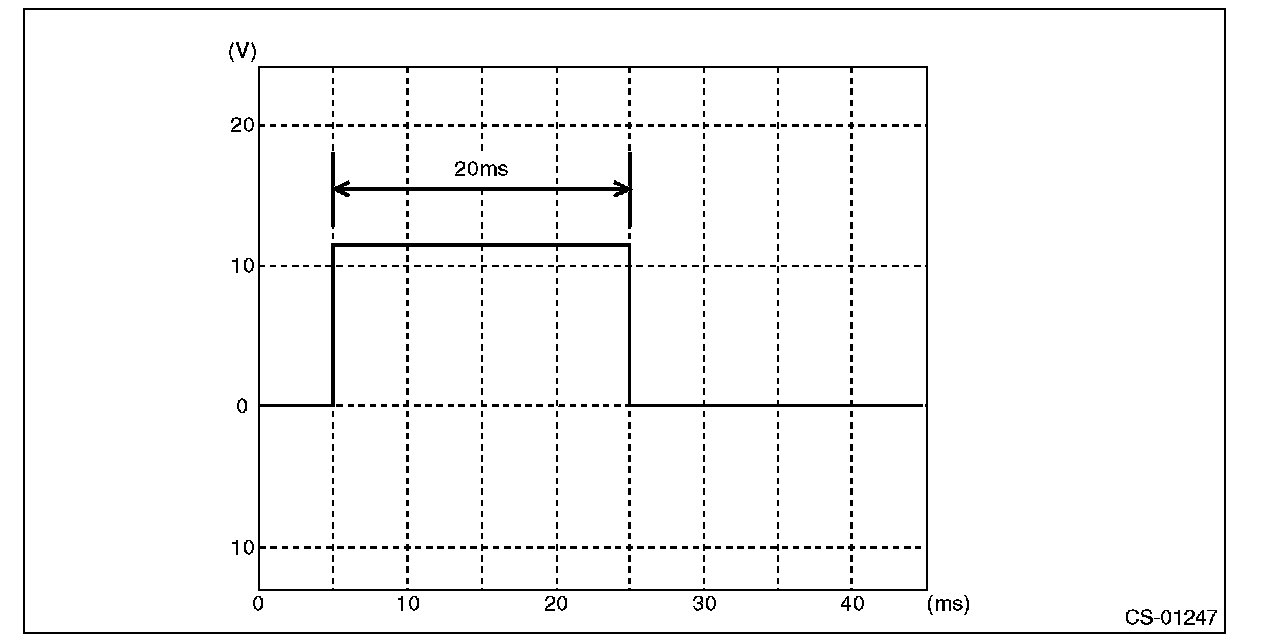

Output Signal for Unlock

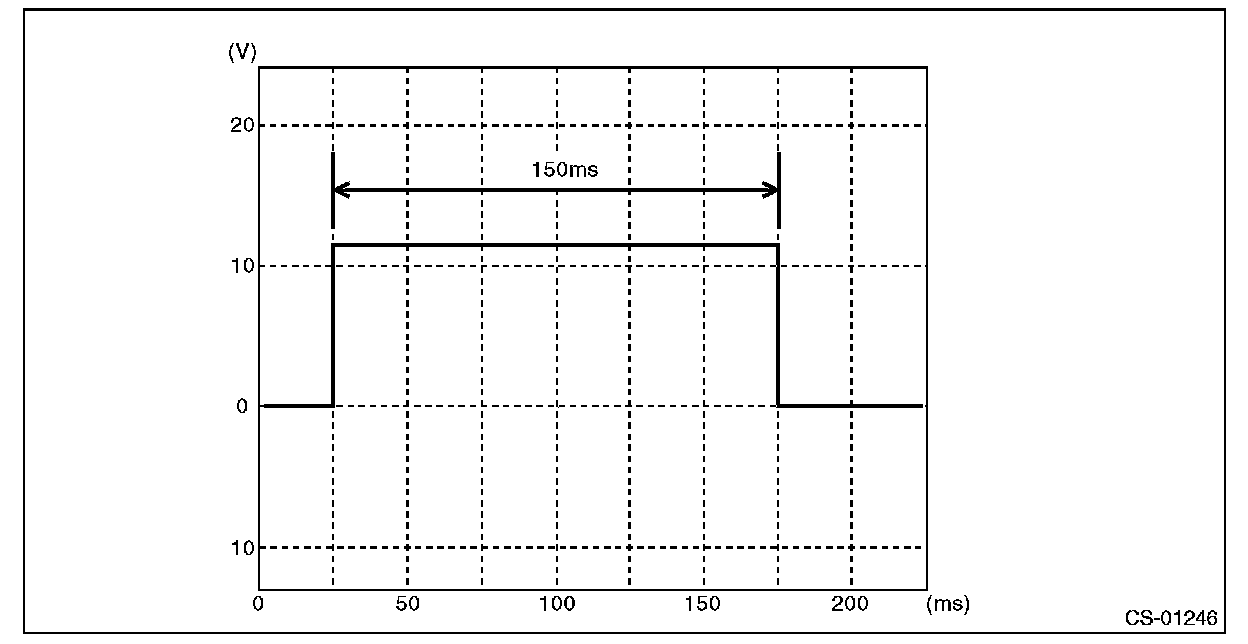

Output Signal for Lock
