Keyless Entry System

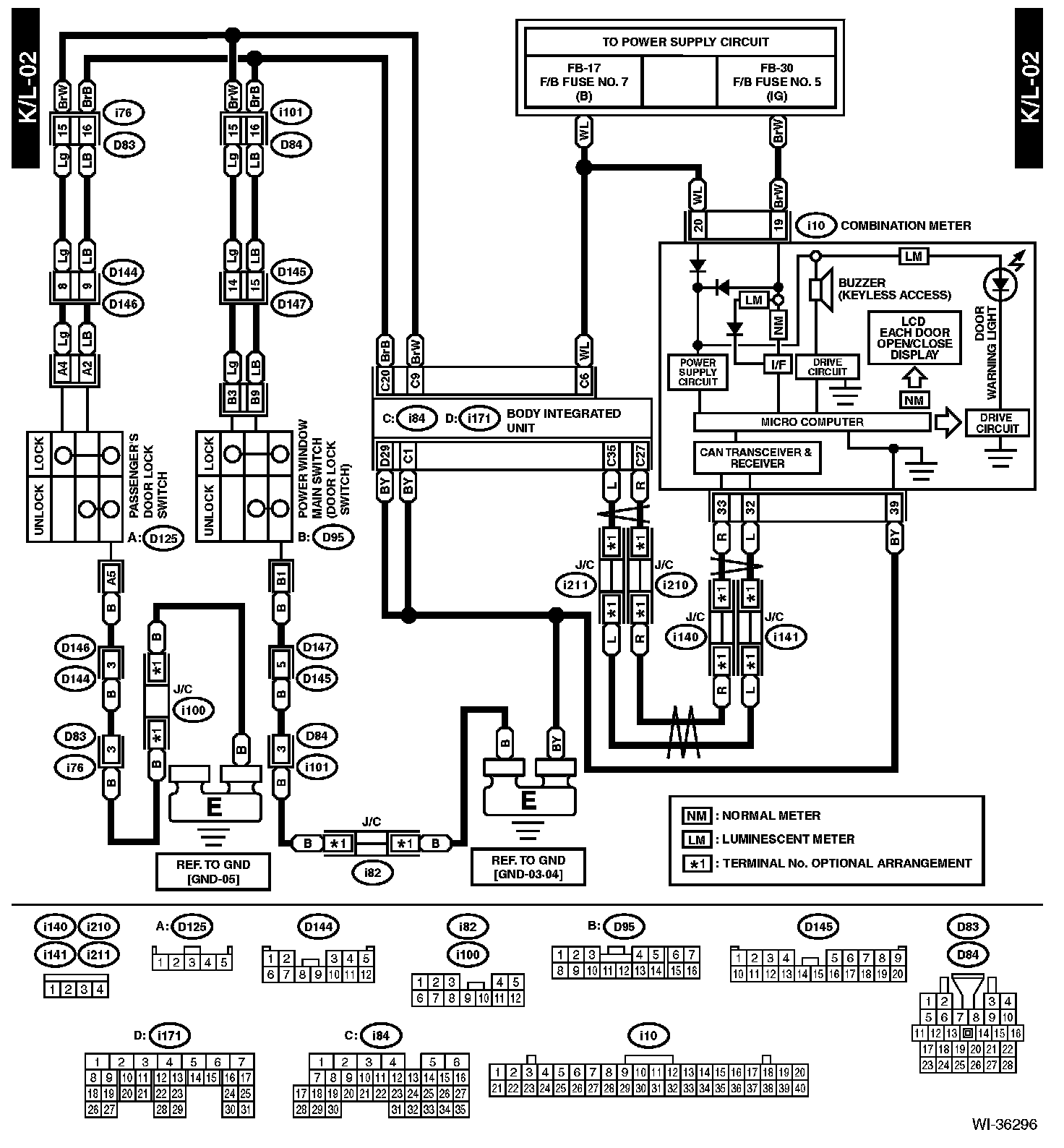

KEYLESS ENTRY SYSTEMWIRING DIAGRAM
Connector and Ground Locations: The locations of the Connectors or Grounds shown within these diagrams can be found via the connector or ground number at Vehicle Locations. Locations

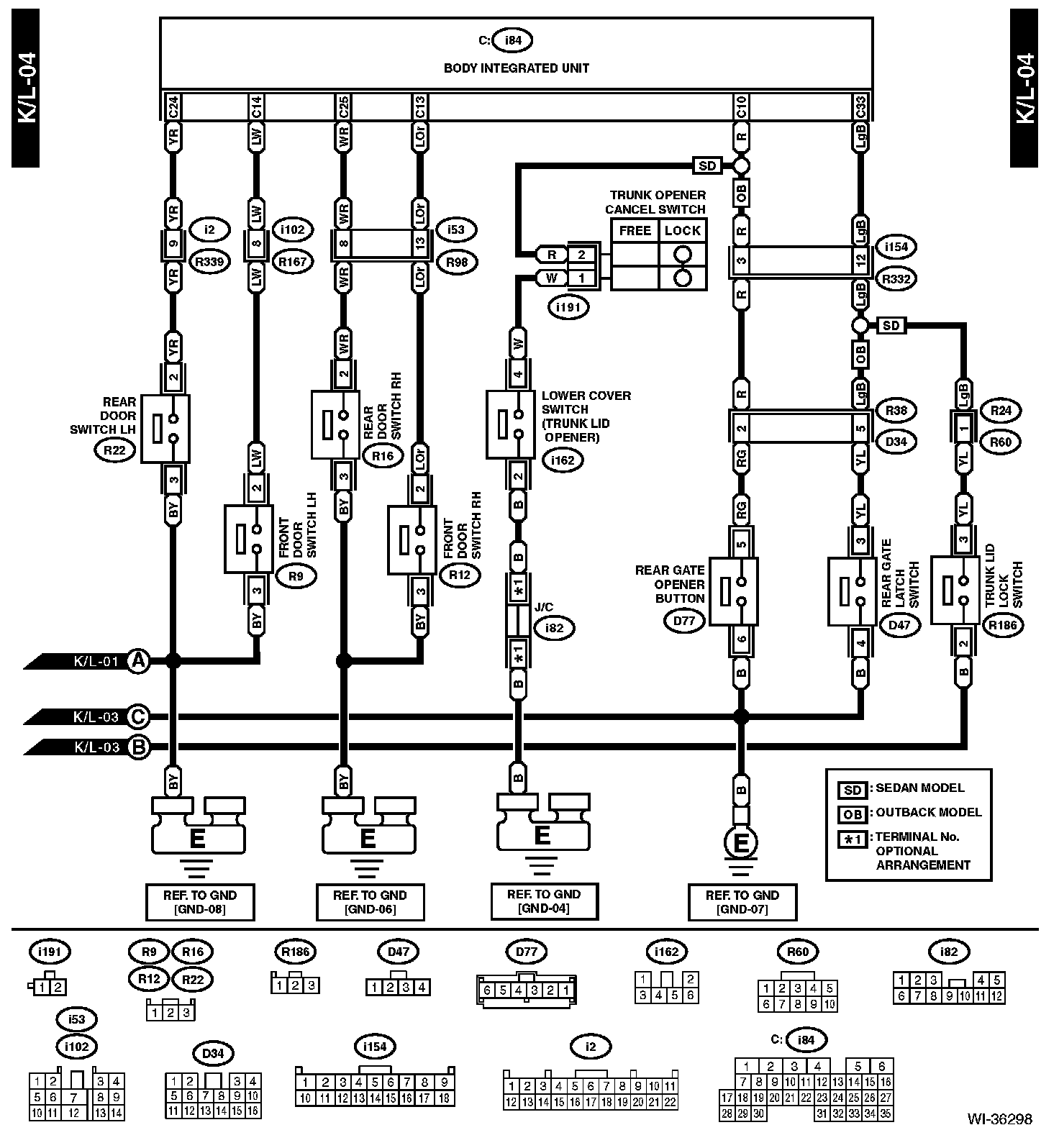

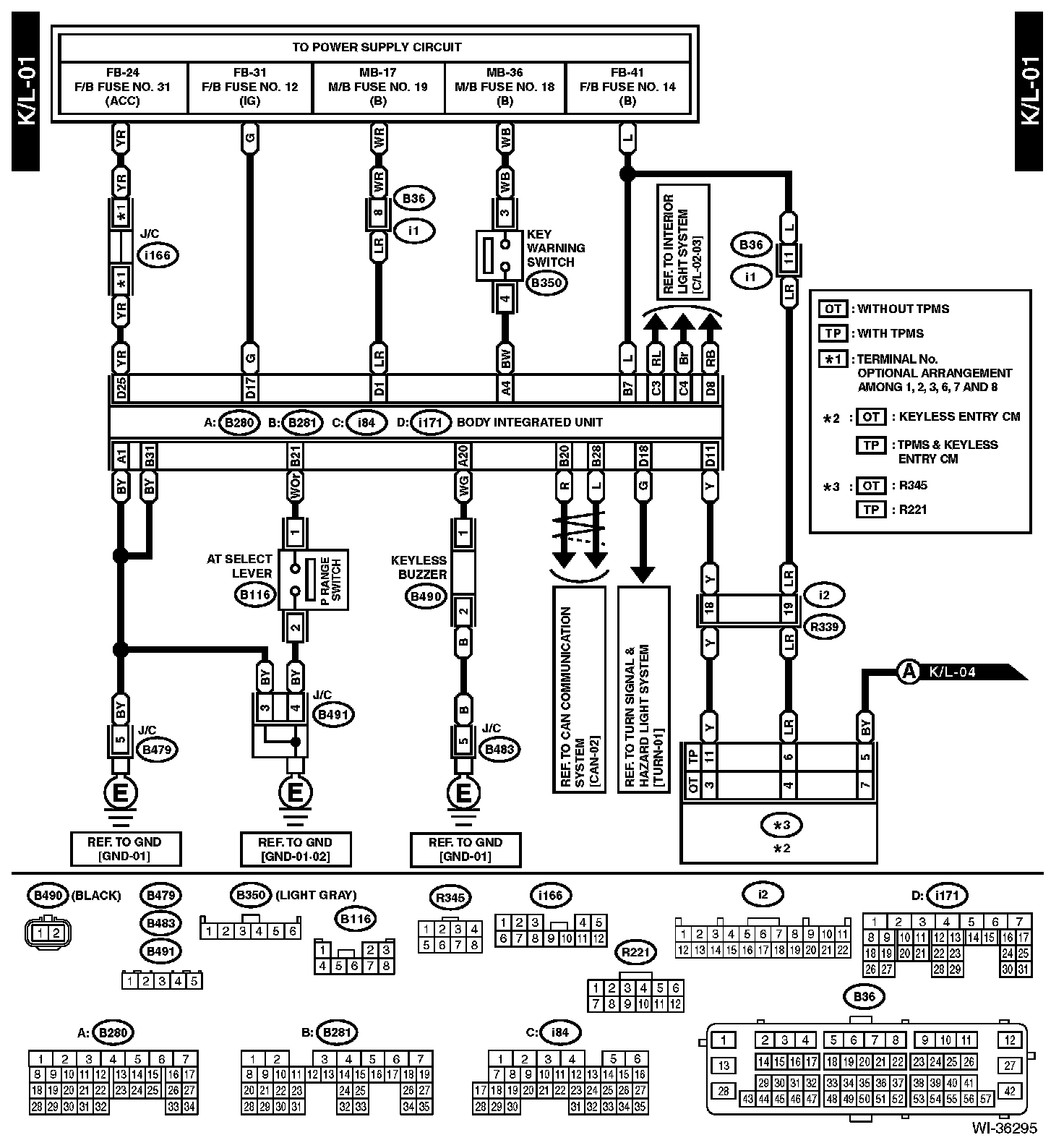

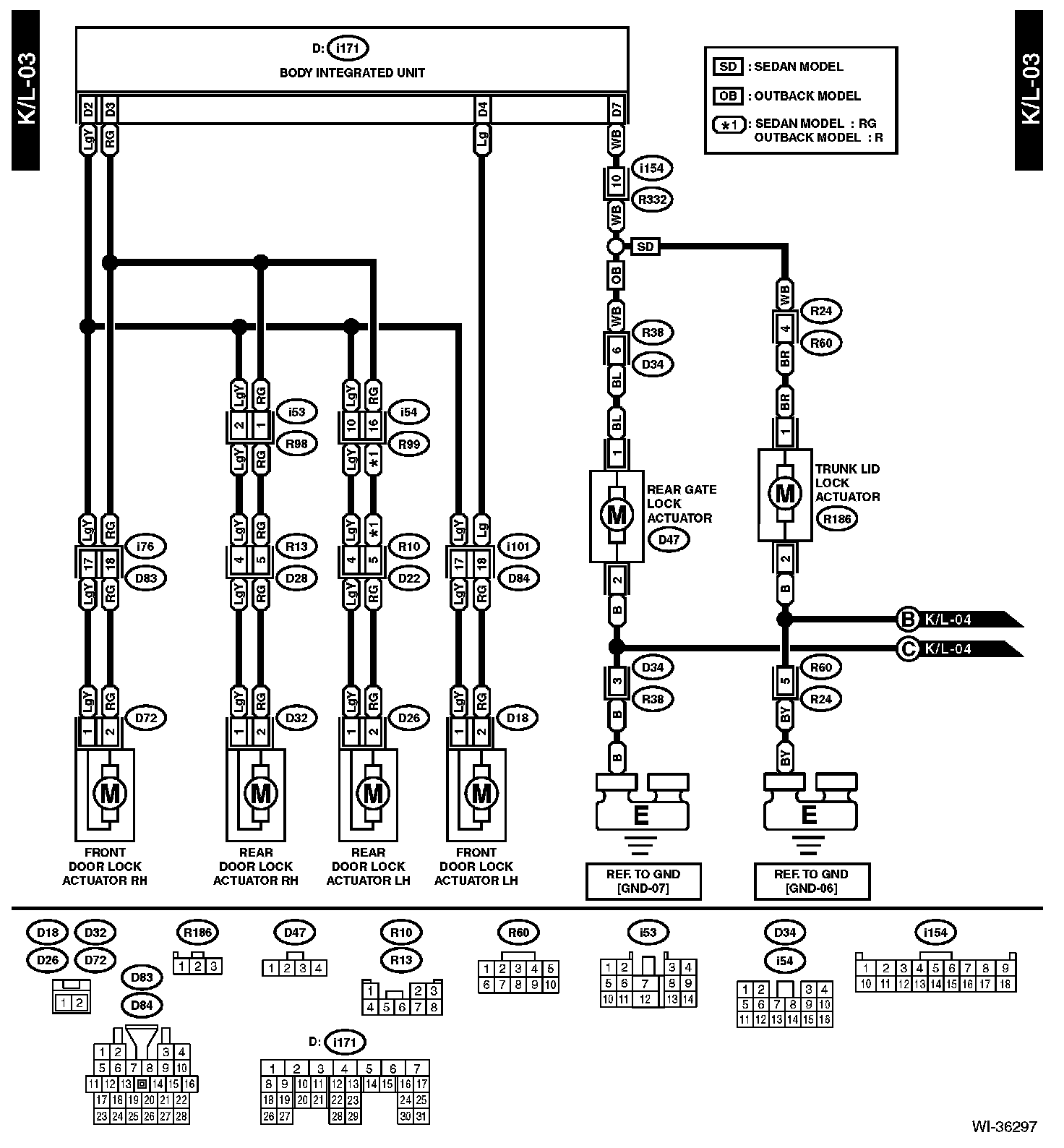

WIRING DIAGRAM
Connector and Ground Locations: The locations of the Connectors or Grounds shown within these diagrams can be found via the connector or ground number at Vehicle Locations. Locations
