Control Module I/O Signal

Control Module I/O Signal

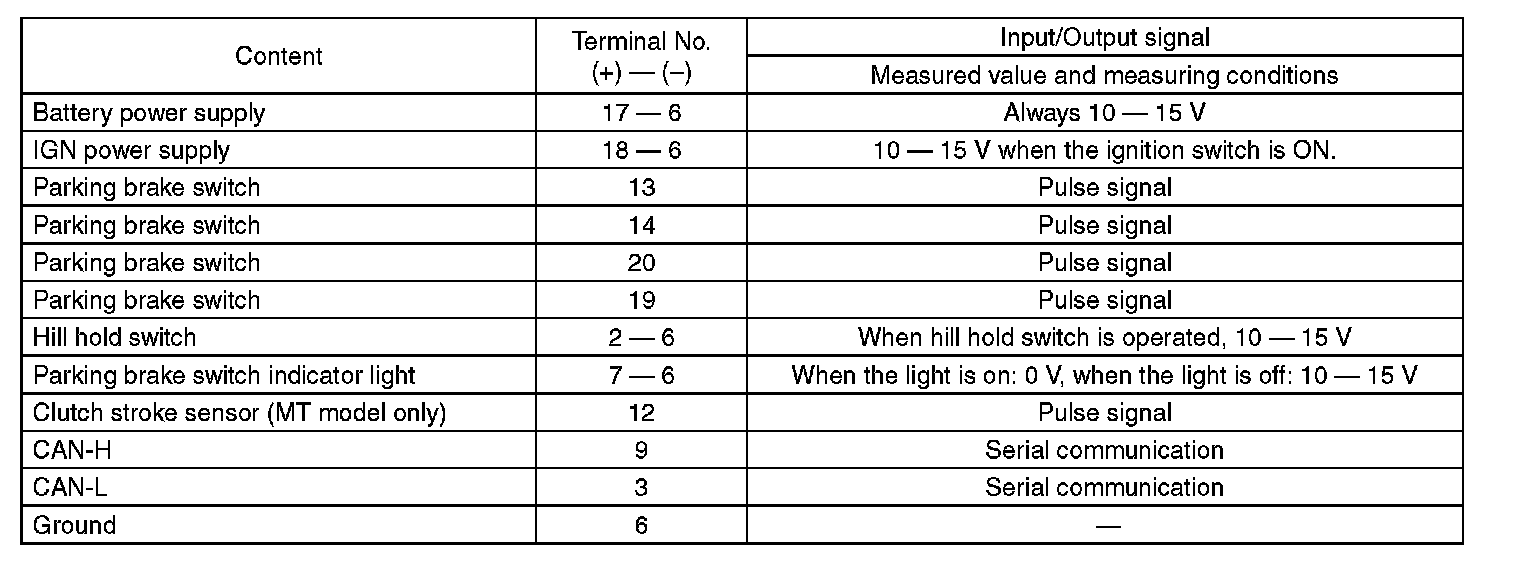

ELECTRICAL SPECIFICATION





NOTE:

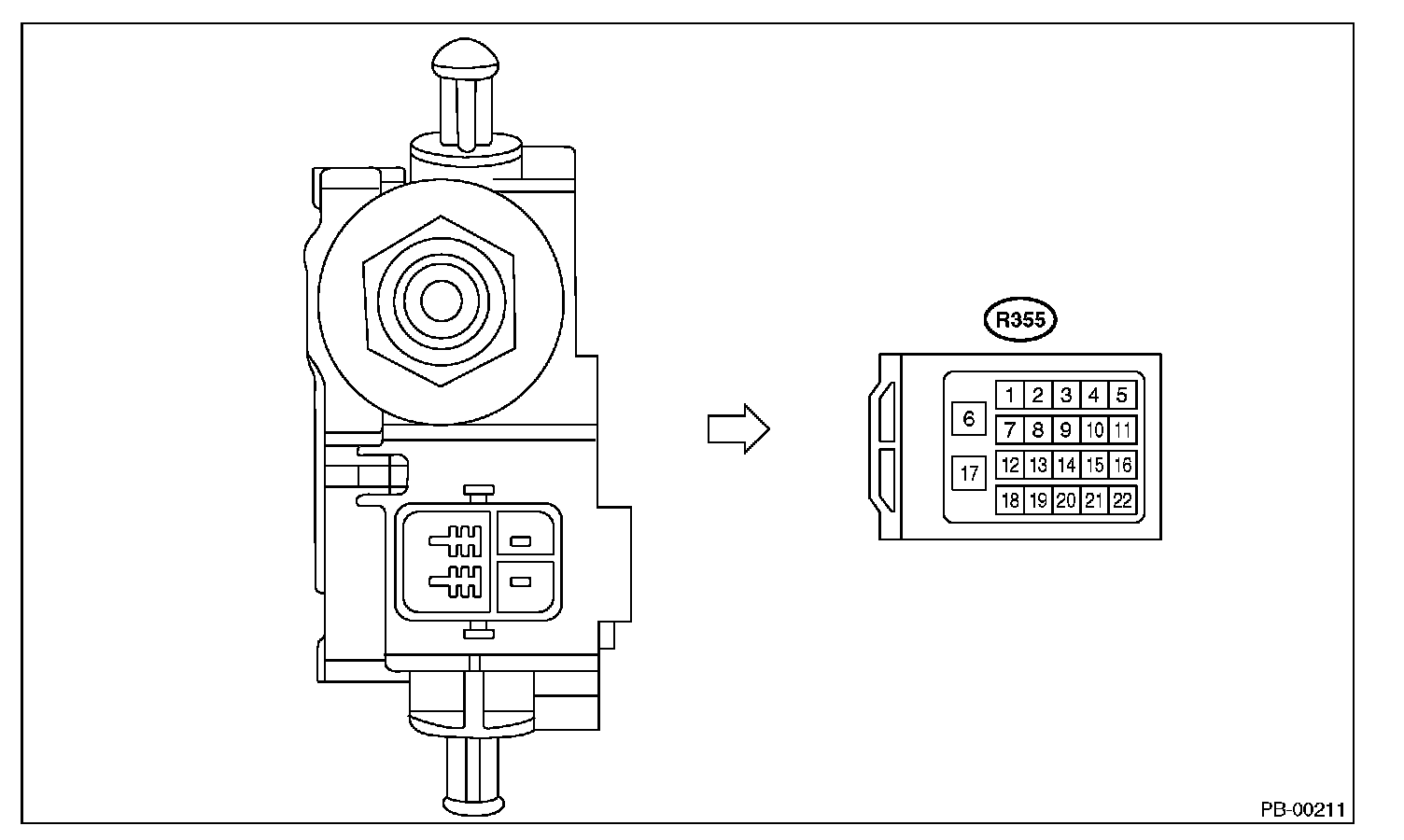

The terminal numbers of the electronic parking brake control module connectors are as indicated in the figure.
