System Overview Schematic
ENGINE ELECTRICAL SYSTEM

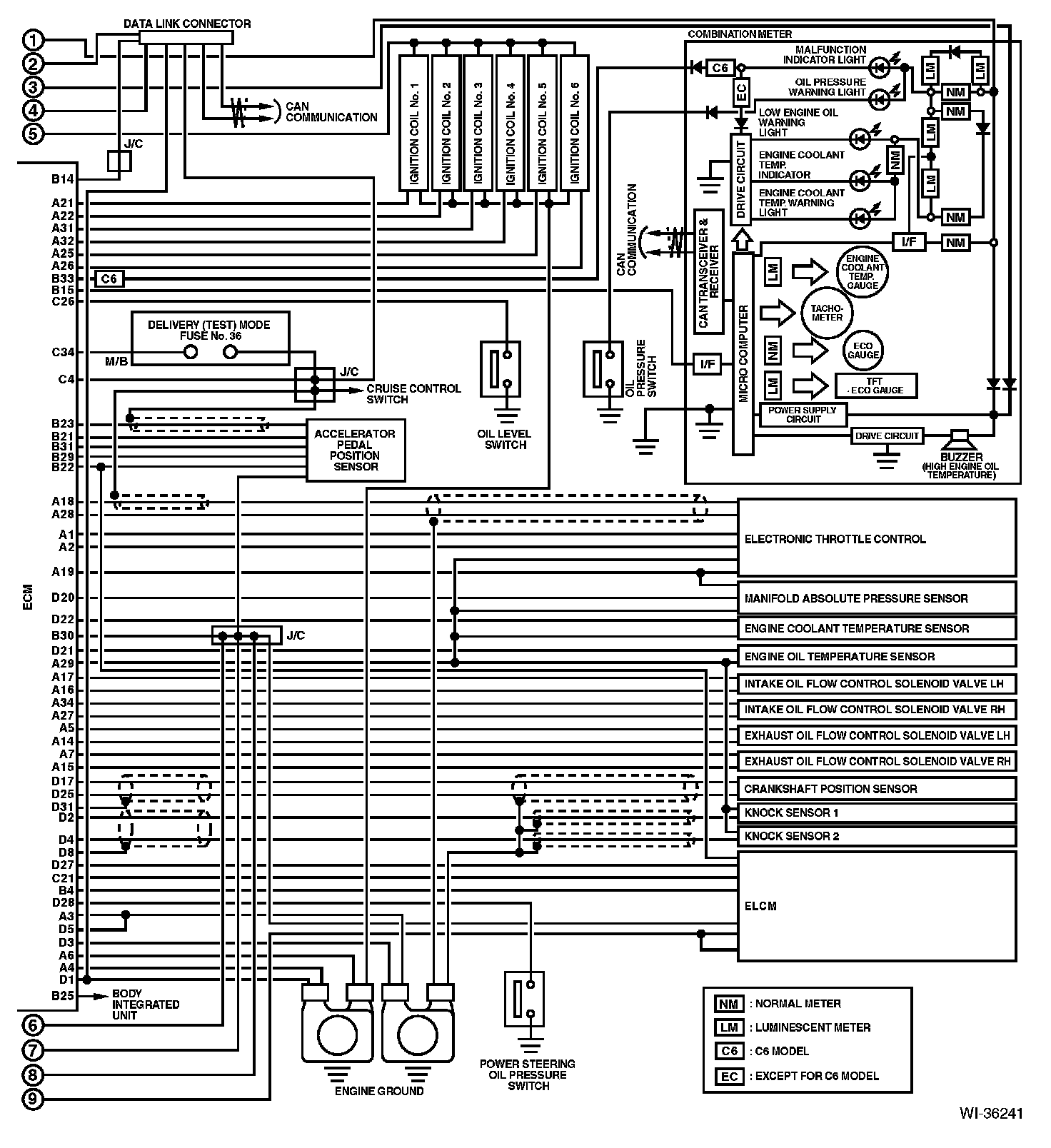

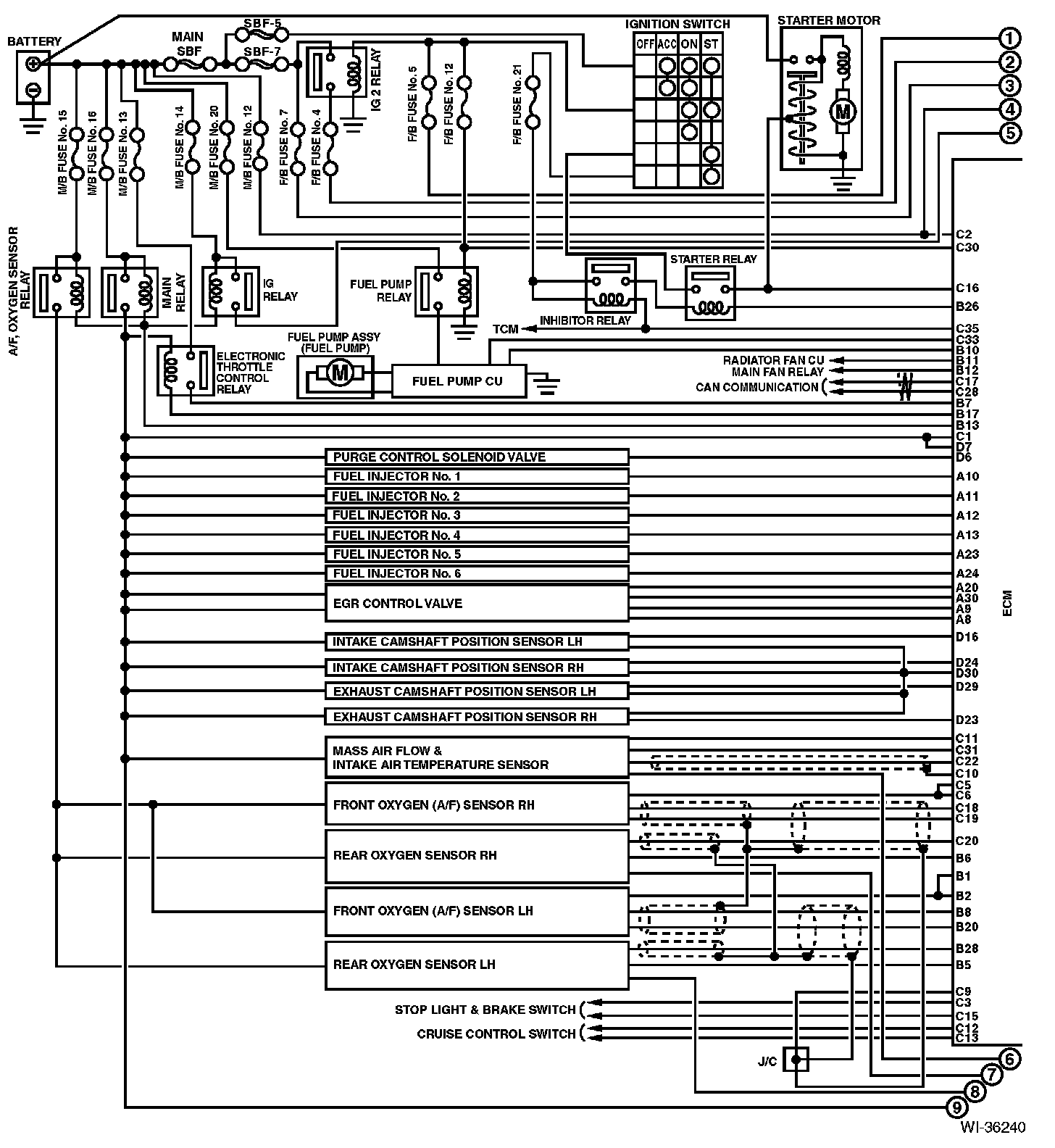

3.6 L MODEL (WITHOUT PUSH BUTTON START)

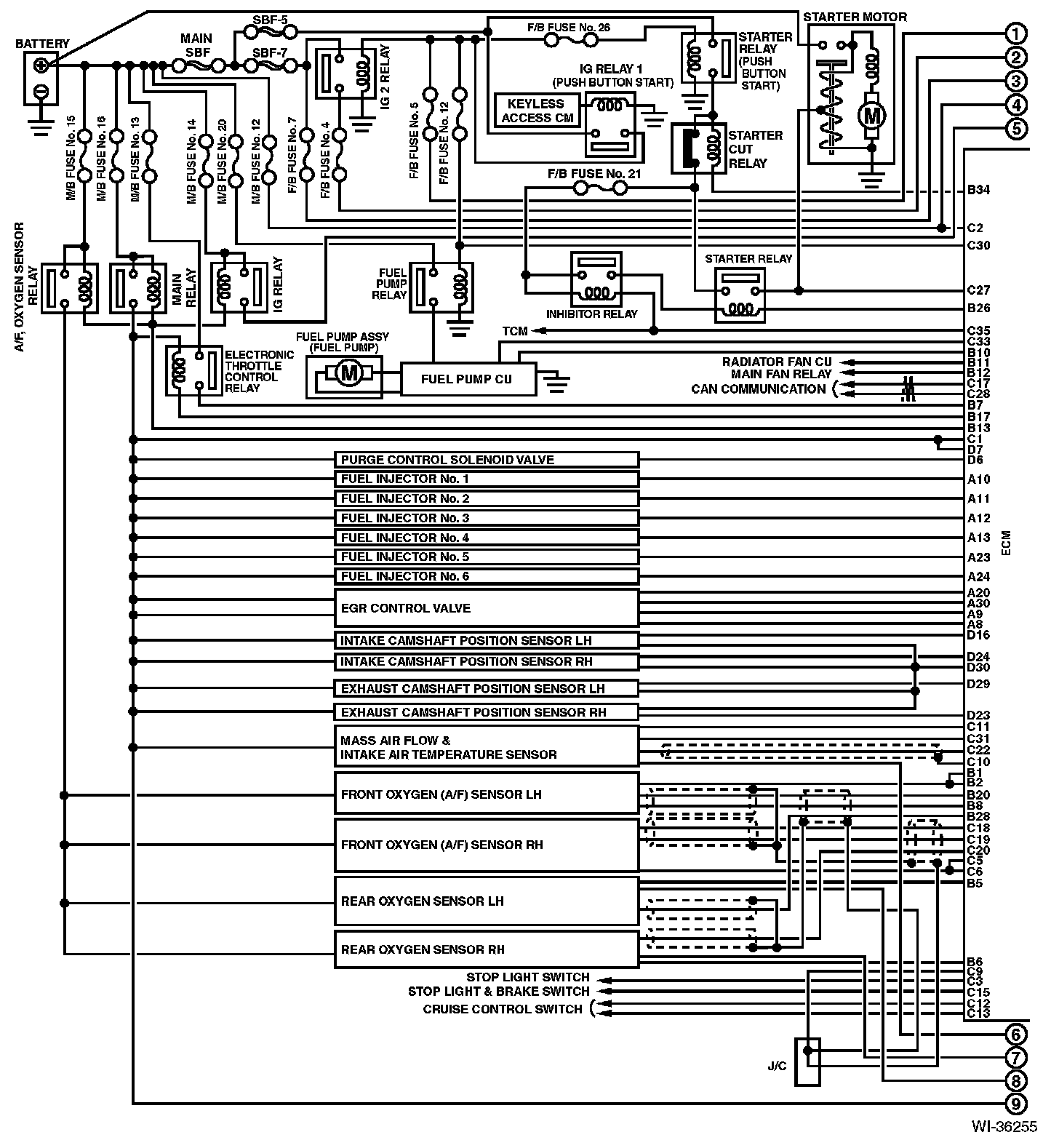

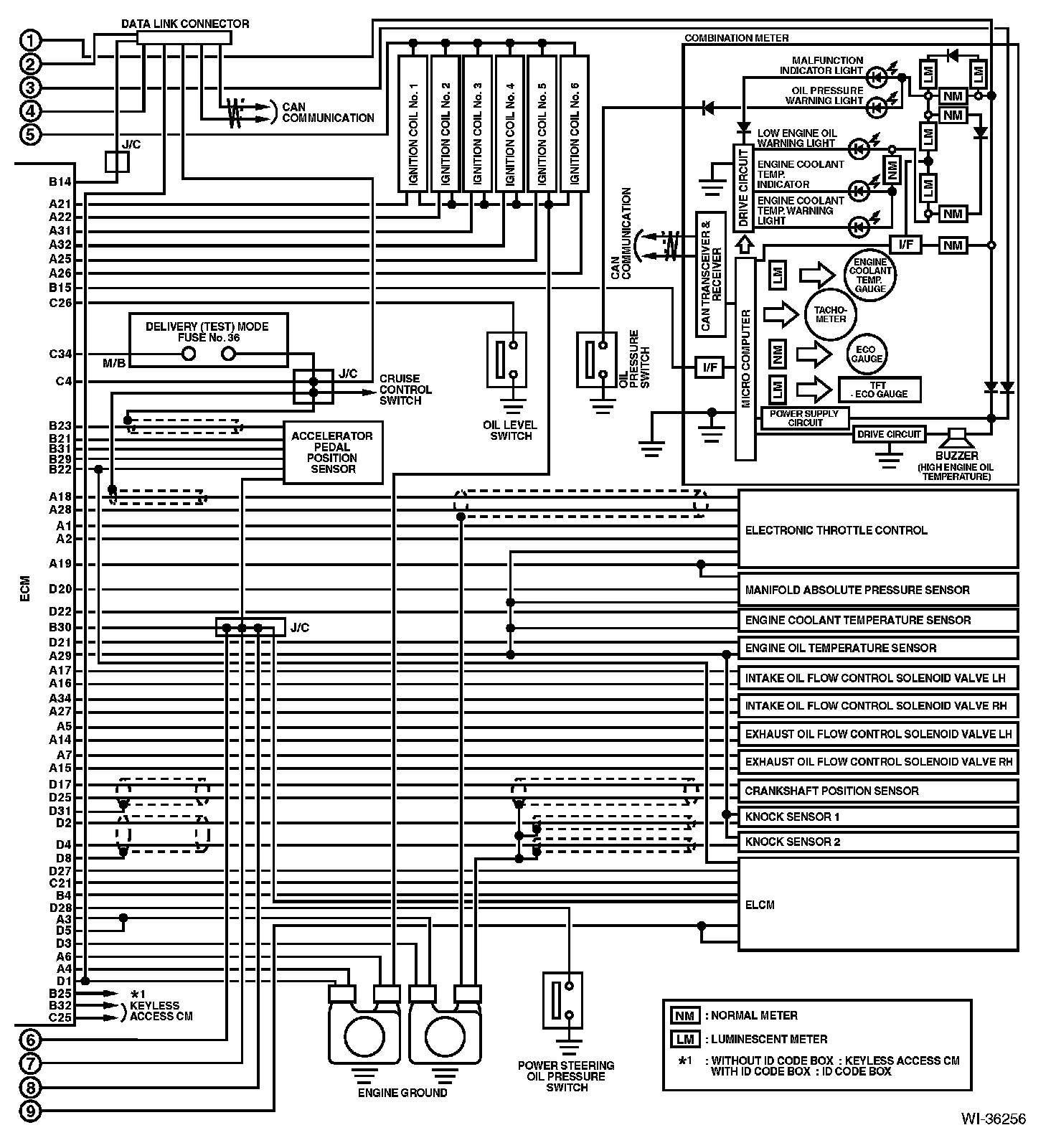

3.6 L MODEL (WITH PUSH BUTTON START)
