Fuel Damper: Removal

WARNING: Place "NO OPEN FLAMES" signs near the working area.
CAUTION:
  • Be careful not to spill fuel.
  • Catch the fuel from hoses using a container or cloth.
  1. Release the fuel pressure. Refer to RELEASING OF FUEL PRESSURE .
  2. Disconnect the fuel delivery hose (A) from fuel damper and remove the fuel damper.

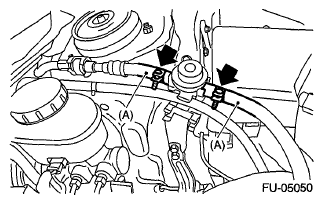

    Fig 1: Locating Fuel Delivery Hose Clamp Mounting Bolts
    G06651391Courtesy of SUBARU OF AMERICA, INC.
