Engine harness assembly diagram 1

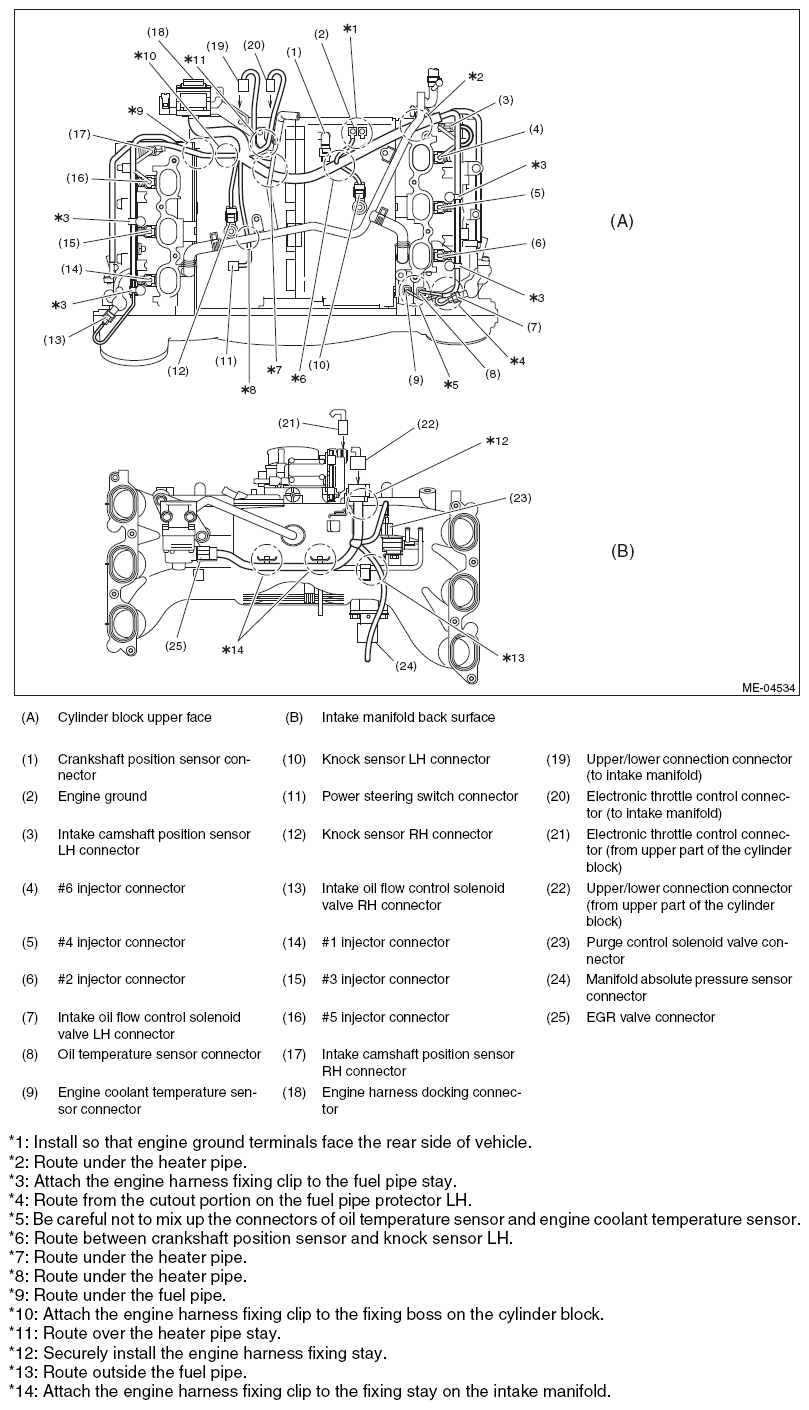

Fig 1: Identifying Engine Harness Assembly And Related Components (Engine Harness Assembly Diagram 1)
G08580887Courtesy of SUBARU OF AMERICA, INC.
