Mass Air Flow and Intake Air Temperature Sensor: Removal

  1. Disconnect the ground cable from battery.
  2. Disconnect the connector (A) from air flow and intake air temperature sensor.

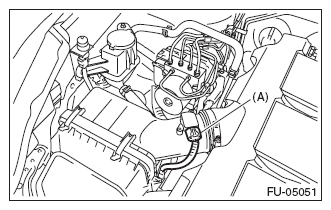

    Fig 1: Identifying Intake Air Temperature Sensor Connector
    G07912327Courtesy of SUBARU OF AMERICA, INC.
  3. Remove the mass air flow and intake air temperature sensor.

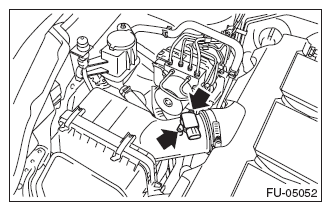

    Fig 2: Locating Mass Air Flow And Intake Air Temperature Sensor Mounting Bolts
    G07912328Courtesy of SUBARU OF AMERICA, INC.
