Intake Side

  1. Remove the collector cover.
    NOTE: Follow the steps below when removing the collector cover.
    1. Pull up the two points at the rear (A).
    2. Pull up the two points at the front (B) while moving them forward.
      Fig 1: Removing Collector Cover
      G06651504Courtesy of SUBARU OF AMERICA, INC.
  2. Disconnect the ground cable from battery.
  3. Disconnect the connector from the intake oil flow control solenoid valve RH.

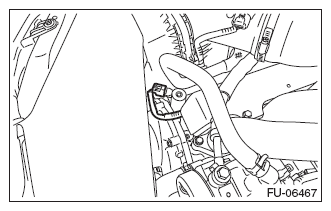

    Fig 2: Locating Intake Oil Flow Control Solenoid Valve RH Connector
    G08581018Courtesy of SUBARU OF AMERICA, INC.
  4. Remove the intake oil flow control solenoid valve RH.

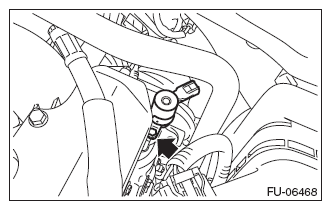

    Fig 3: Locating Intake Oil Flow Control Solenoid Valve RH Mounting Bolt
    G08581019Courtesy of SUBARU OF AMERICA, INC.
  5. Remove the intake oil flow control solenoid valve LH in the same procedure as the intake oil flow control solenoid valve RH.
