Rear Oxygen Sensor: Installation

CAUTION: If lubricant is spilt over the exhaust pipe, wipe it off with cloth to avoid emission of smoke or causing a fire.

Before installing rear oxygen sensor, apply the anti-seize compound only to the threaded portion of rear oxygen sensor to make the next removal easier.
CAUTION: Never apply anti-seize compound to the protector of rear oxygen sensor.

Anti-seize compound:

NEVER-SEEZ NSN, JET LUBE SS-30 or equivalent
Install the rear oxygen sensor.
Tightening torque:

21 N.m (2.1 kgf-m, 15.5 ft-lb)

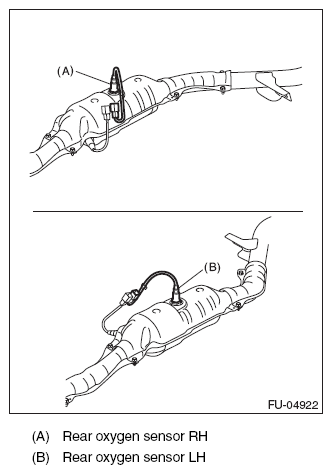

Fig 1: Identifying Rear Oxygen Sensors RH And LH
Courtesy of SUBARU OF AMERICA, INC.
Install the front exhaust pipe. Refer to INSTALLATION .
Lower the vehicle.
Connect the ground cable to battery.
