Rear Oxygen Sensor: Removal

  1. Disconnect the ground cable from battery.
  2. Lift up the vehicle.
  3. Remove the front exhaust pipe. Refer to REMOVAL .
  4. Apply spray-type lubricant to the threaded portion of rear oxygen sensor, and leave it for one minute or more.
  5. Remove the rear oxygen sensor.
    CAUTION: When removing the rear oxygen sensor, wait until exhaust pipe cools, otherwise it will damage the exhaust pipe.

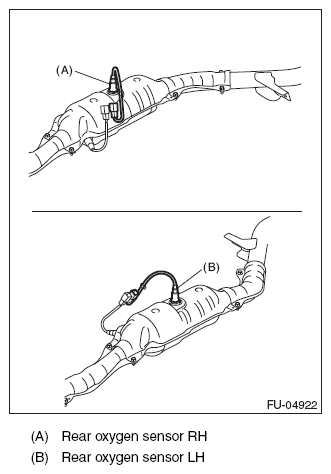

    Fig 1: Identifying Rear Oxygen Sensors RH And LH
    G08581032Courtesy of SUBARU OF AMERICA, INC.
