Throttle Body: Installation

Install in the reverse order of removal.

Tightening torque:

8 N.m (0.8 kgf-m, 5.9 ft-lb)

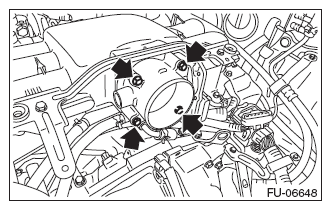

Fig 1: Locating Throttle Body To Intake Manifold Mounting Bolts

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque:

Clamp (A)

3 N.m (0.3 kgf-m, 2.2 ft-lb)

Bolt (B)

6.5 N.m (0.7 kgf-m, 4.8 ft-lb)

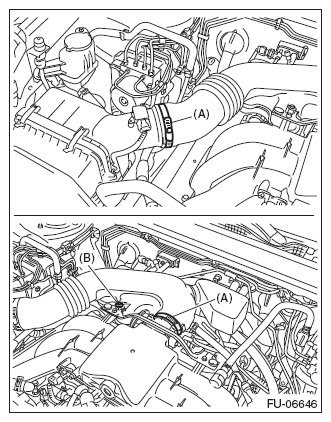

Fig 2: Identifying Air Intake Boot Assembly Clamp And Bolt

Courtesy of SUBARU OF AMERICA, INC.
