LH Side

  1. Remove the collector cover.
    NOTE: Follow the steps below when removing the collector cover.
    1. Pull up the two points at the rear (A).
    2. Pull up the two points at the front (B) while moving them forward.
    Fig 1: Removing Collector Cover (LH Side)
    G06651504Courtesy of SUBARU OF AMERICA, INC.
  2. Remove the battery and battery carrier. Refer to REMOVAL .
  3. Remove the engine harness stay (A).
  4. Disconnect the connector (B) from ignition coil.
    Fig 2: Identifying Ignition Coil Connector And Engine Harness Stay
    G08544518Courtesy of SUBARU OF AMERICA, INC.
  5. Remove the ignition coil.
    NOTE: Turn the #6 ignition coil to remove it.
  6. Remove the spark plug with a spark plug socket.
    Fig 3: Removing Spark Plug Using Spark Plug Socket
    G08544519Courtesy of SUBARU OF AMERICA, INC.

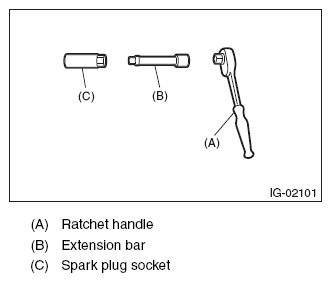

    Fig 4: Identifying Ratchet Handle, Extension Bar And Spark Plug Socket
    G08582886Courtesy of SUBARU OF AMERICA, INC.
