RH Side

  1. Remove the collector cover.
    NOTE: Follow the steps below when removing the collector cover.
    1. Pull up the two points at the rear (A).
    2. Pull up the two points at the front (B) while moving them forward.

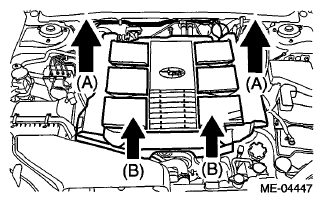

    Fig 1: Removing Collector Cover (RH Side)
    G06649693Courtesy of SUBARU OF AMERICA, INC.
  2. Disconnect the ground cable from battery.
  3. Remove the air cleaner case. Refer to REMOVAL .
  4. Remove the engine harness stay (A).
  5. Disconnect the connector (B) from ignition coil.

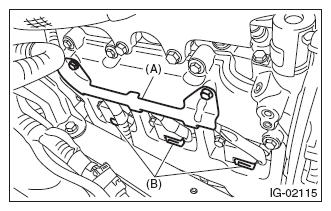

    Fig 2: Identifying Ignition Coil Connector And Engine Harness Stay
    G08582880Courtesy of SUBARU OF AMERICA, INC.
  6. Remove the ignition coil.
    NOTE: Turn the #5 ignition coil to remove it.
  7. Remove the spark plug with a spark plug socket.

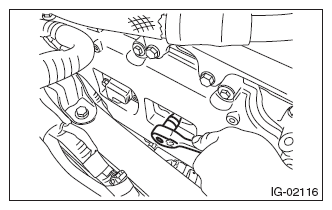

    Fig 3: Removing Spark Plug Using Spark Plug Socket
    G08582881Courtesy of SUBARU OF AMERICA, INC.

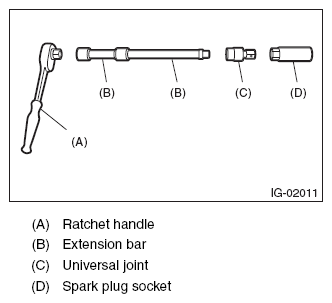

    Fig 4: Identifying Ratchet Handle, Extension Bar, Universal Joint And Spark Plug Socket
    G08582882Courtesy of SUBARU OF AMERICA, INC.
