AT Main Case: Removal

Remove the transmission assembly from the vehicle. Refer to REMOVAL .
Pull out the torque converter assembly. Refer to REMOVAL .
Remove the transmission harness connector from stay.
Remove the ATF cooler inlet pipe and outlet pipe. Refer to REMOVAL .
Remove the extension case. Refer to REMOVAL .
Remove the center differential carrier. Refer to REMOVAL .
Remove the reduction driven gear. Refer to REMOVAL .
Separate the converter case from the transmission case. Refer to REMOVAL .
Remove the control valve body. Refer to REMOVAL .
Remove the oil pump cover. Refer to REMOVAL .
NOTE: The input clutch pack assembly and front sun gear assembly are also removed together.

Fig 1: Separating Converter Case From Transmission Case
Courtesy of SUBARU OF AMERICA, INC.
Remove the needle bearing of the middle carrier assembly.

Fig 2: Identifying Needle Bearing Of Middle Carrier Assembly
Courtesy of SUBARU OF AMERICA, INC.
Remove the middle carrier assembly.

Fig 3: Removing Middle Carrier Assembly
Courtesy of SUBARU OF AMERICA, INC.
Remove the rear carrier assembly.

Fig 4: Removing Rear Carrier Assembly
Courtesy of SUBARU OF AMERICA, INC.
Remove the middle & rear sun gear assembly.

Fig 5: Removing Middle & Rear Sun Gear Assembly
Courtesy of SUBARU OF AMERICA, INC.
Remove the thrust needle bearing of high & low reverse clutch.

Fig 6: Identifying Thrust Needle Bearing Of High & Low Reverse Clutch
Courtesy of SUBARU OF AMERICA, INC.
Remove the high & low reverse clutch assembly.

Fig 7: Removing High & Low Reverse Clutch Assembly
Courtesy of SUBARU OF AMERICA, INC.
Remove the direct clutch assembly.

Fig 8: Removing Direct Clutch Assembly
Courtesy of SUBARU OF AMERICA, INC.
Remove the snap ring of reverse brake.

Fig 9: Identifying Snap Ring Of Reverse Brake
Courtesy of SUBARU OF AMERICA, INC.
Remove the retaining plate.
Remove the leaf spring.

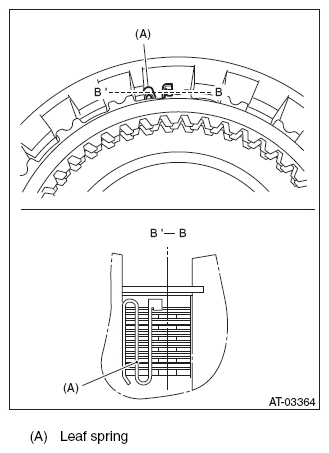

Fig 10: Identifying Leaf Spring
Courtesy of SUBARU OF AMERICA, INC.
Take out the drive plate, driven plate and dish plate.
Remove the snap ring of the reverse brake spring retainer.
ST1 18762AA000 COMPRESSOR SPECIAL TOOL

ST2 18765AA000 COMPRESSOR SUPPORT

ST3 18763AA000 COMPRESSOR SHAFT

Fig 11: Removing Snap Ring Of Reverse Brake Spring Retainer
Courtesy of SUBARU OF AMERICA, INC.
Remove the spring retainer.

Fig 12: Removing Spring Retainer
Courtesy of SUBARU OF AMERICA, INC.
Remove the return spring.

Fig 13: Removing Return Spring
Courtesy of SUBARU OF AMERICA, INC.
Apply compressed air.

Fig 14: Applying Compressed Air
Courtesy of SUBARU OF AMERICA, INC.
Remove the reverse brake piston.

Fig 15: Removing Reverse Brake Piston
Courtesy of SUBARU OF AMERICA, INC.
Remove the thrust bearing and seal ring.

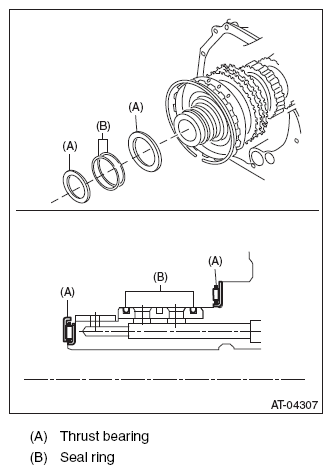

Fig 16: Identifying Thrust Bearing And Seal Ring
Courtesy of SUBARU OF AMERICA, INC.
