Center Differential Carrier: Disassembly

Remove the seal ring.

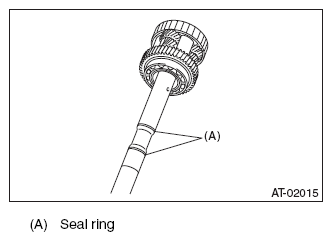

Fig 1: Identifying Seal Ring
Courtesy of SUBARU OF AMERICA, INC.
Remove the ball bearing using the ST and the press.
ST 498077600 REMOVER

Fig 2: Removing Ball Bearing Using ST And Press
Courtesy of SUBARU OF AMERICA, INC.
Remove the snap ring, and pull out the pinion shaft from center differential assembly.

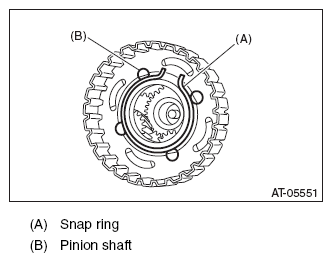

Fig 3: Identifying Snap Ring And Pinion Shaft
Courtesy of SUBARU OF AMERICA, INC.
Remove the pinion gear and washers from center differential assembly.

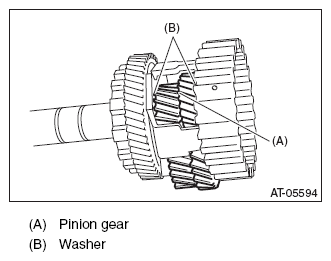

Fig 4: Identifying Pinion Gear And Washer
Courtesy of SUBARU OF AMERICA, INC.
Pull out the intermediate shaft and thrust bearing.
