Front Differential Assembly: Installation

  1. When installing the front differential assembly to the case, be careful not to damage the inside of case (particularly, the differential side retainer mating surface).

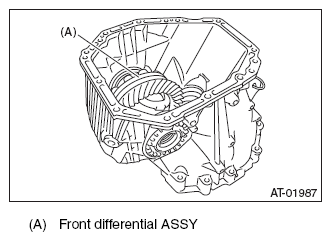

    Fig 1: Identifying Front Differential Assy
    G08579362Courtesy of SUBARU OF AMERICA, INC.
  2. Install the O-ring to left and right side retainers.
    NOTE: Use new O-rings.
  3. Using the ST, install the side retainer. Refer to ADJUSTMENT .

    ST 18630AA010 WRENCH COMPL RETAINER

  4. Adjust the backlash of the front differential. Refer to ADJUSTMENT .
  5. Install the lock plate.

    Tightening torque:

    25 N.m (2.5 kgf-m, 18.4 ft-lb)

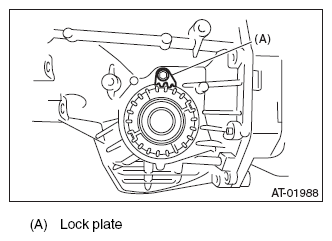

    Fig 2: Identifying Lock Plate
    G08579363Courtesy of SUBARU OF AMERICA, INC.
  6. Install the converter case to the transmission case. Refer to INSTALLATION .
  7. Install the transmission harness connector to the stay.
  8. Install the ATF cooler pipe. Refer to INSTALLATION .
  9. Install the torque converter assembly. Refer to INSTALLATION .
  10. Install the transmission assembly to the vehicle. Refer to INSTALLATION .
