Rear Drive Shaft: Disassembly

Using a press, remove the revolution gear.

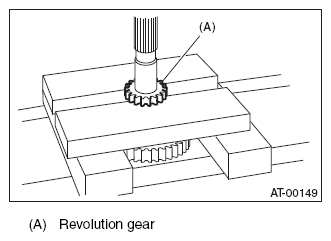

Fig 1: Removing Revolution Gear Using Press
Courtesy of SUBARU OF AMERICA, INC.
Using a press, remove the front and rear side ball bearings and clutch hub.

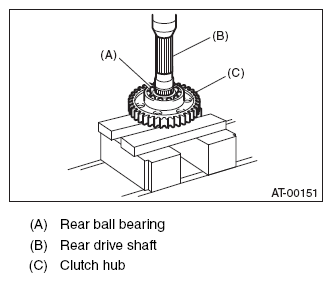

Fig 2: Removing Front And Rear Side Ball Bearings And Clutch Hub Using Press
Courtesy of SUBARU OF AMERICA, INC.
