Reduction Driven Gear: Disassembly

Remove the ball bearing from reduction driven gear using ST.
ST 498077300 REMOVER

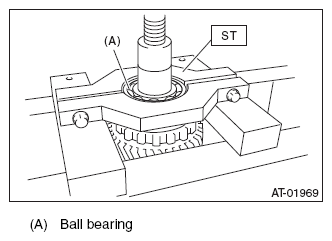

Fig 1: Removing Ball Bearing From Reduction Driven Gear Using ST
Courtesy of SUBARU OF AMERICA, INC.
Remove the ball bearing on the reverse side with the same procedure as step 1).
ST 498077300 REMOVER

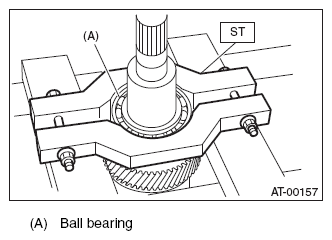

Fig 2: Removing Ball Bearing On Reverse Side
Courtesy of SUBARU OF AMERICA, INC.
Remove the snap ring of the parking gear.

Fig 3: Identifying Snap Ring Of Parking Gear
Courtesy of SUBARU OF AMERICA, INC.
Using the ST, remove the parking gear.
ST 18767AA000 REMOVER

Fig 4: Removing Parking Gear Using ST
Courtesy of SUBARU OF AMERICA, INC.
