Transmission Control Module (TCM): Removal

  1. Disconnect the ground cable from battery.
  2. Remove the instrument panel lower cover. Refer to REMOVAL .
  3. Disconnect the connector from TCM.

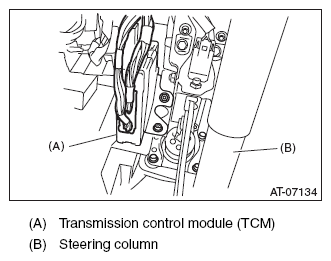

    Fig 1: Identifying Transmission Control Module (TCM) And Steering Column
    G08579256Courtesy of SUBARU OF AMERICA, INC.
  4. Remove the TCM.
    NOTE: Replace the TCM and bracket as a set.
