Turbine Speed Sensor 1: Installation

  1. Install the turbine speed sensor 1.
    NOTE: Use new O-rings.

    Tightening torque:

    7 N.m (0.7 kgf-m, 5.2 ft-lb)

  2. Connect the turbine speed sensor 1 connector.

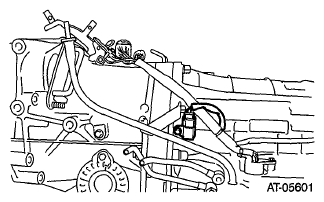

    Fig 1: Identifying Turbine Speed Sensor 1 Connector
    G06652012Courtesy of SUBARU OF AMERICA, INC.
  3. Install the front exhaust pipe. Refer to INSTALLATION .
  4. Lower the vehicle.
  5. Connect the battery ground terminal.
