Main Relay

  1. Disconnect the ground cable from battery.
  2. Remove the passenger's front door scuff plate. < Ref. to FRONT DOOR SCUFF PLATE , REMOVAL, Side Trim. >
  3. Remove the front pillar lower trim. < Ref. to FRONT PILLAR LOWER TRIM , REMOVAL, Side Trim. >
  4. Remove the main relay from the relay holder.

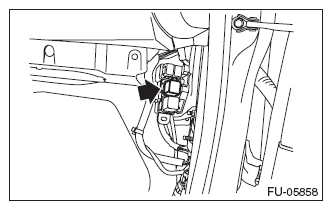

    Fig 1: Locating Main Relay
    G07924511Courtesy of SUBARU OF AMERICA, INC.
