General Information: V-belt: Inspection

Replace the belts if cracks, fraying or wear are found.
Make sure that the V-belt automatic belt tension indicator (A) is within the range of its use limit (D).

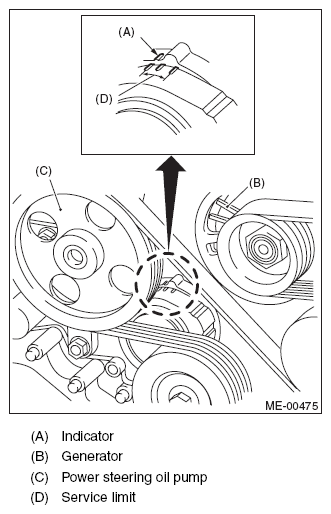

Fig 1: Identifying V-Belt Automatic Belt Tension Indicator With Limit
Courtesy of SUBARU OF AMERICA, INC.
