Select Cable: Installation

Position the select cable as shown in the figure, and install it to the plate assembly.
CAUTION:
- If the cable is installed in the wrong direction, loosen the bracket bolts, and then reinstall the cable in the correct direction.
- Do not forcibly turn the cable (wire side) to align the direction correctly.
Tightening torque:

T: 18 N.m (1.8 kgf-m, 13.3 ft-lb)

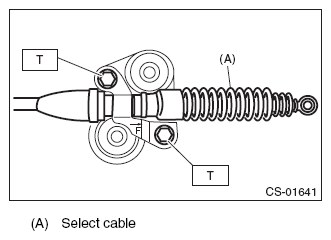

Fig 1: Identifying Select Cable Setting Position
Courtesy of SUBARU OF AMERICA, INC.
Install the select cable to range select lever.
Install the plate assembly to transmission.
Tightening torque:

24.5 N.m (2.5 kgf-m, 18.1 ft-lb)

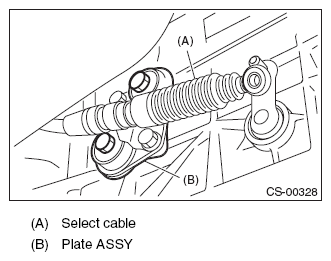

Fig 2: Identifying Plate ASSY And Select Cable
Courtesy of SUBARU OF AMERICA, INC.
Install the washer and snap pin to range select lever.

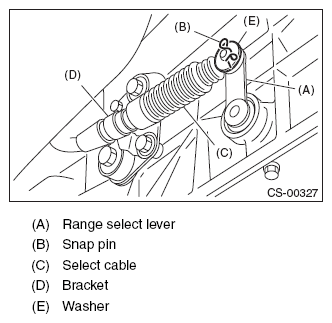

Fig 3: Identifying Range Select Lever, Snap Pin, Select Cable, Bracket And Washer
Courtesy of SUBARU OF AMERICA, INC.
Install new clamp paying attention to the installing direction.

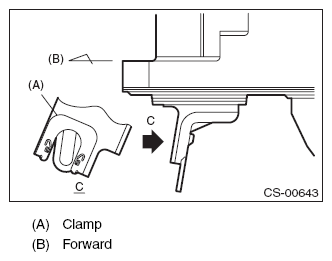

Fig 4: Installing Clamp
Courtesy of SUBARU OF AMERICA, INC.
Insert the tip of inner cable into connector hole of select lever, and fix the cable to bracket.

Fig 5: Fixing Cable To Bracket
Courtesy of SUBARU OF AMERICA, INC.
Shift the select lever to the "N" range, and then adjust the select cable position. < Ref. to ADJUSTMENT , Select Cable. >
Install the heat shield cover.
Install the front and rear exhaust pipes and the muffler. < Ref. to INSTALLATION , Front Exhaust Pipe. > < Ref. to INSTALLATION , Rear Exhaust Pipe. > < Ref. to INSTALLATION , Muffler. >
