Unit Inspection

  1. Inspect the battery current sensor assembly.
    1. Resistance check (Battery current sensor assembly).
      1. Measure the resistance between the terminals.
      RESISTANCE

      Inspection terminals Tester positive - Tester negative Inspection conditions Standard value
      1(VIN) - 3(GND) Always 3 - 10 kΩ
      1(VIN) - 4(VOUT) Always 0.5 kΩ or less
      3(GND) - 4(VOUT) Always 3 - 10 kΩ

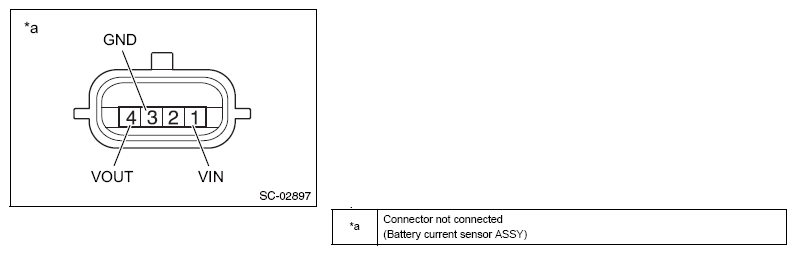

      Fig 1: Identifying Battery Current Sensor Assembly Terminals
      G08557367Courtesy of SUBARU OF AMERICA, INC.
    2. Resistance check (Battery thermometer sensor).
      1. Measure the resistance between the terminals.
      RESISTANCE

      Inspection terminals Inspection conditions Standard value
      2(TEMP) - 3(GND) 20 - 30°C {68 - 86°F} 1.5 - 2.6 kΩ

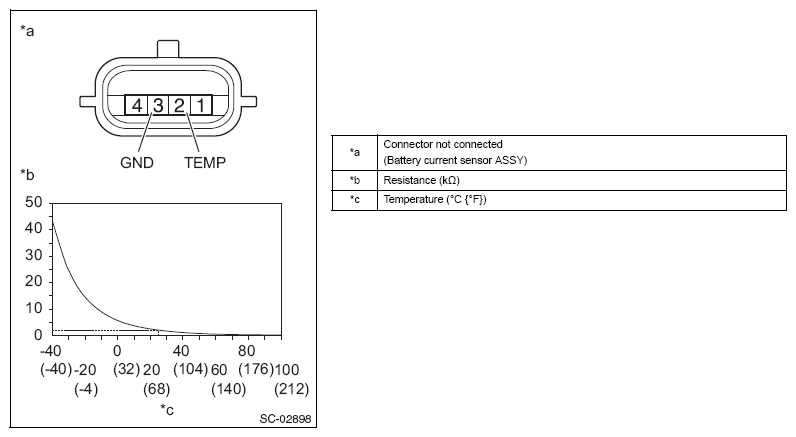

      Fig 2: Identifying Battery Thermometer Sensor Resistance Versus Temperature Graph
      G08557368Courtesy of SUBARU OF AMERICA, INC.
      NOTE: The standard value expresses the temperature of the sensor surroundings, rather than the temperature of the temperature sensor unit.
