Circuit Figure

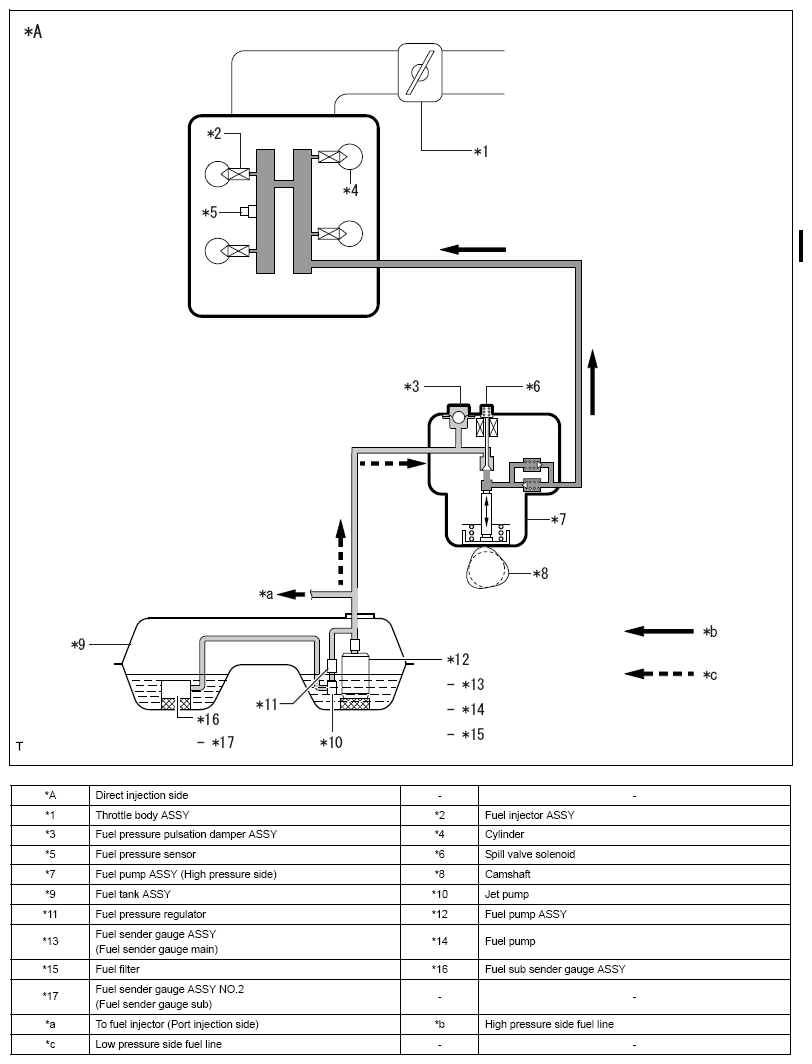

Fig 1: Fuel System - Circuit Diagram (1 Of 3)

G08552513

Courtesy of SUBARU OF AMERICA, INC.

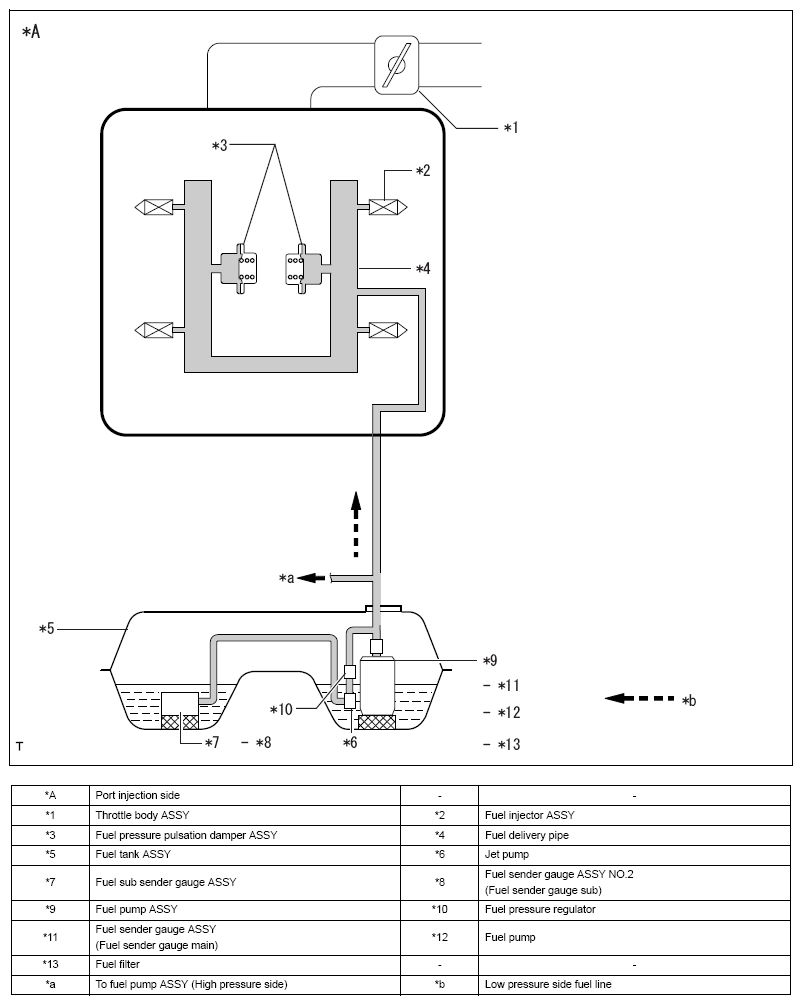

Fig 2: Fuel System - Circuit Diagram (2 Of 3)

G08552514

Courtesy of SUBARU OF AMERICA, INC.

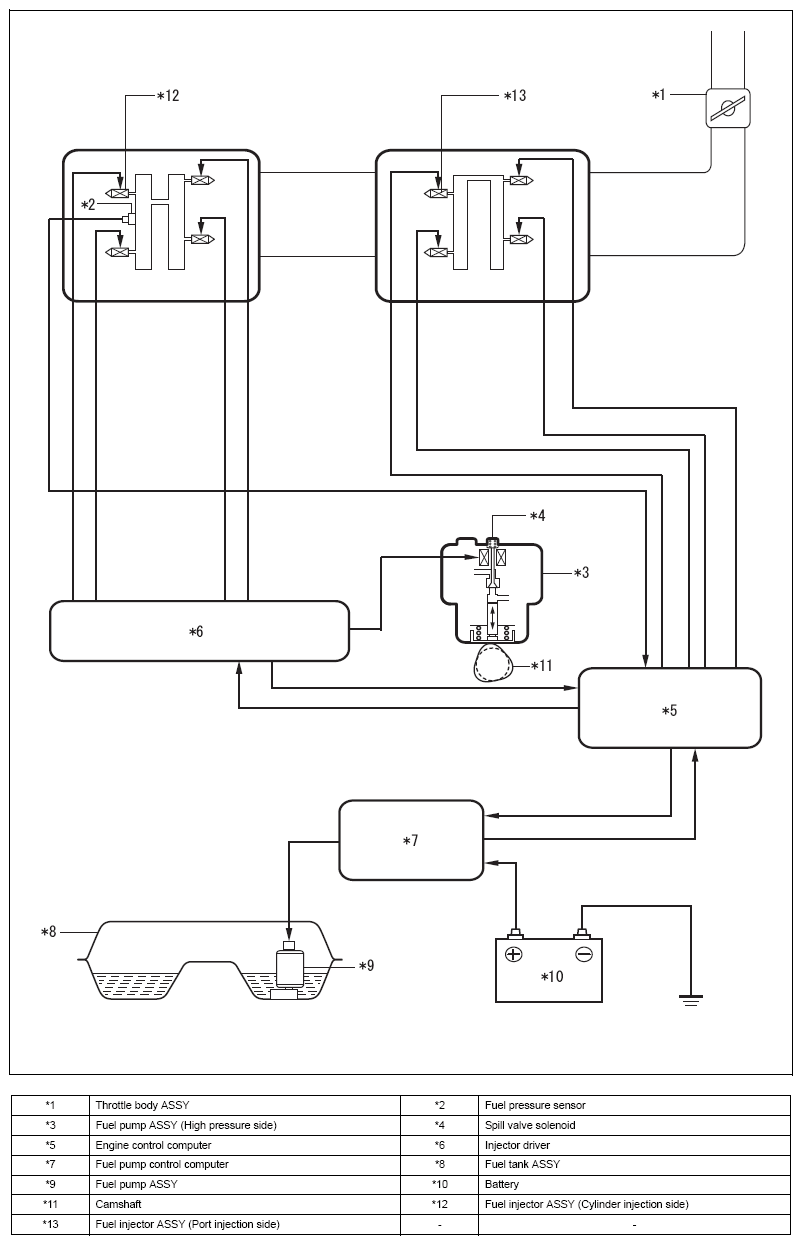

Fig 3: Fuel System - Circuit Diagram (3 Of 3)

G08552515

Courtesy of SUBARU OF AMERICA, INC.

Fuel injector assembly (Cylinder injection side)

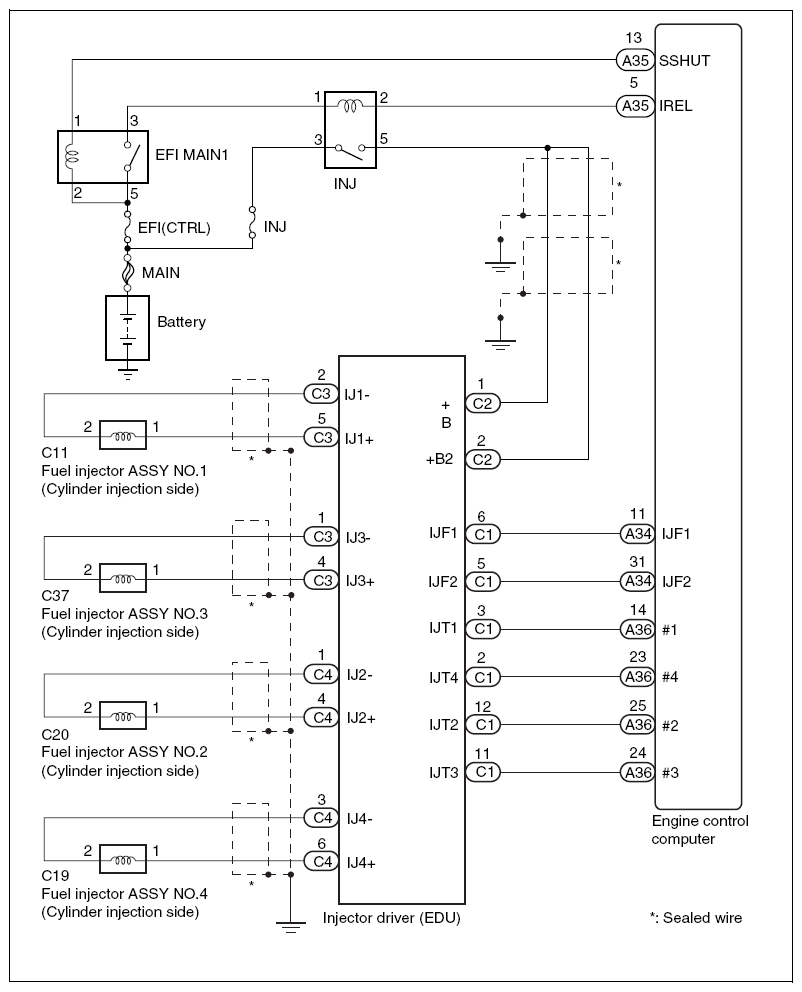

Fig 4: Fuel Injector Assembly (Cylinder Injection Side) - Circuit Diagram (1 Of 2)
Courtesy of SUBARU OF AMERICA, INC.

Fig 5: Fuel Injector Assembly (Cylinder Injection Side) - Circuit Diagram (2 Of 2)
Courtesy of SUBARU OF AMERICA, INC.
Fuel injector assembly (Port injection side)

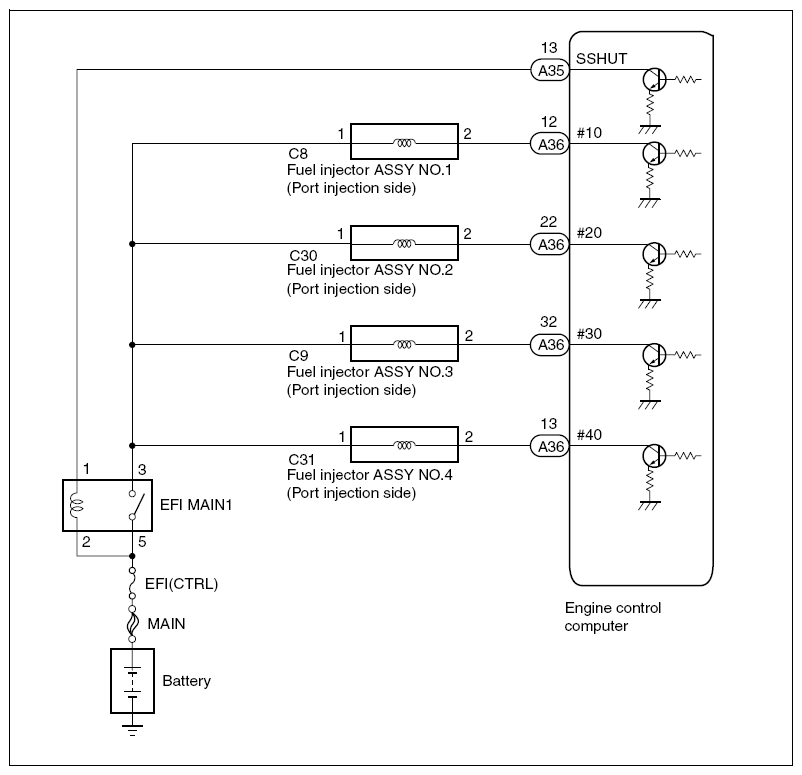

Fig 6: Fuel Injector Assembly (Port Injection Side) - Circuit Diagram (1 Of 2)
Courtesy of SUBARU OF AMERICA, INC.

Fig 7: Fuel Injector Assembly (Port Injection Side) - Circuit Diagram (2 Of 2)
Courtesy of SUBARU OF AMERICA, INC.
