Unit Inspection

  1. Fuel injector assembly check
    CAUTION: This procedure must be used only when judging short circuit and open circuit. It cannot be used for judging defective operation.
    1. Resistance check
      1. Measure the resistance between the terminals.
      RESISTANCE

      Inspection terminals Inspection conditions Standard value
      1 - 2 20°C {68°F} 1.9 Ω

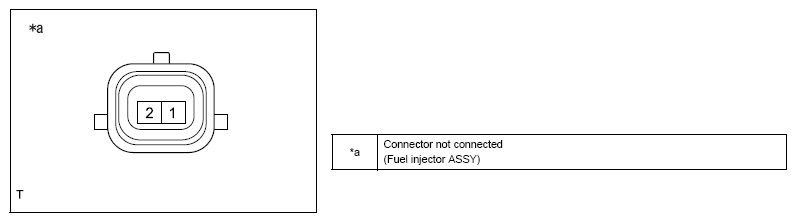

      Fig 1: Identifying Fuel Injector Assembly Connector Terminals
      G08552565Courtesy of SUBARU OF AMERICA, INC.
