Fuel Pump Assembly (FA20/High Fuel Pressure): Removal

Intake manifold removal
(Refer to DISASSEMBLY )
Fuel delivery pipe NO. 2 removal (Refer to REMOVAL )
Fuel delivery pipe sub-assembly disconnection
1. Remove the union bolt and gasket to disconnect the fuel delivery pipe sub-assembly.

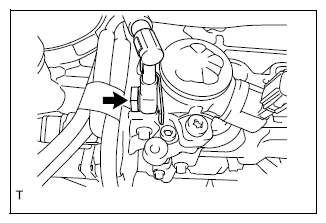

  Fig 1: Locating Fuel Delivery Pipe Sub-Assembly Union Bolt
  Courtesy of SUBARU OF AMERICA, INC.
Fuel pump assembly removal
1. Remove the two bolts with a TORX PLUS socket wrench 40IP to remove the fuel pump assembly.

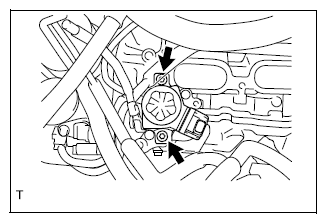

  Fig 2: Locating Fuel Pump Assembly Mounting Bolts
  Courtesy of SUBARU OF AMERICA, INC.
Valve lifter removal
1. Remove the valve lifter from the pump drive case assembly.

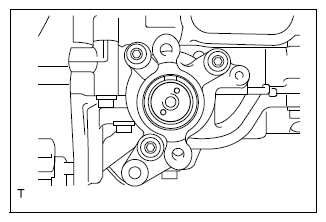

  Fig 3: Identifying Pump Drive Case Assembly Valve Lifter
  Courtesy of SUBARU OF AMERICA, INC.
Pump drive case assembly removal
1. Remove the three bolts and remove the pump drive case assembly.

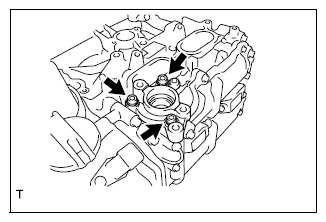

  Fig 4: Identifying Pump Drive Case Assembly Mounting Bolts
  Courtesy of SUBARU OF AMERICA, INC.
