Fuel Tank Assembly (FA20): Removal

Fuel spill prevention procedure (Refer to PRECAUTIONS )
Fuel draining (Refer to REMOVAL )
Disconnection of the battery ground terminal (Refer to WORKING PRECAUTIONS AND NOTES )
Separate type rear seat cushion assembly RH removal (Refer to REMOVAL )
Separate type rear seat cushion assembly LH removal (Refer to REMOVAL )
Rear floor service hole cover removal
1. Push in the grommet to remove the grommet from the rear floor service hole cover.
2. Remove the butyl tape and remove the rear floor service hole cover.

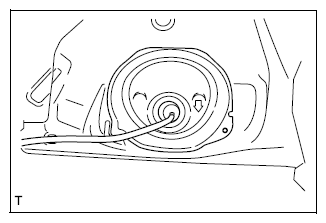

  Fig 1: Identifying Rear Floor Service Hole Cover
  Courtesy of SUBARU OF AMERICA, INC.
3. Disconnect the fuel sub sender gauge connector.

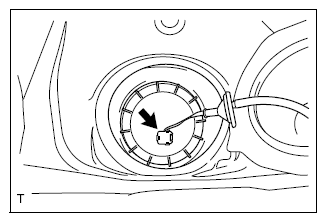

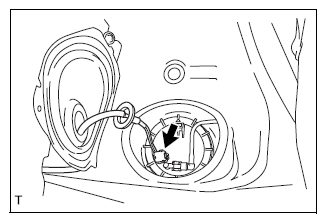

  Fig 2: Locating Fuel Sub Sender Gauge Connector
  Courtesy of SUBARU OF AMERICA, INC.
Rear floor service hole cover NO. 2 removal
1. Push in the grommet to remove the grommet from the rear floor service hole cover NO. 2.
2. Remove the butyl tape and remove the rear floor service hole cover NO. 2.

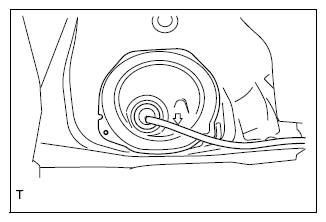

  Fig 3: Identifying Rear Floor Service Hole Cover No. 2
  Courtesy of SUBARU OF AMERICA, INC.
3. Disconnect the fuel pump connector.

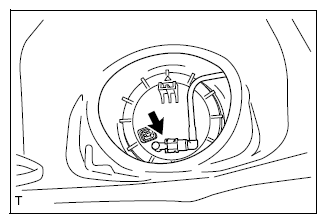

  Fig 4: Locating Fuel Pump Connector
  Courtesy of SUBARU OF AMERICA, INC.
4. Disconnect the fuel delivery tube. (Refer to PRECAUTIONS )
  CAUTION: Be careful not to spill fuel.

  Fig 5: Locating Fuel Delivery Tube
  Courtesy of SUBARU OF AMERICA, INC.
Removal of rear suspension member SUB-assembly
(Refer to REMOVAL )
Fuel tank protector removal
1. Remove the nut and two clips and remove the fuel tank protector.

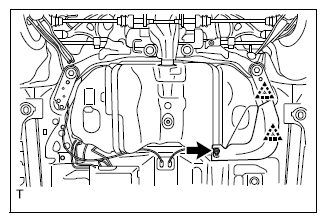

  Fig 6: Locating Fuel Tank Protector Nut
  Courtesy of SUBARU OF AMERICA, INC.
Parking brake cable assembly NO. 3 removal (Refer to INSTALLATION )
Parking brake cable assembly NO. 2 removal (Refer to PARKING BRAKE assembly )
DISCONNECT FUEL TANK TO FILLER PIPE HOSE
1. Loosen the hose clamp bolt and disconnect the fuel tank to filler pipe hose.

  Fig 7: Locating Fuel Tank To Filler Pipe Hose Clamp Bolt
  Courtesy of SUBARU OF AMERICA, INC.
DISCONNECT FUEL TANK VENT HOSE SUBASSEMBLY
1. Remove the clamp and disconnect the fuel tank vent hose subassembly.
2. Disengage the clamp and separate the tube.

  Fig 8: Locating Fuel Tank Vent Hose Subassembly Clamp
  Courtesy of SUBARU OF AMERICA, INC.
SEPARATE CHARCOAL CANISTER ASSEMBLY
1. Disconnect the fuel tank vent tube as indicated by the arrows in the order shown in the illustration.

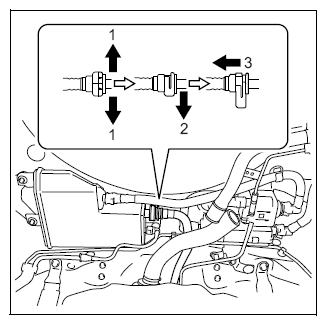

  Fig 9: Identifying Disconnecting Sequence Of Fuel Tank Vent Tube
  Courtesy of SUBARU OF AMERICA, INC.
Fuel tank assembly removal
CAUTION:
- Two persons are required to perform this procedure.
- The fuel may remain in the fuel tank and this may cause the left and right sides to be unbalanced. Be careful not to let the fuel tank assembly fall off.
1. Hold the fuel tank with the transmission jack.
2. Remove the four bolts and remove the fuel tank band NO. 1.

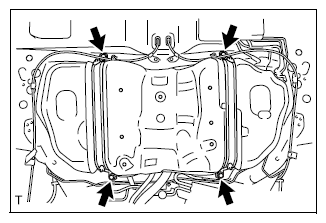

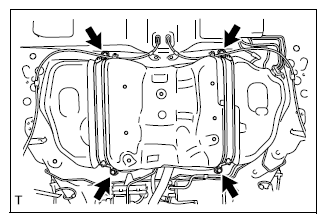

  Fig 10: Locating Fuel Tank Band No. 1 Mounting Bolts
  Courtesy of SUBARU OF AMERICA, INC.
3. Lower the transmission jack to remove the fuel tank assembly.
REMOVE FUEL TANK TO FILLER PIPE HOSE
1. Loosen the hose clamp bolt and remove the fuel tank to filler pipe hose from the fuel tank.

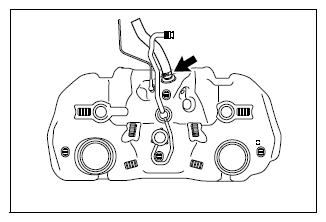

  Fig 11: Locating Fuel Tank To Filler Pipe Hose Clamp Bolt
  Courtesy of SUBARU OF AMERICA, INC.
