Identification Number & Label Locations

The V.I.N. (Vehicle Identification Numbers) is used to classify the vehicle.

• Positioning of the plate label for identification
  Fig 1: Identification Vehicle Identification Number & Label Locations

  Courtesy of SUBARU OF AMERICA, INC.
• Engine
  Fig 2: Identifying Engine Serial Number And Engine Type (Casting) Crankcase Upper Side

  Courtesy of SUBARU OF AMERICA, INC.
• Automatic transmission

  5AT

  Fig 3: Identifying Automatic Transmission Identification Number And Label Locations (5AT)

  Courtesy of SUBARU OF AMERICA, INC.

  CVT

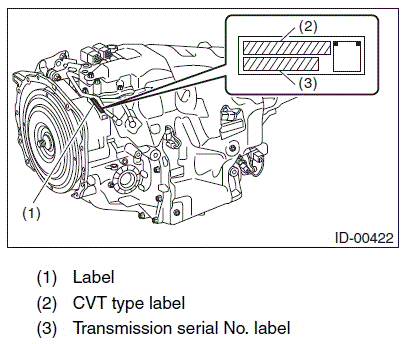

  Fig 4: Identifying Automatic Transmission Identification Number And Label Locations (CVT)

  Courtesy of SUBARU OF AMERICA, INC.
• Manual transmission

  6MT

  Fig 5: Identifying Transmission Serial No. And MT Type Label (6MT)

  Courtesy of SUBARU OF AMERICA, INC.
• Rear differential

  T-type

  Fig 6: Identifying Rear Differential Identification (T-Type)

  Courtesy of SUBARU OF AMERICA, INC.

  VA1-type

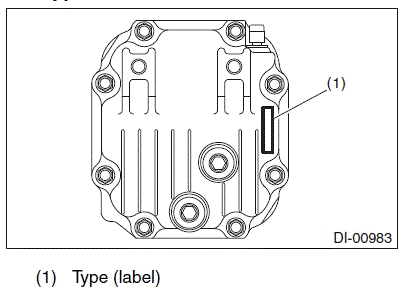

  Fig 7: Identifying Rear Differential Identification (VA1-Type)

  Courtesy of SUBARU OF AMERICA, INC.

  VA2-type

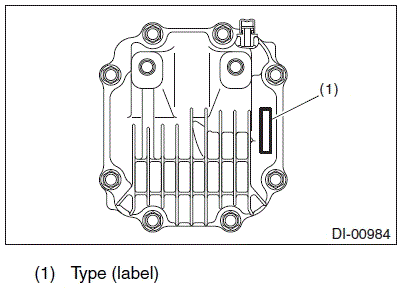

  Fig 8: Identifying Rear Differential Identification (VA2-Type)

  Courtesy of SUBARU OF AMERICA, INC.
• FMVSS LABEL, CMVSS LABEL

  Example (FMVSS label)

  Fig 9: Identifying FMVSS And CMVSS Labels

  Courtesy of SUBARU OF AMERICA, INC.
• Model number label
  Fig 10: Identifying Model Number Label

  Courtesy of SUBARU OF AMERICA, INC.
