Conditions For Abs Sequence Control

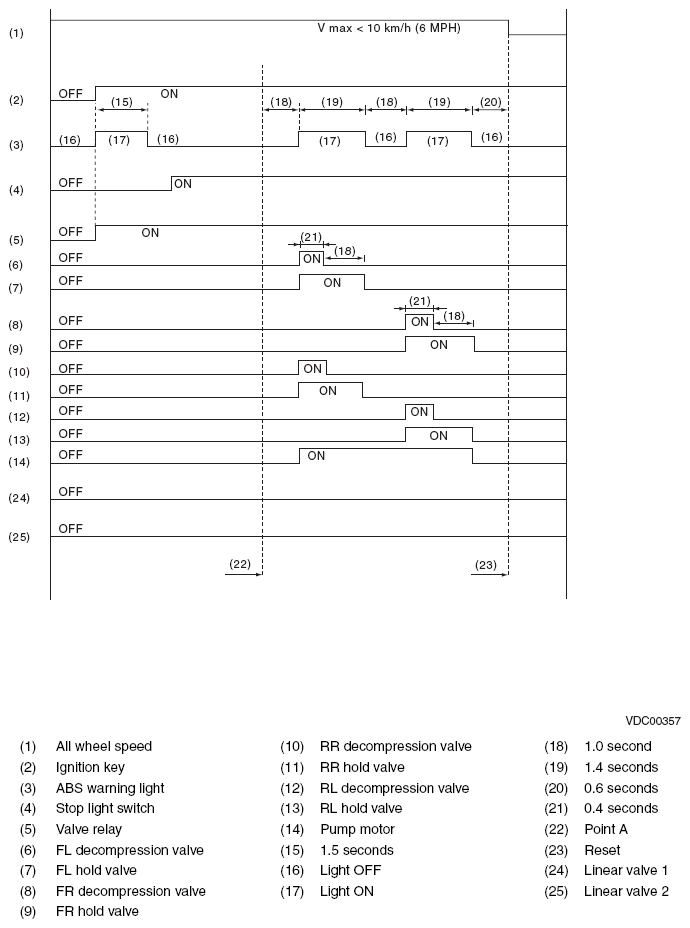

Fig 1: ABS Sequence Control Condition Pattern
G08545709Courtesy of SUBARU OF AMERICA, INC.
NOTE: The control operation starts from point A.
