Oil Pressure Switch: Installation

Apply liquid gasket to the oil pressure switch threads.
Liquid gasket:

THREE BOND 1324 (Part No. 004403042) or equivalent

Fig 1: Identifying Oil Pressure Switch Threads Liquid Gasket Applying Area
Courtesy of SUBARU OF AMERICA, INC.
Install the oil pressure switch.
Tightening torque:

25 N.m (2.5 kgf-m, 18.4 ft-lb)

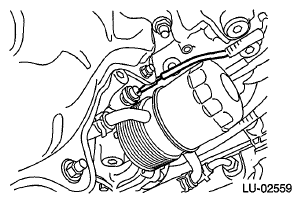

Fig 2: Identifying Oil Pressure Switch
Courtesy of SUBARU OF AMERICA, INC.
Connect the terminal of the oil pressure switch.

Fig 3: Identifying Oil Pressure Switch Terminal
Courtesy of SUBARU OF AMERICA, INC.
Install the under cover. < Ref. to INSTALLATION , Front Under Cover. >
Refill the engine oil. < Ref. to REPLACEMENT , Engine Oil. >
Check the engine oil level. < Ref. to INSPECTION , Engine Oil. >
